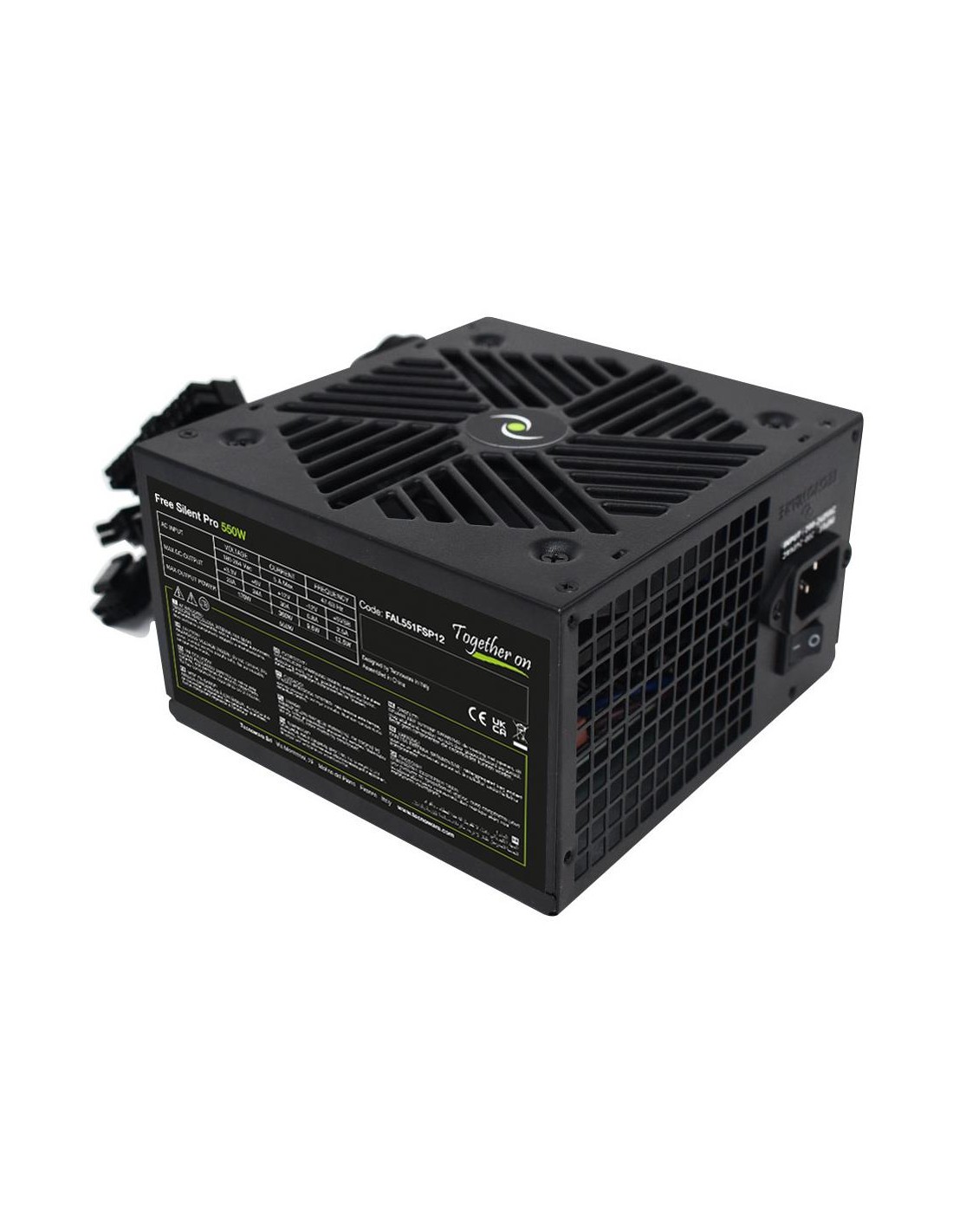

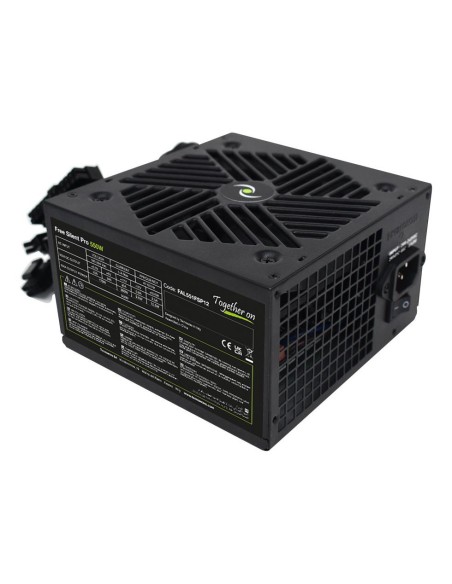

Power Supply|TECNOWARE|FAL551FSP12|ATX|550 W|FAL551FSP12
TECNOWARE
FAL551FSP12
Yra sandėlyje
23,61 €
550 W | ATX | Fan diameter 120 mm | Weight 0.8kg | FAL551FSP12
Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
- Garantija
- 24
- Category Code
- PSU
- Model name
- FAL551FSP12
- Vendor Homepage
- https://www.tecnoware.com/en-US/Dettaglio/Articolo/883
- Unit Box Height
- 0.1
- Unit Box Length
- 0.2
- Unit Box Width
- 0.16
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.0032 cubm
- Unit Calculated Weight
- 1 kg
- CnCode
- 85044095
- Summary
- Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power s
- Weight & dimensions (Depth)
- 150 mm
- Weight & dimensions (Height)
- 86 mm
- Weight & dimensions (Weight)
- 1000 g
- Weight & dimensions (Width)
- 140 mm
- Packaging data (Package type)
- Box
- Design (On/off switch)
- Yes
- Design (Product colour)
- Black
- Power (AC input frequency)
- 47 - 63 Hz
- Power (AC input voltage)
- 180 - 264 V
- Certificates (Compliance certificates)
- CE/RoHS
- Operational conditions (Operating temperature (T-T))
- 0 - 40 C
- Operational conditions (Storage temperature (T-T))
- -15 - 40 C
- Power (Input current)
- 5 A
- Power (Max output current (+12V))
- 30 A
- Power (Max output current (+3.3V))
- 23 A
- Power (Max output current (+5V))
- 24 A
- Power (Max output current (+5Vsb))
- 2.5 A
- Power (Max output current (-12V))
- 0.8 A
- Power (Power factor)
- 0.9
- Power (Power protection features)
- Overload/Short circuit/Surge protection
- Power (Total power)
- 550 W
- Ports & interfaces (Cabling type)
- Non-Modular
- Ports & interfaces (CPU power cable length)
- 550 mm
- Ports & interfaces (CPU power connector (4+4 pin))
- Yes
- Ports & interfaces (Motherboard power cable length)
- 500 mm
- Ports & interfaces (Motherboard power connector)
- 20+4 pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 4
- Ports & interfaces (PCI Express power connectors (6+2 pin))
- 1
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 2
- Performance (80 PLUS certification)
- No
- Performance (ATX version)
- 2.31
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (Fan diameter)
- 120 mm
- Design (Number of fans)
- 1 fan(s)
- Power (Combined power (+12V))
- 360 W
- Power (Combined power (+3.3V))
- 170 W
- Power (Combined power (+5V))
- 170 W
- Power (Combined power (+5Vsb))
- 12.5 W
- Power (Combined power (-12V))
- 9.6 W
- Power (Efficiency)
- 85 %
- Power (Power Factor Correction (PFC) type)
- Active
- Ports & interfaces (ATX power connector (20+4 pin))
- Yes
- Ports & interfaces (PCI Express power cable length)
- 500 mm
8026475183408
