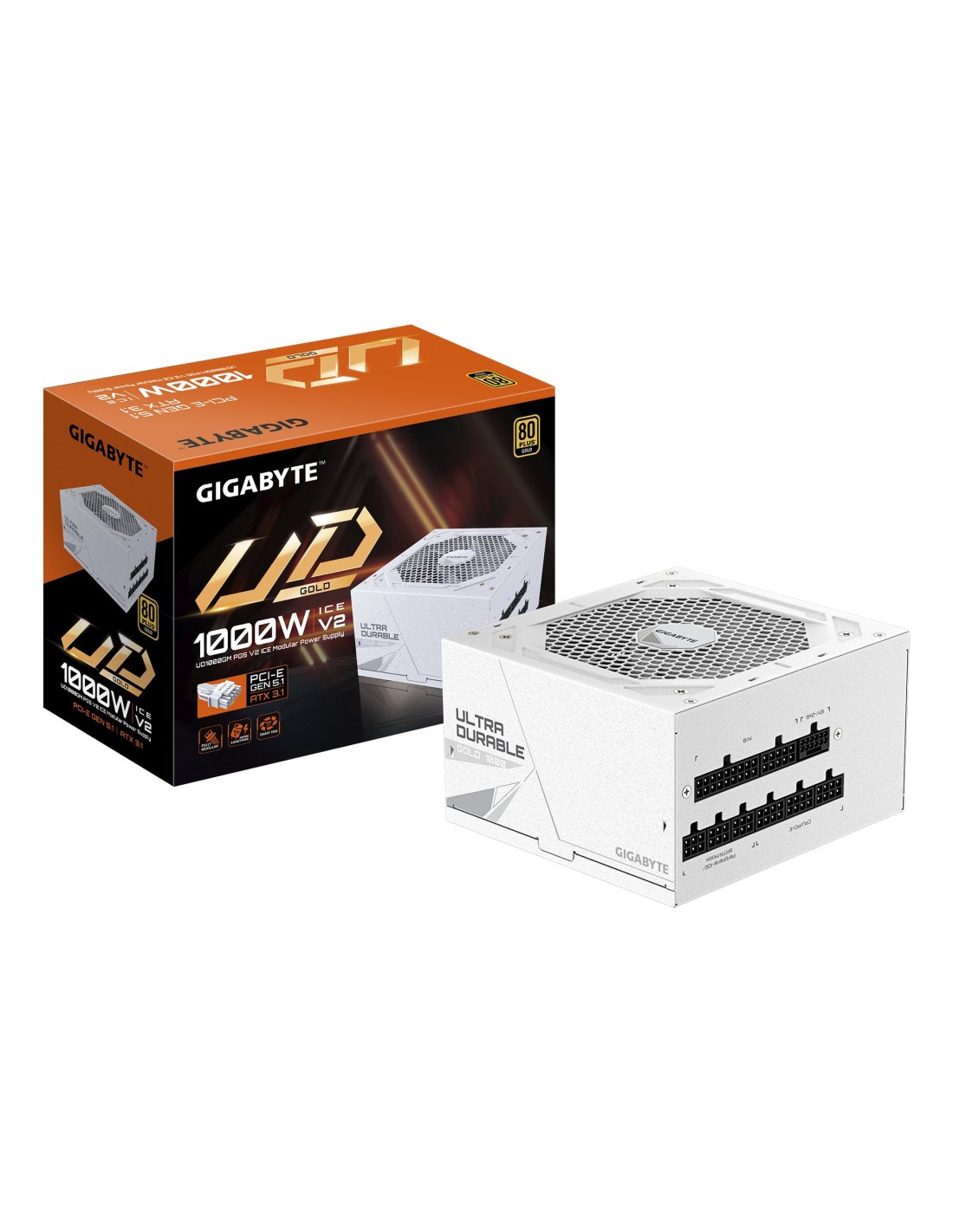

Power Supply|GIGABYTE|UD1000GM PG5 ICE|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD1000GMPG5ICE

Nauja

Power Supply|GIGABYTE|UD1000GM PG5 ICE|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-UD1000GMPG5ICE

Kodas GP-UD1000GM PG5 ICE

Yra sandėlyje

115,15 €

Aprašymas
Prekės aprašymas

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection

Garantija: 36
Category Code: PSU
Model name: UD1000GM PG5 ICE
Vendor Homepage: https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-ICE kf
Unit Box Height: 0.215
Unit Box Length: 0.12
Unit Box Width: 0.26
Units per Shipping Box: 5
Unit Calculated Volume: 0.007812 cubm
Unit Calculated Weight: 2.72 kg
CnCode: 85044095
Summary: GIGABYTE UD1000GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 p
Weight & dimensions (Depth): 140 mm
Weight & dimensions (Height): 86 mm
Weight & dimensions (Weight): 2480 g
Weight & dimensions (Width): 150 mm
Packaging data (Package depth): 269 mm
Packaging data (Package height): 211 mm
Packaging data (Package weight): 2640 g
Packaging data (Package width): 618 mm
Packaging data (Package type): Box
Design (On/off switch): Yes
Design (Product colour): White
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Input current): 15 - 6.5 A
Power (Max output current (+12V)): 83.3 A
Power (Max output current (+3.3V)): 25 A
Power (Max output current (+5V)): 25 A
Power (Max output current (+5Vsb)): 3 A
Power (Max output current (-12V)): 0.3 A
Power (Power factor): 0.9
Power (Power protection features): Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power): 1000 W
Ports & interfaces (Cabling type): Fully-Modular
Ports & interfaces (CPU power cable length): 650 mm
Ports & interfaces (CPU power connector (4+4 pin)): Yes
Ports & interfaces (Motherboard power cable length): 610 mm
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 8
Ports & interfaces (PCI Express power connectors (12+4 pin) cable length): 700 mm
Ports & interfaces (PCI Express power connectors (6+2 pin)): 4
Ports & interfaces (Peripheral (Molex) power connectors (4-pin)): 3
Performance (80 PLUS certification): 80 PLUS Gold
Performance (ATX version): 3.1
Performance (Bearing technology): HYB
Performance (Mean time between failures (MTBF)): 100000 h
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Design (Cooling type): Active
Design (Fan diameter): 120 mm
Design (Number of fans): 1 fan(s)
Power (Combined power (+12V)): 1000 W
Power (Combined power (+3.3V)): 125 W
Power (Combined power (+5V)): 125 W
Power (Combined power (+5Vsb)): 15 W
Power (Combined power (-12V)): 3.6 W
Logistics data (Warranty period): 10 year(s)
Power (Efficiency): 90 %
Power (Power Factor Correction (PFC) type): Active
Ports & interfaces (PCI Express power cable length): 600 mm
Ports & interfaces (PCI Express power connectors (12+4 pin)): 1
Ports & interfaces (PCI Express connector): Yes
Power (Hold time): 16 ms
Ports & interfaces (Floppy drive power connector): 1
Ports & interfaces (Number of EPS connectors): 2

ean13 4719331556594
