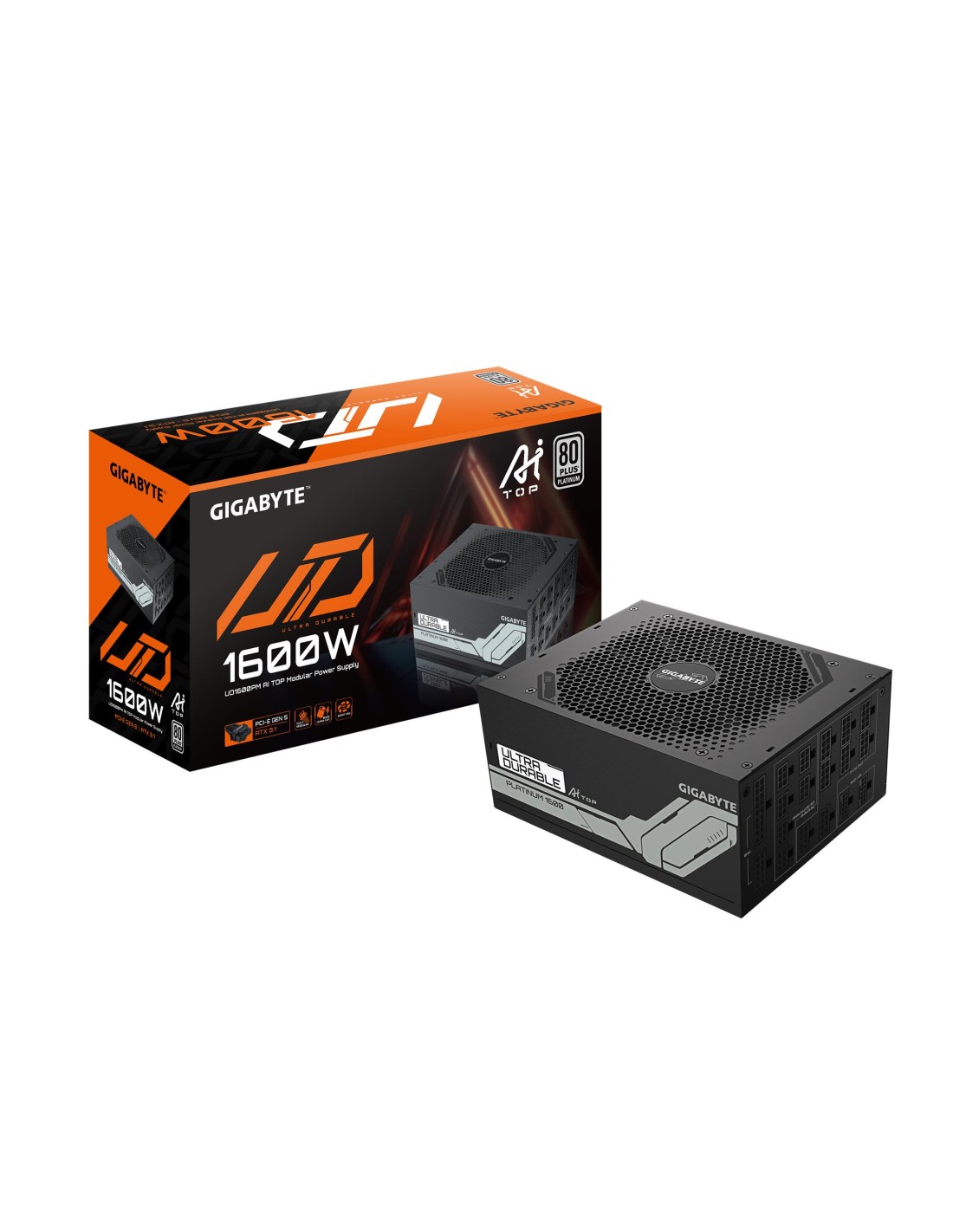

Power Supply|GIGABYTE|GP-UD1600PM PG5|1600 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|GP-UD1600PMPG5

Nauja

Power Supply|GIGABYTE|GP-UD1600PM PG5|1600 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|GP-UD1600PMPG5

Kodas GP-UD1600PM PG5

Yra sandėlyje

330,69 €

Aprašymas
Prekės aprašymas

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
ATX 3.1 and PCIe Gen 5.0 ready
Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Platinum certified
Fully modular design
Powerful single +12V rail

Garantija: 36
Category Code: PSU
Model name: GP-UD1600PM PG5
Vendor Homepage: https://www.gigabyte.com/
Unit Box Height: 0.25
Unit Box Length: 0.6
Unit Box Width: 0.11
Units per Shipping Box: 4
Unit Calculated Volume: 0.0165 cubm
Unit Calculated Weight: 5.99 kg
CnCode: 85044095
Summary: GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin A
Weight & dimensions (Depth): 190 mm
Weight & dimensions (Height): 86 mm
Weight & dimensions (Weight): 5300 g
Weight & dimensions (Width): 150 mm
Packaging data (Package depth): 219 mm
Packaging data (Package height): 145 mm
Packaging data (Package weight): 5575 g
Packaging data (Package width): 410 mm
Packaging data (Package type): Box
Design (On/off switch): Yes
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Input current): 15 - 7.5 A
Power (Max output current (+12V)): 133.3 A
Power (Max output current (+3.3V)): 30 A
Power (Max output current (+5V)): 30 A
Power (Max output current (+5Vsb)): 3.5 A
Power (Max output current (-12V)): 0.8 A
Power (Power factor): 0.9
Power (Power protection features): Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power): 1600 W
Ports & interfaces (Cabling type): Fully-Modular
Ports & interfaces (CPU power connector (4+4 pin)): Yes
Ports & interfaces (EPS power connector (4+4 pin)): Yes
Ports & interfaces (Motherboard power cable length): 610 mm
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 16
Ports & interfaces (PCI Express power connectors (6+2 pin)): 8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin)): 6
Ports & interfaces (SATA power cable length): 150/650 mm
Performance (80 PLUS certification): 80 PLUS Platinum
Performance (ATX version): 3.1
Performance (Bearing technology): DBB
Performance (Mean time between failures (MTBF)): 100000 h
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Design (Cooling type): Active
Design (Fan diameter): 120 mm
Design (Number of fans): 1 fan(s)
Power (Combined power (+12V)): 1600 W
Power (Combined power (+3.3V)): 150 W
Power (Combined power (+5V)): 150 W
Power (Combined power (+5Vsb)): 17.5 W
Power (Combined power (-12V)): 9.6 W
Logistics data (Warranty period): 10 year(s)
Power (Efficiency): 92 %
Power (Power Factor Correction (PFC) type): Active
Ports & interfaces (ATX power connector (20+4 pin)): Yes
Ports & interfaces (PCI Express connector): Yes
Power (Power Good signal delay range): 100 - 150 ms
Design (Fan location): Top
Power (Hold time): 16 ms

ean13 4719331555047
