- Tipas: Pramoninis 5G (LTE/4G) modemas
- Prekės ženklas: Teltonika

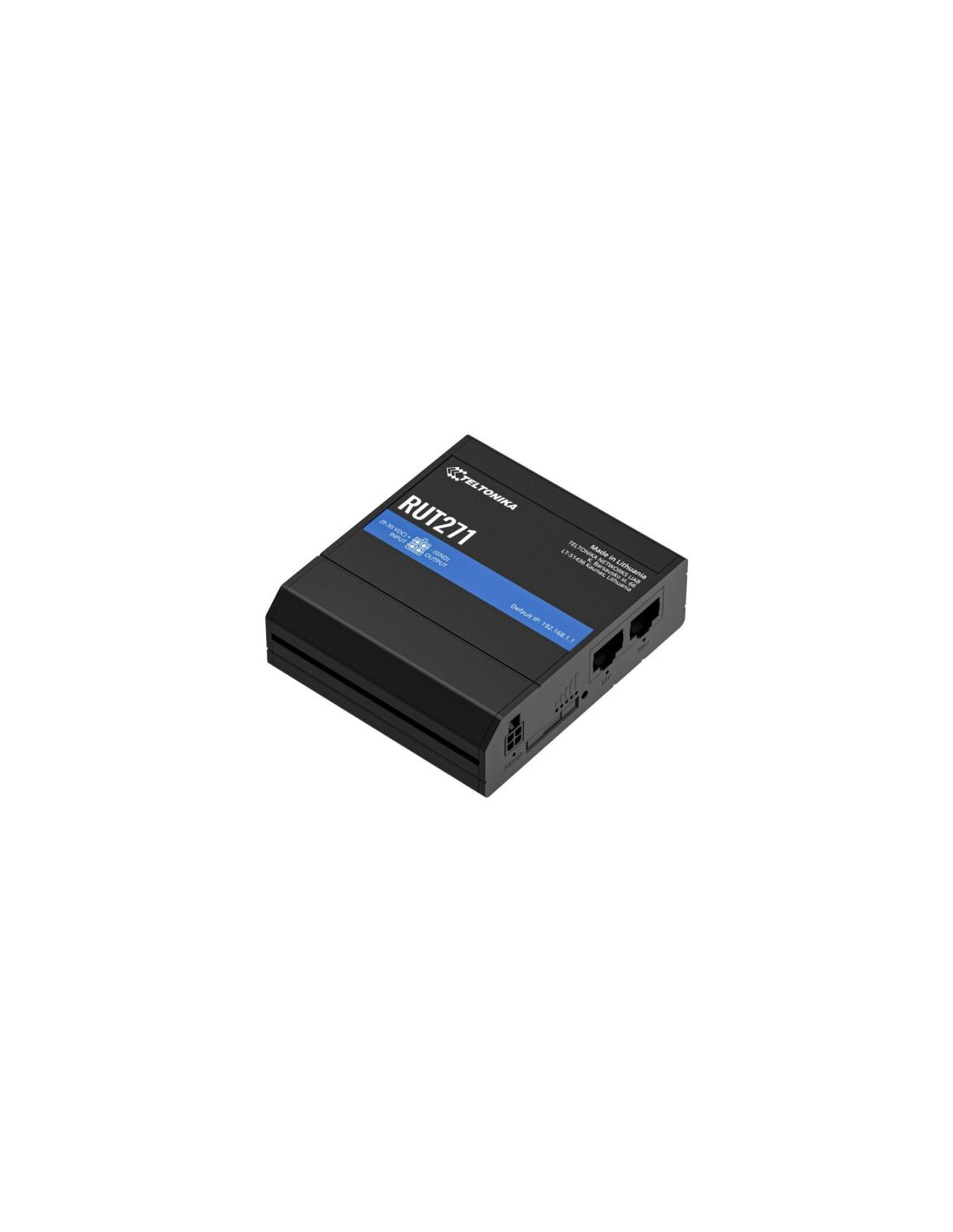

- Modelis: RUT271
- Tinklo technologija: 5G RedCap Cat 6 (iki 223 Mbps DL / 123 Mbps UL, Sub-6 GHz SA)
- Jungtys: 1 × WAN, 1 × LAN (10/100 Mbps)
- Ryšys: Wi-Fi 802.11b/g/n, SMS, I/O (1 įvestis / išvestis)
- Procesorius: MediaTek MIPS 24Kc 580 MHz
- Tvirtinimas: DIN bėgelis
- Maitinimas: Passive PoE
- Apsaugos klasė: IP30
- Bendrosios savybės
- Mobilus modulis5G Sub-6GHz SA: 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4: 195 Mbps DL, 105 Mbps UL
- 3GPP versijaRelease 17 RedCap
- eSIMConsumer type eSIM, up to 7 profiles (download/remove), data plans not included
- SIM switchDual SIM + eSIM, auto-switch on signal loss, roaming, limits, no network, etc.
- SIM managementSIM PIN code management, SIM idle protection
- Mobile network infoIMSI, ICCID, operator info, signal metrics (RSSI, RSRP, SINR, etc.)
- SMS2-way SMS, scheduling, SMS to/from Email/HTTP/SMS, SMPP support
- USSDSupports sending/reading USSD
- Block/Allow listsOperator block/allow by country/operator
- Multiple PDNSupports multiple PDNs for network/service separation
- Grupės valdymasBand lock, used band status view
- APNAuto APN
- Tilto režimasDirect bridge from mobile ISP to LAN
- Passthrough modeAssign mobile IP to LAN device
- Belaidžio ryšio režimas802.11 b/g/n (Wi-Fi 4), AP & STA modes
- Wi-Fi saugumasWPA2/WPA3, WPA-EAP, EAP-TLS, OWE, 802.11w PMF, MAC access control
- SSID featuresSSID hiding, MAC filtering, QR code access
- Wi-Fi naudotojaiUp to 50 simultaneous connections
- Wireless mesh features802.11s mesh, 802.11r fast roaming, 802.11v BSS transition, 802.11k RRM
- TravelMateForwards captive portal page
- WAN ports1× 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX
- LAN ports1× 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX
- Maršruto parinkimasStatic, Dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based
- ProtokolaiTCP, UDP, IPv4/IPv6, ICMP, HTTP(S), SNMP, MQTT, VRRP, PPP, Telnet, etc.
- VoIP NAT helpersH.323 and SIP ALG support
- Ryšio stebėjimasPing, Wget, LCP/ICMP inspection, auto reboot
- UžkardaPort forwarding, traffic rules, custom rules, stats UI
- Port managementEnable/disable, auto-config, speed control
- Tinklo topologijaVisual map of connected devices
- DHCPStatic/dynamic, relay, server config, MAC-based leases
- QoS / SQMTraffic priority by service/port, WMM, 802.11e
- DDNS77+ supported providers, custom options
- DNS per HTTPSSecure DNS via HTTPS proxy
- Failover optionsWi-Fi WAN, Mobile, VRRP, Wired
- Apkrovos balansavimasMulti-WAN traffic balancing
- Hotspot featuresCaptive portal, RADIUS (internal/external), SMS auth, landing pages, theming
- SSHFSRemote filesystem mounting via SSH
- AutentifikavimasPSK, digital/X.509 certs, TACACS+, RADIUS, login blocking, password generator
- Firewall advancedDMZ, NAT, NAT-T, NAT64, unlimited rules via CLI
- Įsilaužimo prevencijaDDOS, port scans, SYN flood, HTTP/S attack blocks
- VLAN supportTag and port-based VLAN separation
- Mobiliųjų kvotų kontrolėData limit, period, warnings, SIM switch
- Web filteringBlacklist, Whitelist
- Prieigos kontrolėSSH/Web/CLI/Telnet restriction
- Certificate managerGenerate/import CA, server, client, Let's Encrypt, SCEP certs
- 802.1xPort-based network access control
- VPN protocolsOpenVPN, IPsec, GRE, L2TP, PPTP, SSTP, ZeroTier, WireGuard, DMVPN, Tinc, Stunnel
- VPN encryption (OpenVPN)Supports 27+ cipher modes including AES-GCM, AES-CBC, 3DES, etc.
- VPN encryption (IPsec)Supports AES-GCM, AES-CBC, DES, 3DES, IKEv1, IKEv2, XFRM
- OPC UAClient/Server over TCP
- MQTT šliuzasSupports Modbus MQTT, Modbus server via MQTT broker
- MODBUS supportClient/Server over TCP, custom registers, data types: INT, UINT, FLOAT, HEX, ASCII
- Data to serverHTTP(S), MQTT, Azure MQTT; supports multi-protocol aggregation
- DLMS/COSEMClient over TCP for utility meter data exchange
- DNP3Station/Outstation over TCP
- API supportTeltonika Web API (beta)
- Web managementWeb UI (HTTP/HTTPS), CLI, multi-log support, event logs
- FOTAFirmware updates with notification and cloud management
- SSHSSH v1/v2 support
- SMS remote controlSMS-based status, control, reboot, I/O management
- Call controlReboot, Wi-Fi on/off, data on/off, timers
- Email alertsStatus reporting via email
- TR-069Supported with multiple ACS vendors
- MQTTMQTT broker and publisher
- SNMPv1/v2/v3 + trap support
- JSON-RPCManagement over HTTP/HTTPS
- RMSTeltonika Remote Management System integration
- IoT platformosThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core
- ProcesoriusMediatek, 580 MHz, MIPS 24KEc
- RAM128 MB DDR2
- Flash (atmintis)32 MB NOR
- Firmware/ConfigurationWeb UI, backup/restore, OTA via FOTA/RMS, configuration profiles
- Įrangos tinkinimasRutOS (OpenWrt), SDK, Busybox, Lua, C/C++, custom branding, package manager
- įvestis1× Digital Input (0–6 V LOW, 8–30 V HIGH)
- išvestis1× Digital Output (Open collector, max 30 V, 300 mA)
- ĮvykiaiEmail, RMS, SMS
- I/O jungiklisConfigurable I/O-based event triggering
- Maitinimo jungtis4-pin industrial DC socket
- Power input range9 – 30 VDC, reverse polarity/surge protected
- Pasyvus PoESupported via LAN1 (Mode B), 9–30 VDC
- Energijos sąnaudosIdle: <1.5 W, Max: <3 W
- Ethernet prievadai2 × RJ45 (10/100 Mbps)
- I/O ports1 × DI, 1 × DO (shared on power connector)
- Būsenos LED indikatoriai3 × Connection type, 5 × Signal strength, 2 × LAN, 1 × Power
- SIM slot1 × Mini SIM (2FF), external holder, 1.8 V / 3 V
- Antenos jungtys2 × SMA (mobile), 1 × RP-SMA (Wi-Fi)
- Atstatymo mygtukasReboot, User Reset, Factory Reset
- Korpuso medžiagaAluminum body, plastic end panels
- Matmenys83 x 25 x 74 mm
- Svoris130 g
- Montavimo galimybėsDIN rail, wall, flat surface (with kit)
- Darbinė temperatūra-40 °C to 75 °C
- Darbo drėgmė10% to 90% non-condensing
- Ingress protectionIP30
- Reguliavimo patvirtinimaiCE, UKCA, FCC, IC (ISED), RCM, CB, WEEE
- EMC/EMI standardsEN 55032, EN 55035, EN 301 489 series, FCC Part 15, ICES-003, CISPR 32
- Safety standardsEN IEC 62368-1, EN IEC 62311, AS/NZS 62368.1, IEC 62368-1:2018
- RF complianceEN 300 328, EN 301 908 series, FCC §15.247, §15.407, RSS-247, AS/NZS 4268
- RF exposure standardsFCC §2.1091, §1.1310, KDB 447498; IC RSS-102 Issue 6
