Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.

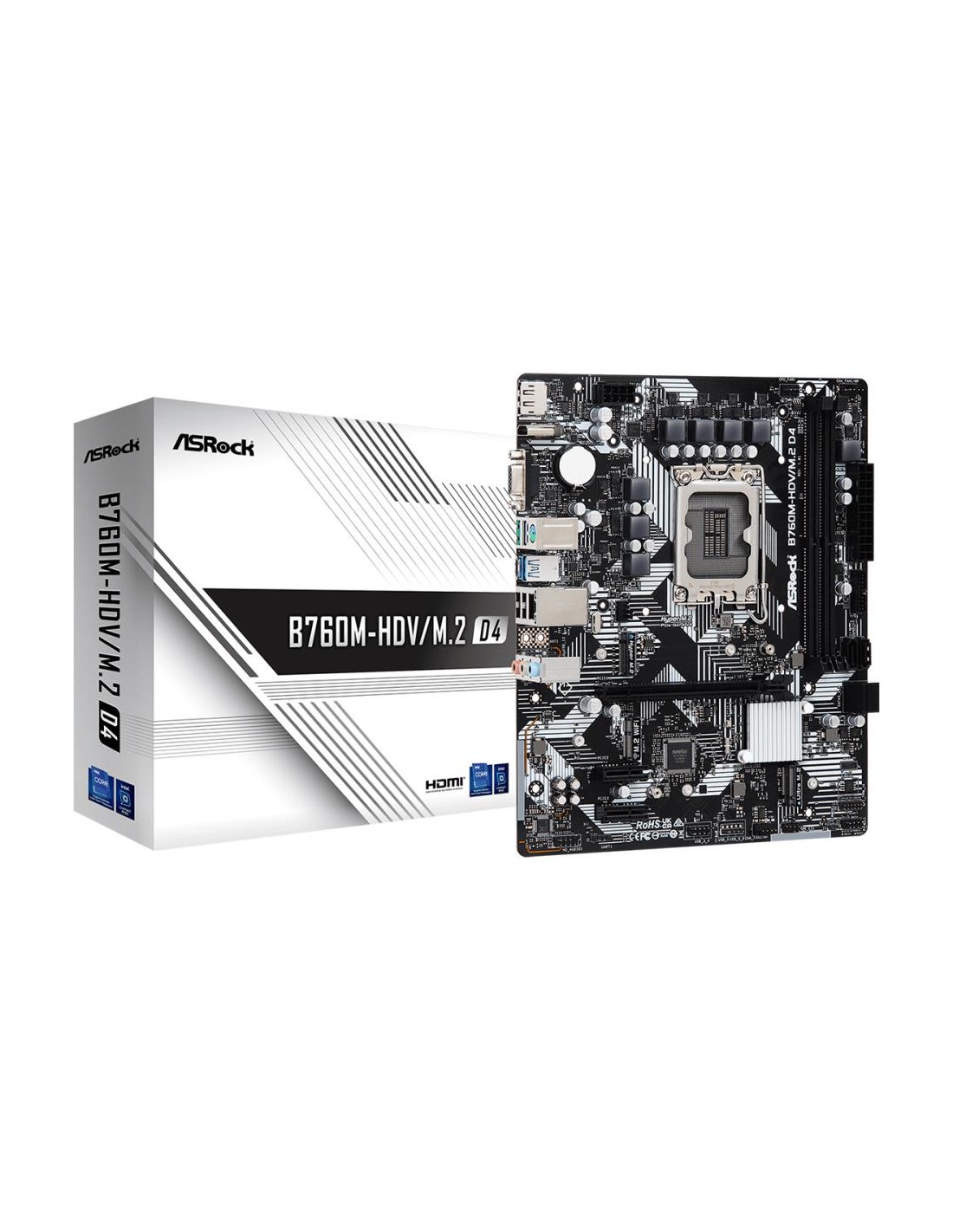

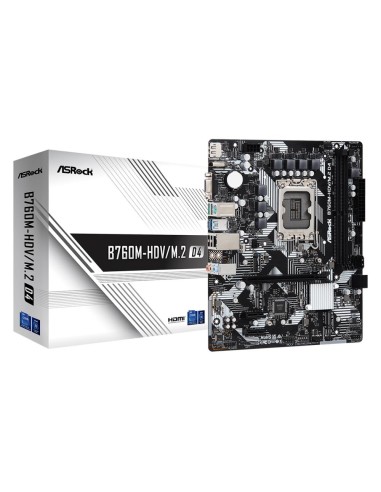

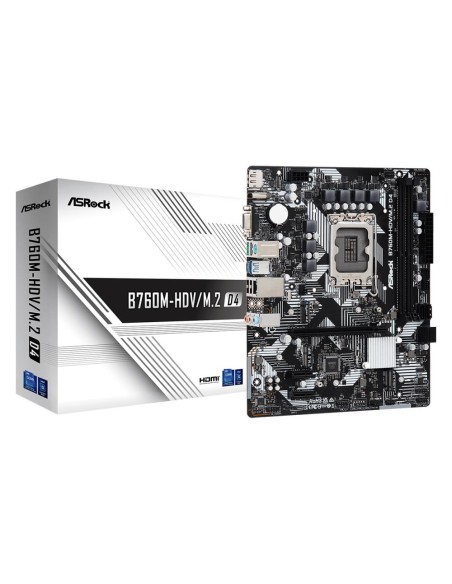

B760M-HDV/M.2D4
Yra sandėlyje
78,00 €
Intel B760 Express | LGA1700 | Micro-ATX | DDR4 | 5333 MHz | Memory slots 2 | Video Depending on CPU | LAN Gigabit | Audio | RAID SATA 0, 1, 5, 10
- ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp
- Form Factor
- Micro-ATX
- Frequency speed
- 5333 MHz
- Memory type
- DDR4
- Model
- B760M-HDV/M.2 D4
- Socket
- LGA1700
- Unit Box Height
- 0.06
- Unit Box Length
- 0.28
- Unit Box Width
- 0.242
- Input/Output connectors (USB-C)
- 1
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 3
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Input/Output connectors (15pin D-sub)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 2
- Integrated LAN
- Gigabit
- Chipset
- Intel B760 Express
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Expansion slots (PCI-Express 3.0 1x)
- 2
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 5, 10
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.004066 cubm
- Product Net Weight
- 0.65 kg
- Unit Calculated Weight
- 0.76 kg
4710483942020
