➤ Sietuvas Teltonika TRB141
  • Nauja

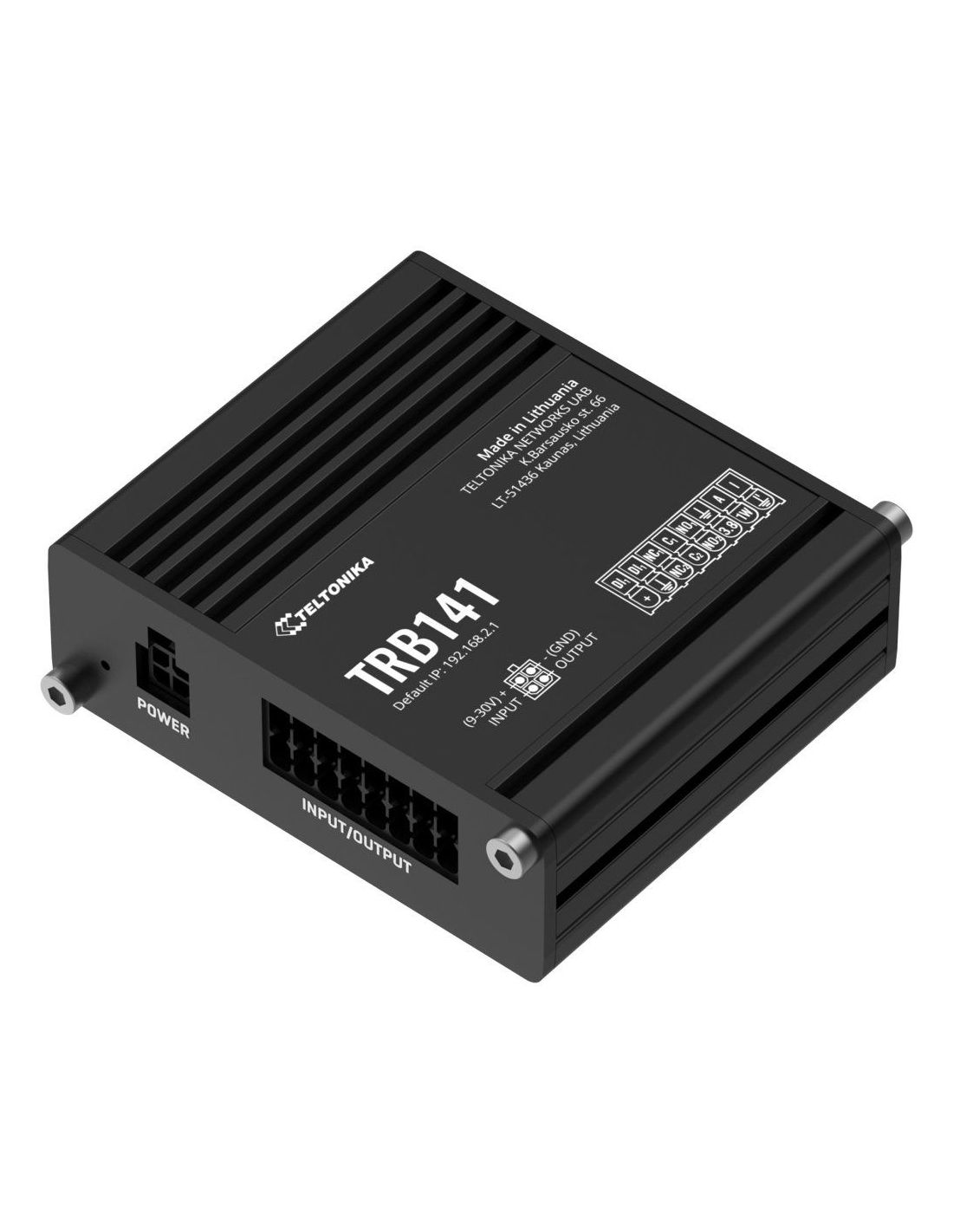

➤ Sietuvas Teltonika TRB141

Sietuvas Teltonika TRB141

Teltonika
LTETRB141
Yra sandėlyje
155,21 €
Nėra mokesčio
  • Tipas: Tinklo sietuvas
  • Prekės ženklas: Teltonika
  • Modelis: TRB141
  • Sąsaja: LTE
  • Ryšio tipas: 4G/LTE (Cat1), 3G, 2G
  • Protokolai: TCP, VPN
  • Programinė įranga: RutOS
  • Valdymas: RMS
  • Įėjimai / išėjimai: 2× In/Out
  • SIM lizdas: Taip
  • Jungtis: SMA
  • Apsaugos klasė: IP30
  • Pramoninis

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Bendras
  • Mobilus modulis4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
  • 3GPP versijaRelease 12
  • StatusasIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
  • SMSSMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Block/Allow listOperator block/allow list (by country or individual operators)
  • Multiple PDNUse of multiple PDNs for network access and services
  • Grupės valdymasBand lock, used band status display
  • SIM PIN kodo valdymasSetting, changing or disabling SIM PIN
  • APNAuto APN
  • TiltasDirect mobile ISP-to-LAN device connection
  • PerleidimasGateway assigns mobile WAN IP to LAN device
  • Maršruto parinkimasStatic routing
  • ProtokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
  • VoIP praėjimo paramaH.323 and SIP-alg NAT helpers for VoIP routing
  • Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
  • UžkardaPort forward, traffic rules, custom rules, TTL target customization
  • Ugniasienės būsenos puslapisDisplays Firewall statistics, rules, and counters
  • Port managementView and control device ports, speed, and auto-configuration
  • Tinklo topologijaVisual network layout showing connected devices
  • DHCPStatic/dynamic IP allocation, relay, server configuration, leases with MAC wildcards
  • QoS / SQMTraffic priority by source/destination, service, protocol, port; WMM, 802.11e
  • DDNSSupports >77 providers, manual config available
  • DNS per HTTPSSecure DNS via HTTPS proxy
  • Tinklo atsarginės kopijosMobile, VRRP, Wired auto failover options
  • SSHFSMount remote file system via SSH
  • Eismo valdymasReal-time monitoring, signal charts, traffic history
  • AutentifikavimasPre-shared key, digital/X.509 certificates, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator
  • Firewall configPreconfigured via WebUI, full CLI access, DMZ, NAT, NAT-T, NAT64
  • Įsilaužimo prevencijaDDOS, SSH/HTTP/HTTPS attack prevention, port scan defense
  • VLANPort and tag-based VLAN separation
  • Mobiliųjų kvotų kontrolėData limits, custom period/start, warnings, phone number
  • WEB filtrasBlacklist, whitelist for web access control
  • Prieigos kontrolėControl access to SSH, Web UI, CLI, Telnet
  • Certificate ManagerCreate CA, server, client, Let's Encrypt, SCEP certificates
  • OpenVPNMultiple client/server support, 27 encryption methods
  • OpenVPN šifravimasSupports DES, RC2, DES-EDE, AES (128/192/256-bit) in CBC, CFB, OFB, GCM modes, CAST5, BF, DESX
  • IPsecXFRM, IKEv1/v2 with 14 encryption methods
  • GREGRE tunnel, GRE over IPsec supported
  • PPTP, L2TPClient/server instances, L2TPv3, L2TP over IPsec
  • StunnelTLS proxy encryption for clients/servers without code changes
  • DMVPNScalable IPsec VPN, Phase 2/3, Dual Hub support
  • SSTPSSTP client support
  • ZeroTierZeroTier VPN client support
  • WireGuardWireGuard VPN client and server support
  • TincEncrypted/authenticated/compressed tunnels, client/server support
  • OPC UAClient and Server modes
  • OPC UA connection typesTCP
  • Modbus MQTT GatewaySend/receive MODBUS Server data via MQTT
  • MODBUS modesServer, Client
  • MODBUS connection typesTCP
  • Pasirinktiniai registraiMODBUS TCP block requests for file read/write to extend client functions
  • MODBUS data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
  • Data to Server protocolsHTTP(S), MQTT, Azure MQTT
  • Data to Server featuresExtract and send parameters from different protocols to one server; LUA scripting support
  • DNP3 modesStation, Outstation
  • DNP3 connection typesTCP
  • DLMS/COSEM protocolDLMS standard for utility meter data exchange
  • DLMS modesClient
  • DLMS connection typesTCP
  • Web API supportTeltonika Networks Web API (beta); endpoint documentation available
  • WEB UIHTTP/HTTPS access, status, config, firmware update, CLI, logs
  • FOTAFirmware update from server, auto-notification
  • SSHSSH v1/v2
  • SMS managementSMS status, configuration
  • Call functionsReboot, status, mobile data toggle, output control, answer/hang-up with timer
  • TR-069Support for OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT featuresMQTT Broker and Publisher
  • SNMP supportSNMP v1/v2/v3, SNMP Trap, brute force protection
  • JSON-RPCHTTP/HTTPS management API
  • RMSTeltonika Remote Management System
  • ThingWorx platformWAN type, IP, operator name, signal strength, network type monitoring
  • Cumulocity platformMonitors model, revision, WAN/IP, Cell ID, ICCID, IMEI, operator, signal, reboots, firmware updates
  • Azure IoT HubSend parameters to cloud, direct API methods, zero-touch provisioning
  • AWS IoT CoreDevice API via AWS Jobs support
  • CPUARM Cortex-A7 1.2 GHz
  • RAM128 MB DDR2
  • FLASH saugykla512 MB SPI Flash
  • WEB UI featuresUpdate/config profiles, backups, firmware check
  • FOTA updateFirmware update supported
  • RMS firmware managementRemote firmware/config updates
  • Nustatymų įsiminimasFirmware update without config loss
  • Gamintojo nustatymų atstatymasRestores default settings including IP, PIN, and user data
  • Firmware customisationRutOS (OpenWrt based), branding, logos, colors
  • KalbosBusybox, Lua, C, C++, Python
  • Kūrėjo įrankiaiSDK package provided
  • GPL customizationCreate custom firmware and Web UI
  • Package ManagerInstall additional device software
  • Įvestys2 x Digital (passive/active), 1 x Isolated, 1 x Analog (4–20 mA), 1 x Configurable; Logic Low: 0–5 V, High: 8–30 V
  • Išvestys2 x Relay (latching/non-latching), 1 x Configurable open collector (max 30 V, 300 mA)
  • Events triggerEmail, RMS, SMS
  • I/O jungiklisSet I/O conditions to trigger events
  • Maitinimo jungtis4-pin industrial DC socket
  • Maitinimo įvestis9–30 VDC, reverse polarity and surge protection >31 VDC 10 µs max
  • Energijos sąnaudos< 5 W
  • Fizinės sąsajos3 x Digital Inputs, 1 x Analog input, 2 x Relays (16-pin), 2 x I/O pins (4-pin power), 1 x SMA for LTE, 1 x micro USB, 1 x SIM slot (Mini SIM – 2FF), 1 x 1-Wire
  • Būsenos LED indikatoriai3 x Connection type, 5 x Signal strength, 1 x Power
  • Atstatymo mygtukasReboot, user reset, factory reset
  • Korpuso medžiagaAluminium housing
  • Matmenys (P × A × G)74.5 x 25 x 64.4 mm
  • Svoris136 g
  • Montavimo galimybėsDIN rail, wall, flat surface (kits required)
  • Darbinė temperatūra-40 °C to 75 °C
  • Darbinė drėgmė10% to 90% non-condensing
  • Apsauga nuo dulkių ir drėgmėsIP30
  • Regulatory certificationsCE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, Giteki
  • Approved operatorDeutsche Telekom AG
  • EMC complianceDraft EN 301 489-1 V2.2.0, EN 301 489-52 V1.1.0
  • EMC immunityEN 61000-4-2:2009 (ESD), EN IEC 61000-4-3:2006+A1+A2 (Radiated), EN 61000-4-4:2012 (EFT), EN 61000-4-5:2014 (Surge), EN 61000-4-6:2014 (CS), EN 61000-4-11:2004 (DIP)
  • RF standardsEN 301 511 V12.5.1, EN 301 908-1/2/13 V13.1.1
  • Safety standardsEN 62368-1:2014+A11:2017, EN IEC 62232:2017, EN 50385:2017, AS/NZS 62368.1:2018, IEC 62368-1:2018
