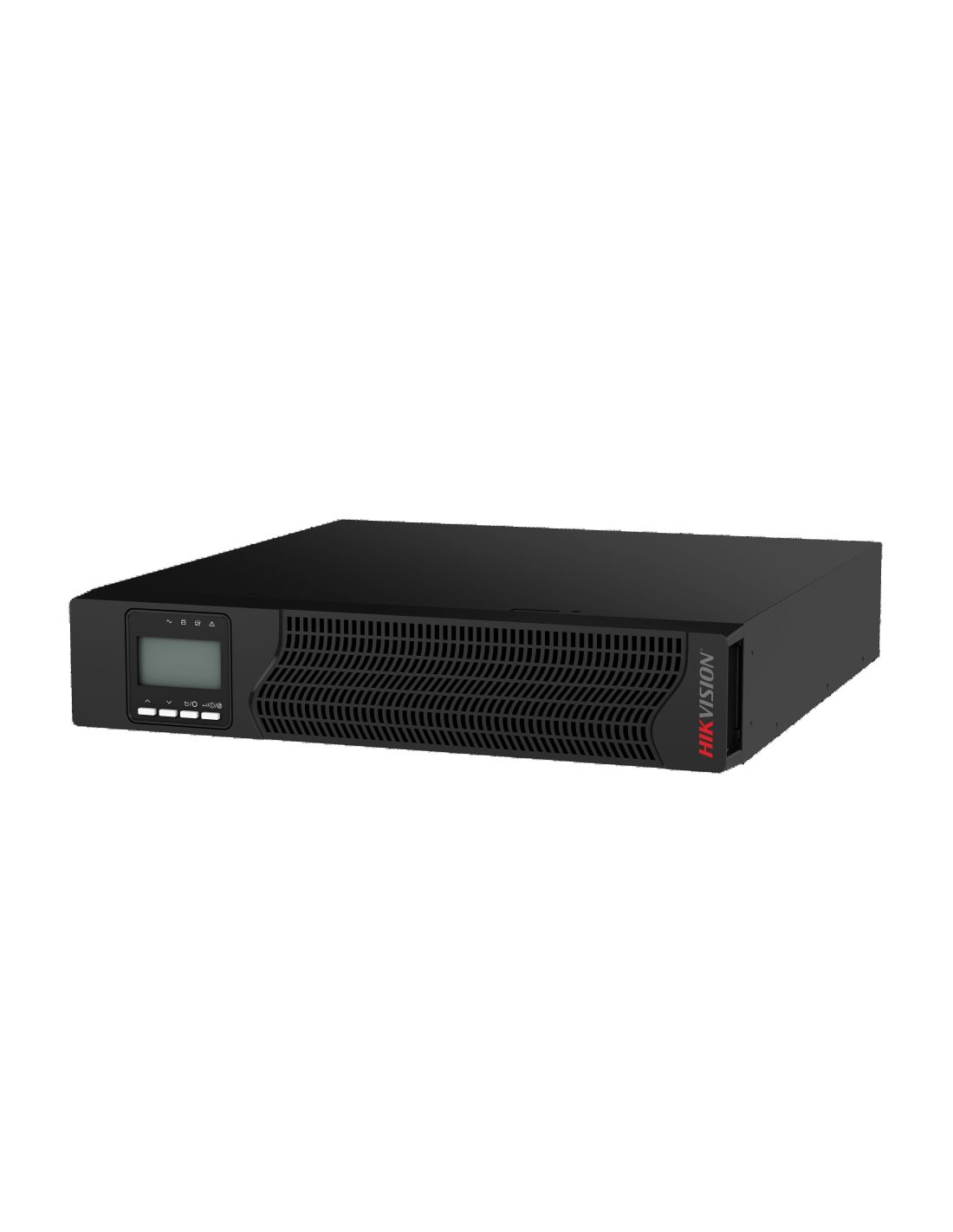

➤ HIKVISION UPS DS-UPS01K24-R/TJS(O-STD)/EU/IEC (Rack/Tower, LCD, 1000VA/900W )
  • Nauja
➤ HIKVISION UPS DS-UPS01K24-R/TJS(O-STD)/EU/IEC (Rack/Tower, LCD, 1000VA/900W )

HIKVISION UPS DS-UPS01K24-R/TJS(O-STD)/EU/IEC (Rack/Tower, LCD, 1000VA/900W )

UPS1000DSRTR
Yra sandėlyje
426,77 €
  • Tipas: UPS
  • Modelis: DS-UPS01K24-R/TJS(O-STD)/EU/IEC
  • Galia: 1000VA / 900W
  • Dizainas: Rack/Tower
  • Ekranas: LCD
  • Jungtys: 8xC13, RS232, USB B, 2xRJ45, EPO
  • LAN plokštės suderinamumas: R Series - SNMP Card arba MAS4 Card dry contacts
  • UPS tipas: Online
  • Grynas sinusas
  • Matmenys: 440x460x86.5 (2U) PxGxA
  • Baterijos: 2x12V/9Ah
  • Korpusas: Metalinis
  • Galima prijungti iki 4 vnt. baterijų paketų DS-UPSB0924B-R/TJC

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Baterija
  • Battery Number2
  • Akumuliatoriaus tipasValve Regulated Lead Acid (VRLA)
  • Capacity (Standard Unit)12V/9Ah
  • Charging Current (Max.)1A
  • DC System Voltage (VDC)24V
  • Expandable RuntimeYes, External battery pack: DS-UPSB0924B-R/TJC
  • Typical Backup TimeView Runtime Graph
  • Typical Recharging Time4 hours (To 90% of full capacity)
  • Efektyvumas
  • AC Mode89%
  • Battery Mode85%
  • Aplinkosauga
  • Aukštis<1500m, derating required when>1500m
  • Drėgmės diapazonas20~95%RH @ 0~40°C (Non condensing)
  • Triukšmo lygis<50dB at 1 Meter
  • Darbinė temperatūra0°C~40°C
  • Sandėliavimo temperatūra-25°C~55°C
  • Indikatorius
  • SignalizacijaBattery mode/Battery low voltage /Overload/Fault
  • LCD displayInput voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time
  • įvestis
  • Įvesties dažnis40~70Hz (50/60Hz Auto-Sensing)
  • Įvesties įtampos diapazonas110~300Vac (176~264Vac @ 100% load)
  • Nominali įtampa208/220/230/240Vac
  • PhaseSingle Phase
  • Galios faktorius≥0.99
  • išvestis
  • Crest faktorius3:1
  • Harmonic distortion (THDv)≤3% Linear load ≤5% Non linear load
  • Output FrequencyOnline mode: 46~54Hz or 56~64HzBat. Mode: (50/60±0.1%)Hz
  • Išvesties lizdaiIEC panel/EU panel/UK panel/US panel Optional
  • Išvesties įtampa208/220/230/240Vac
  • Output WaveformPure Sinewave
  • Power factor 0.9
  • Perjungimo laikasAC mode to Bat.mode: 0msInverter to Bypass: 4ms (Typical)
  • Physical
  • Dimension W x D x H (mm)440 x 460 x 86.5
  • Net weight (kg)11.3
  • Galia
  • UPS Capacity 1000 VA / 900 W
  • Standartai
  • EMCCE-EMC, IEC/EN 62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
  • SaugumasCE-LVD, IEC/EN 62040-1, IEC/EN 62477-1
