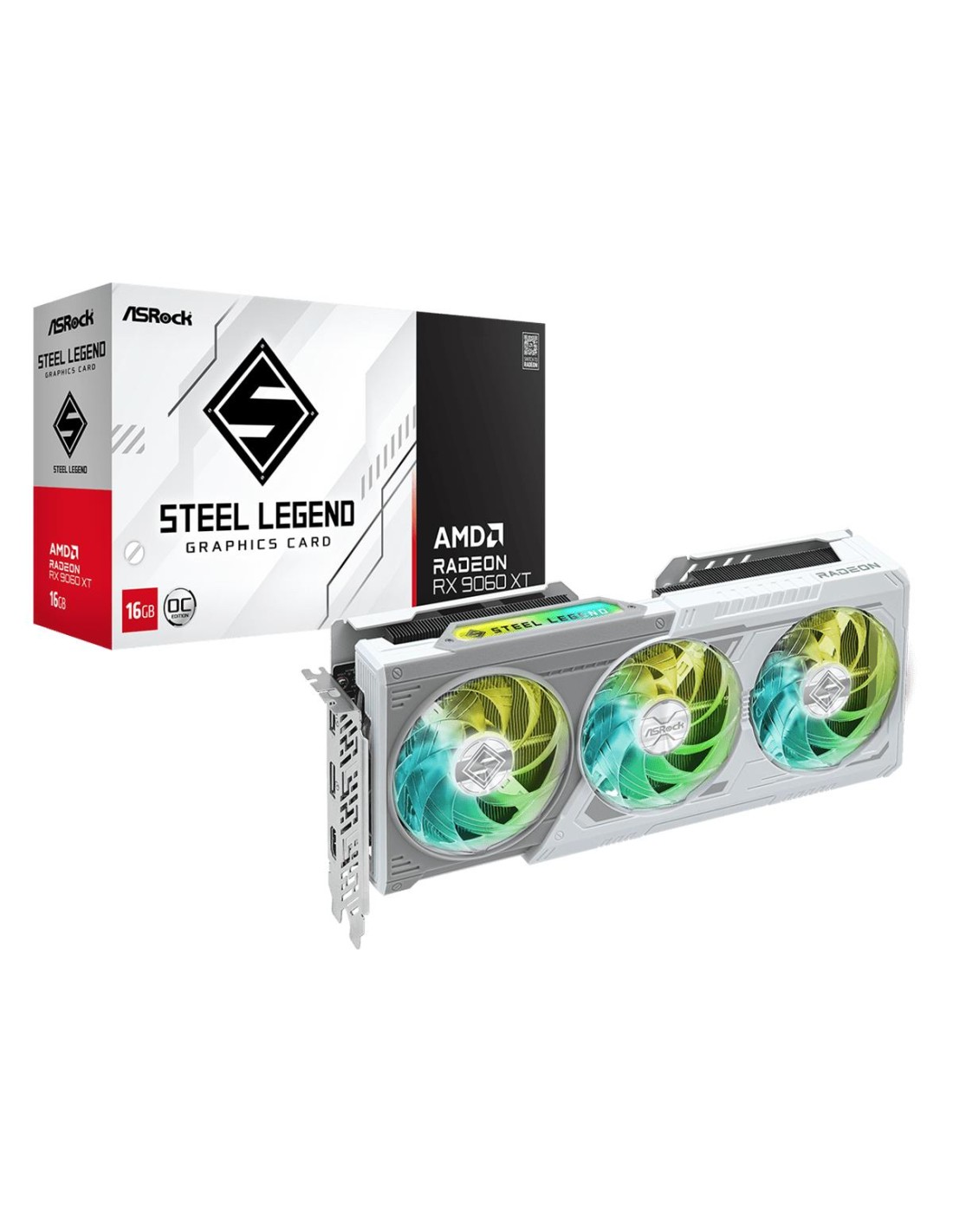

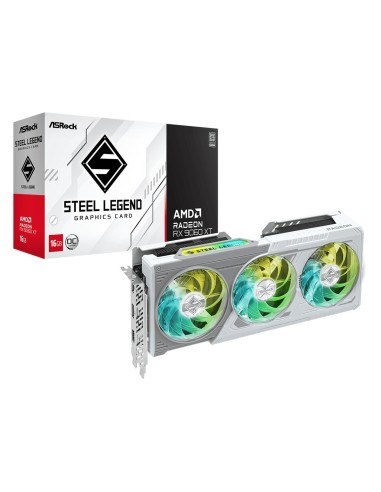

Graphics Card|ASROCK|AMD|Radeon RX 9060 XT|16 GB|GDDR6|128 bit|PCI Express x16 5.0|Active|RX9060XTSL16GO
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch & ARGB Header
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
- Garantija
- 24
- Category Code
- VGP
- Vendor Homepage
- https://www.asrock.com/Graphics-Card/AMD/Radeon%20RX%209060%20XT%20Steel%20Legend%2016GB%20OC/ Overview
- Unit Box Height
- 0.215
- Unit Box Length
- 0.405
- Unit Box Width
- 0.095
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.011 cubm
- Product Net Weight
- 0.967 kg
- Unit Calculated Weight
- 1.68 kg
- CnCode
- 84718000
- Summary
- Asrock AMD Radeon RX 9060 XT Steel Legend 16GB OC. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels.
- Weight & dimensions (Depth)
- 131 mm
- Weight & dimensions (Height)
- 51 mm
- Weight & dimensions (Weight)
- 967 g
- Ports & interfaces (HDMI ports quantity)
- 1
- Ports & interfaces (HDMI version)
- 2.1b
- Design (Product colour)
- White
- Ports & interfaces (DisplayPort version)
- 2.1a
- Ports & interfaces (DisplayPorts quantity)
- 2
- Design (Illumination)
- Yes
- Design (Illumination colour)
- Amber/Blue/Green/Red
- Design (Cooling type)
- Active
- Design (Number of fans)
- 3 fan(s)
- Processor (CUDA)
- No
- Processor (Graphics processor)
- Radeon RX 9060 XT
- Processor (Graphics processor family)
- AMD
- Processor (Maximum displays per videocard)
- 3
- Memory (Data transfer rate)
- 20 Gbit/s
- Memory (Discrete graphics card memory)
- 16 GB
- Memory (Graphics card memory type)
- GDDR6
- Ports & interfaces (Interface type)
- PCI Express x16 5.0
- Performance (Dual Link DVI)
- No
- Performance (TV tuner integrated)
- No
- Design (Number of slots)
- 2.55
- Weight & dimensions (Length)
- 298 mm
- Processor (Maximum resolution)
- 7680 x 4320 pixels
- Processor (Processor boost clock speed)
- 3320 MHz
- Memory (Memory bus)
- 128 bit
- Performance (DirectX version)
- 12 Ultimate
- Performance (OpenGL version)
- 4.6
- Power (Minimum system power supply)
- 550 W
- Power (Supplementary power connectors)
- 1x 8-pin
- Performance (HDCP)
- Yes
- Processor (Stream processors)
- 2048
