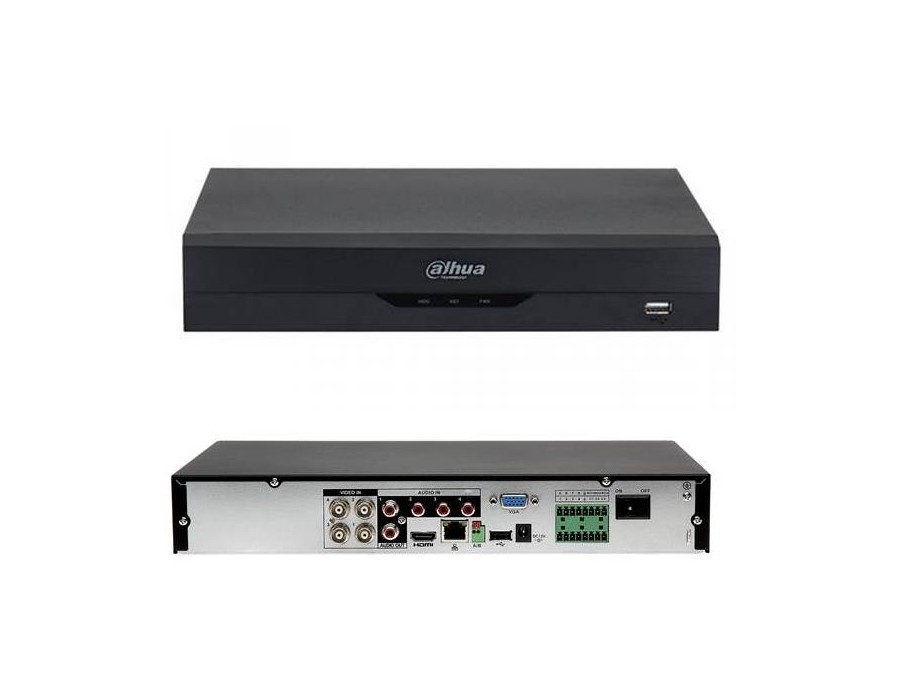

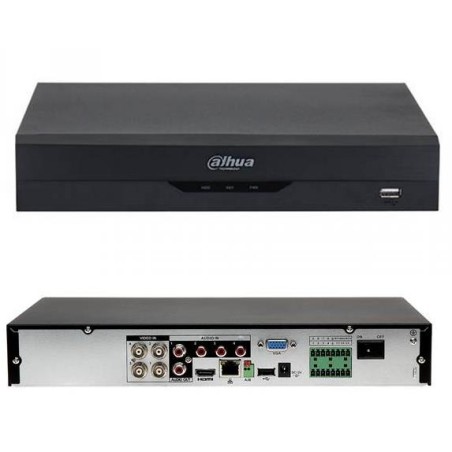

4 Channel Penta-brid 5M-N/1080p Mini 1U 1HDD WizSense Digital Video Recorder
HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 4+2 channels, each channel up to 6MP
Recording: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
AI Coding/H.265+/H.265/H.264+/H.264 video compression
Audio In/Out: 4/1, RCA, G.711A, G.711U, PCM audio compression
1x SATA interface up to 6 TB storage
VGA/HDMI up to Full HD output
RJ-45, 2x USB ports, RS485
No front panel control, 8/3 Alarm I/O
Compact 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Human/Vehicle secondary recognition for tripwire and intrusion, Search by target classification (Human, Vehicle)
Up to 1 channel video stream ( analog channel ) Perimeter Protection
Up to 4 channels video stream ( analog channel ) SMD Plus
Up to 1 channel video stream (analog channel ) human face recognition
IoT & POS functionalities
Free IP monitoring software available
- Garantija
- 36
- Category Code
- STD
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.31 kg
- Vendor Homepage
- www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5104HE-I3
- Dimensions
- 325.0 mm 256.6 mm 55.0 mm
- Unit Box Height
- 0.305
- Unit Box Length
- 0.375
- Unit Box Width
- 0.115
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (15pin D-sub)
- 1
- Interface (SATA)
- Yes/Yes
- Input/Output connectors (Audio-In)
- 4
- Input/Output connectors (Alarm In)
- 8
- Input/Output connectors (Alarm Out)
- 3
- DVR type
- 4 Channel
- Camera Compatibility
- AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HD-TVI/TurboHD 5MP/IP
6939554930362
