4 Channel|Camera Compatibility Analog/IP/AHD 720P/AHD 1080P/HDCVI 720P/HDCVI 1080P/HD-TVI/TurboHD 720P/HD-TVI/TurboHD 1080P|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|DC 12 V/1.5 A

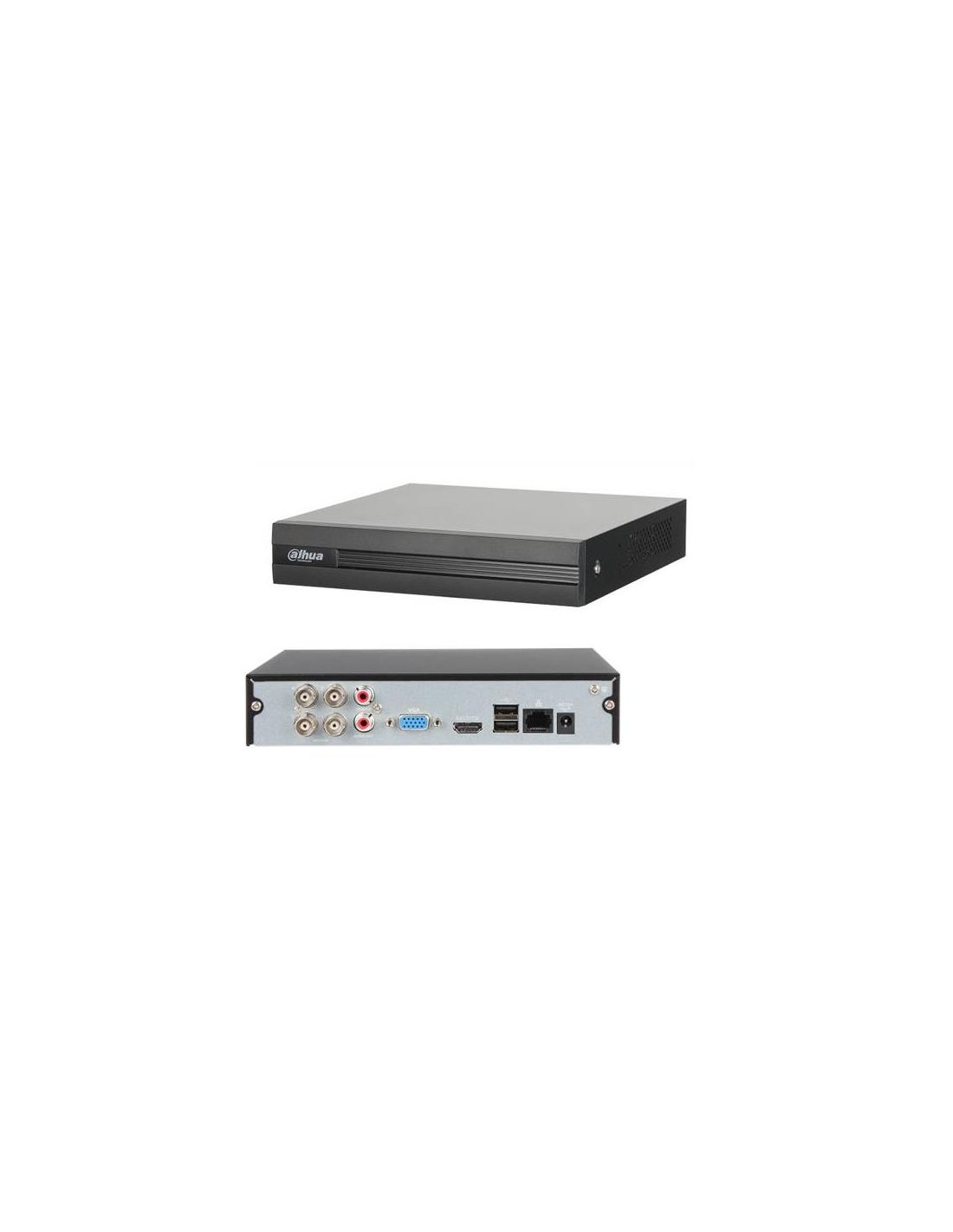

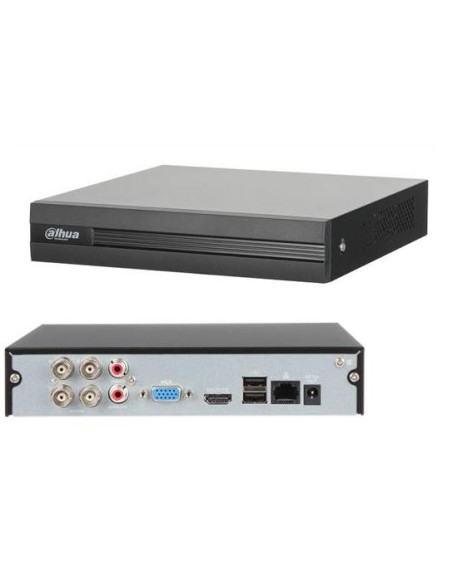

4 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder
Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)
IP: Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant
SMD Plus: Search by target classification (Human, Vehicle)
G.711A; G.711U; PCM video/audio compression
1x SATA interface up to 6TB storage
VGA/HDMI up to Full HD output, RJ-45, 2x USB ports
No front panel control, 1/1 Audio I/O, no Alarm I/O
Mini 1U case, mouse included
P2P, Coaxial Audio/Alarm/Upgrade
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Free IP monitoring software available
Pentabrid capability: Each channel supports HDCVI, AHD, TVI, CVBS and IP Video input
4-channel BNC interface
HDCVI/AHD/HD-TVI recording: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)
IP: Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264, ONVIF 16.12, CGI Conformant
SMD Plus: Search by target classification (Human, Vehicle)
G.711A; G.711U; PCM video/audio compression
1x SATA interface up to 6TB storage
VGA/HDMI up to Full HD output, RJ-45, 2x USB ports
No front panel control, 1/1 Audio I/O, no Alarm I/O
Mini 1U case, mouse included
P2P, Coaxial Audio/Alarm/Upgrade
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Free IP monitoring software available
- Garantija
- 36
- Category Code
- STD
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 0.57 kg
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/Cooper-I-Series/XVR1B04-I
- Dimensions
- 198 202.9 41.5mm
- Unit Box Height
- 0.255
- Unit Box Length
- 0.335
- Unit Box Width
- 0.1
- Power supply requirements
- DC 12 V/1.5 A
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (15pin D-sub)
- 1
- Interface (SATA)
- Yes/Yes
- Input/Output connectors (Audio-In)
- 1
- Number of Channels
- 4
- DVR type
- 4 Channel
- Camera Compatibility
- AHD 1080P/AHD 720P/Analog/HDCVI 1080P/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 720P/IP
6923172503992
