➤ Bevielis relinis modulis Ajax WallSwitch 38189.13.BL1 (230V, 13A)
➤ Bevielis relinis modulis Ajax WallSwitch 38189.13.BL1 (230V, 13A)

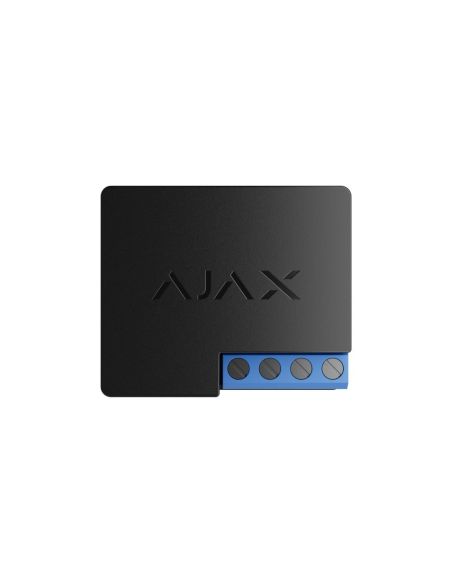

Bevielis relinis modulis Ajax WallSwitch 38189.13.BL1 (230V, 13A)

AJAX
AJWALLSWITCH
Yra sandėlyje
86,54 €
Nėra mokesčio
  • Tipas: Bevielis relinis modulis
  • Modelis: Ajax WallSwitch
  • Įtampa: 230V
  • Srovė: 13A
  • Nuotolinis 110/230 V~ elektros tiekimo valdymas
  • Prekės kodas: 38189.13.BL1

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Maitinimas
  • Maitinimo įtampa110–230 V ± 10%, 50/60 Hz
  • Maksimali pastovi apkrovos srovė13 A
  • Išvesties galiaup to 3.0 kW (resistive load at 230 V~), up to 1.5 kW (resistive load at 110 V~)
  • Vidutinės sąnaudosup to 1 W
  • Srovės apsaugamore than 11 A (when Overcurrent protection is enabled), more than 13 A (when Overcurrent protection is disabled), Once the current exceeds the specified level, the device turns off automatically.
  • Įtampos apsauga 230 V~ elektros tinkluimin: 184 V~, max: 253 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
  • Įtampos apsauga 110 V~ elektros tinkluimin: 92 V~, max: 132 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
  • Temperatūros apsaugaover 149 °F, If protection is triggered, the device turns off.
  • Apsaugos nuo elektros smūgio klasėClass II
  • Bendravimas
  • Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
  • Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
  • Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW
  • Radijo signalo moduliacijaGFSK
  • Radijo ryšio veikimo nuotolisup to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
  • Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
  • Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
  • Pagrindinės savybės
  • Valdymas per išmanųjį telefonąThe user can set up the relay configurations and receive notifications in an Ajax app.
  • Automatizavimo scenarijaiBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO 2 concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
  • Energijos sąnaudų stebėjimo priemonėControl of the current, voltage, power, and electric energy consumed by connected appliances.
  • Adjustable pulse duration 2from 1 to 255 s
  • Veikimo režimaipulse 2, bistable, 2 Available on devices with firmware version 5.54.1.0 or later manufactured after March 5, 2020.
  • Kontakto būsenanormally open, normally closed
  • Apsauga nuo sabotažo
  • Apsauga nuo klastojimodevice authentication
  • Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
  • Korpusas
  • Matmenys1.54″ × 1.3″ × 0.71″
  • Svoris1.06 oz
  • Darbinė temperatūros ribafrom 32 °F to 147 °F
  • Drėgmėup to 75% with no condensation
  • Apsaugos klasėIP20
