- Tipas: Belaidis kartotuvas

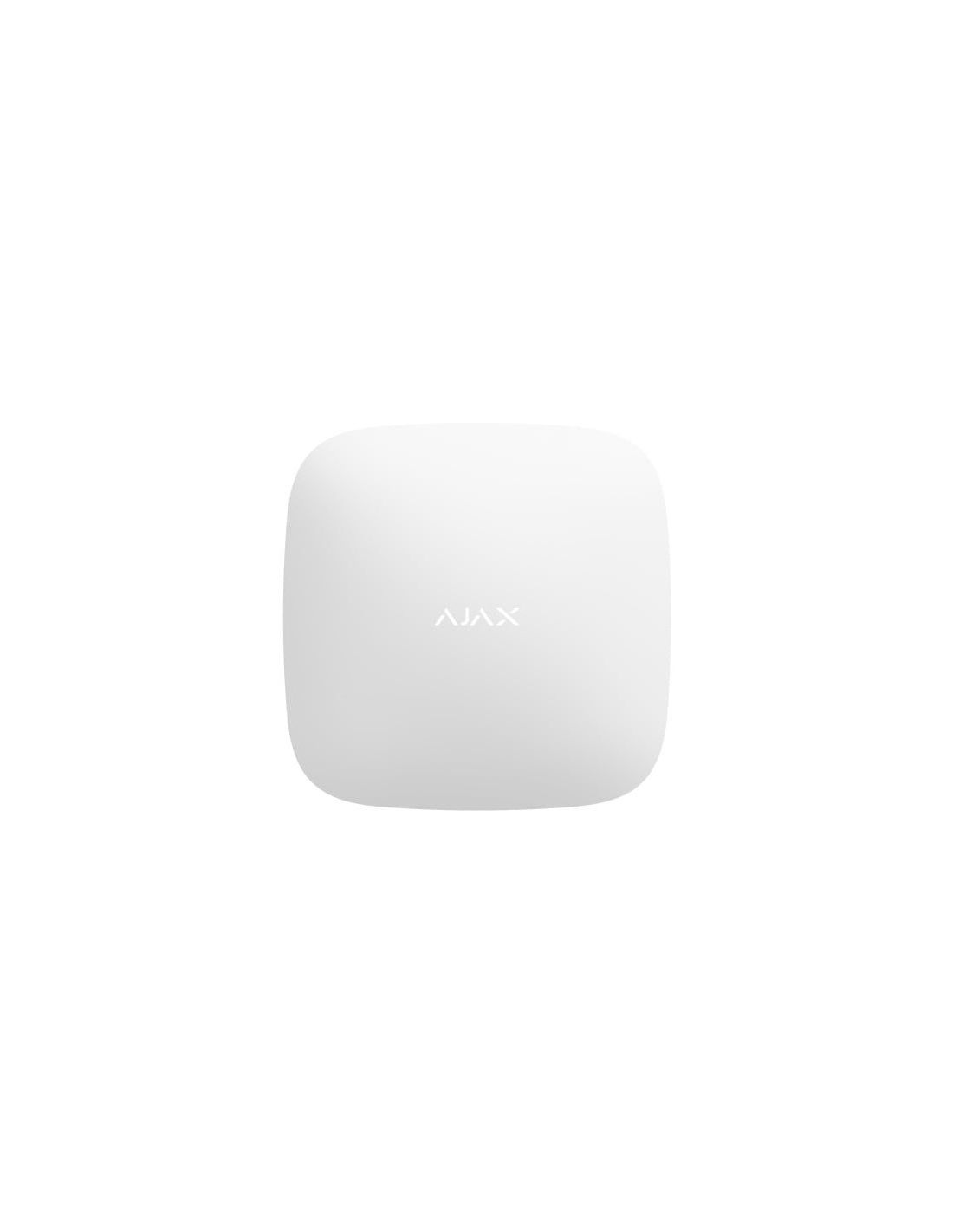

- Modelis: Ajax Rex 2
- Spalva: Balta
- Veikimo atstumas: Iki 3400 m (atviroje erdvėje)
- Suderinamumas: Palaiko MotionCam
- Gamintojo kodas: 38207.106.WH1
- Jungčių galimybės
- Number of ReX 2 Jeweller connected to the hub5, For all compatible hub models.
- Number of devices connected to ReX 2 Jewellerup to 199, Depends on the hub model. Only Hub 2 Plus Jeweller and Hub 2 (4G) Jeweller are under certification by UL.
- Bendravimas
- Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW, Automatic power control to reduce power consumption and radio interference.
- Radijo signalo moduliacijaGFSK
- Radijo ryšio veikimo nuotolisup to 5,550 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
- Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
- Wings ryšio technologijaProprietary wireless communication technology to transmit photo verifications., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors., Photo delivery check., Learn more
- Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
- Radijo ryšio veikimo nuotolisup to 5,600 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
- Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
- Ethernet1 8P8C socket (up to 100 Mbps), An alternative or main communication channel to transmit events, alarms, and photos.
- Pristatymo laikas
- Pavojaus signalo pristatymo laikas į valdymo pultą0.3 s
- Photo delivery time to the hub18 s, Via ReX 2 Jeweller using the Wings channel. Delivery time depends on the settings., 10 s, Via ReX 2 Jeweller using the Ethernet channel. Delivery time depends on the settings., Learn more
- Apsauga nuo sabotažo
- Sabotažo signalasNotifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
- Apsauga nuo klastojimodevice authentication
- Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Maitinimas
- Pagrindinis110–240 V, 50/60 Hz, Up to 6 W of mains power consumption.
- Atsarginės kopijosbuilt-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 12 hours of backup battery life when Ethernet is enabled., Up to 38 hours of backup battery life. ReX 2 Jeweller average consumption is up to 41* mA when Ethernet is disabled., Up to 12 hours of backup battery life. ReX 2 Jeweller average consumption is up to 161* mA when Ethernet is enabled., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022 , has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer, Dongguan Lean Power, UL listed.
- Tipastype A, Power supply is used inside the supervised premises.
- Ramioji įrenginio srovės sąnauda esant nominaliai įtampai14.5 mA
- Maksimali įrenginio srovės sąnauda esant nominaliai įtampai95.8 mA
- Maža baterijos įtampa3.7 V⎓
- Mažos baterijos atsigavimo įtampa4.1 V⎓
- Galutinė baterijos įtampa3.6 V⎓, Device is switched off.
- Minimali atsarginės baterijos energija įkrautoje būsenoje100%
- Alternatyva6 V⎓, Connected via an alternative power supply unit * 6V PSU (type A which is sold separately ., 12-24 V⎓, Connected via an alternative power supply unit * 12–24V PSU (type A) which is sold separately ., Learn more, * Not evaluated by UL.
- Korpusas
- Matmenys6.42″ × 6.42″ × 1.42″
- Balto įrenginio svoris12.84 oz
- Juodo įrenginio svoris11.85 oz
- Darbinės temperatūros diapazonasfrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
- Drėgmėup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
- Apsaugos klasėIP30, IK06
