➤ Akumuliatorius 12V 15h F2 6.3mm AGM VRLA NERBO NBC15-12L
➤ Akumuliatorius 12V 15h F2 6.3mm AGM VRLA NERBO NBC15-12L

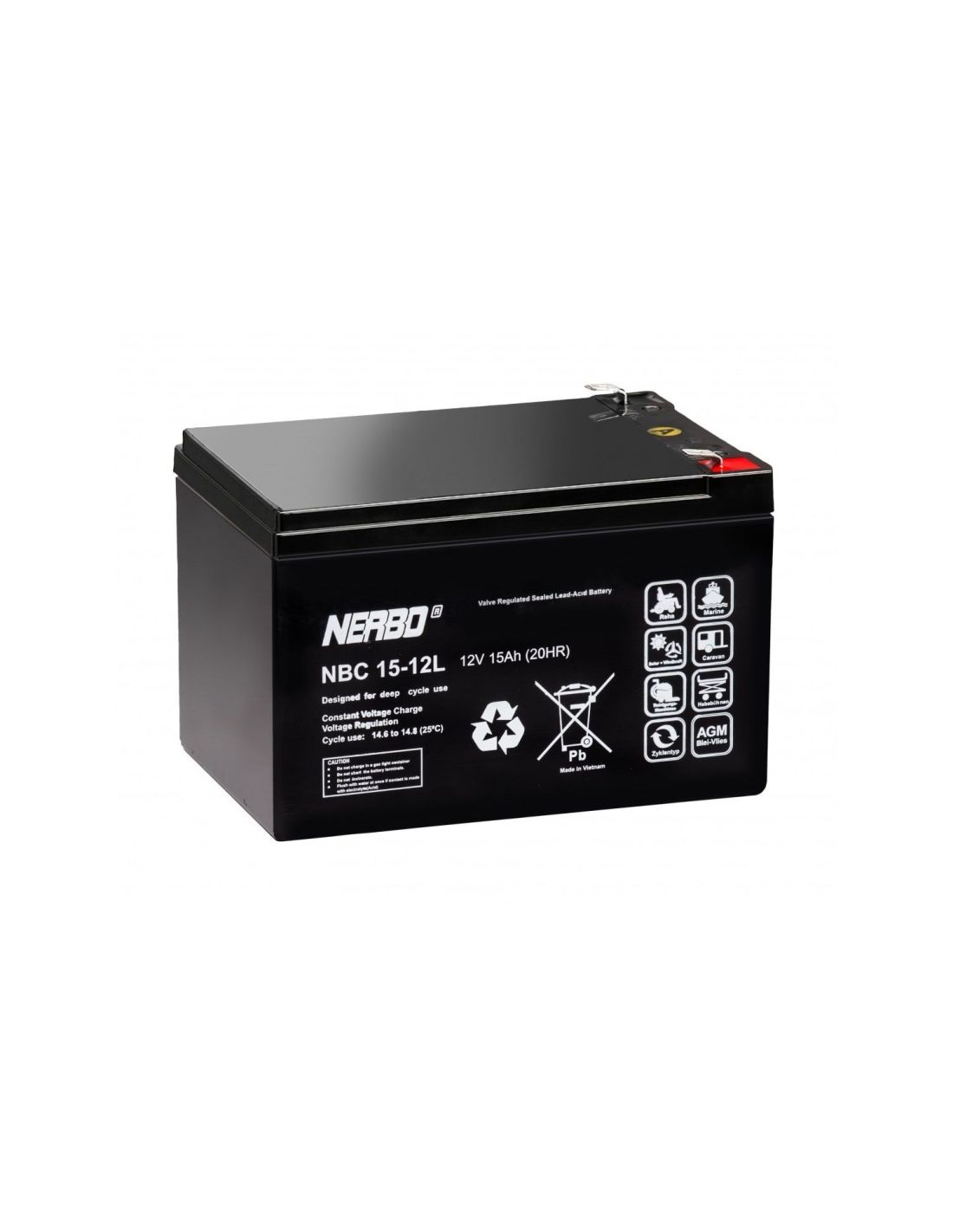

Akumuliatorius 12V 15h F2 6.3mm AGM VRLA NERBO NBC15-12L

Nerbo
AN1512F2
Yra sandėlyje
47,09 €
Nėra mokesčio
  • Tipas: AGM akumuliatorius
  • Modelis: NBC15-12L
  • Talpa: 15 Ah
  • Įtampa: 12 V
  • Jungties tipas: F2
  • Technologija: VRLA (Valve Regulated Lead Acid)
  • Svoris: 4,5 kg
  • Prekės ženklas: NERBO

https://sintas.lt/modules/iqithtmlandbanners/uploads/images/6409c8e0092fc.jpg

  • Bendra informacija
  • ModelisNBC15-12L
  • Nominali įtampa12V
  • Talpa15Ah at 20h discharge to 1.8V/cell at 25°C
  • Elementų skaičius6
  • Maksimali iškrovimo srovė140A (5 seconds)
  • Vidinis pasipriešinimasApprox. 12 mΩ
  • Charge Voltage14.6 ~ 14.8 VDC (for cyclic use at 25°C)
  • Max Charge Current4.2A
  • Self-discharge<6 months at 25°C; recharge before use
  • Darbo sąlygos temperatūraDischarge: -20°C to +60°C; Charge: 0°C to +50°C; Storage: -20°C to +60°C
  • Optimum Working Temperature25°C ± 5°C
  • Terminal Connector6.3 mm
  • Korpuso medžiagaA.B.S. (UL94-HB); UL94-V-0 fire resistant version optional
  • Matmenys151 x 98 x 99 mm (L x W x H); Total Height: 105 mm
  • SvorisApprox. 4.5 kg
  • Constant Current Discharge (25°C)58.53A (5min @ 9.6V), 1.45A (10h @ 9.6V), 0.79A (20h @ 9.6V) [full table available in document]
  • Constant Power Discharge (25°C)634.8W (5min @ 9.6V), 17.33W (10h @ 9.6V), 9.45W (20h @ 9.6V) [full table available in document]
  • SavybėsSpecially designed for frequent deep cycle discharge, high reliability under high load, suitable for power-driven vehicles like scooters and wheelchairs
