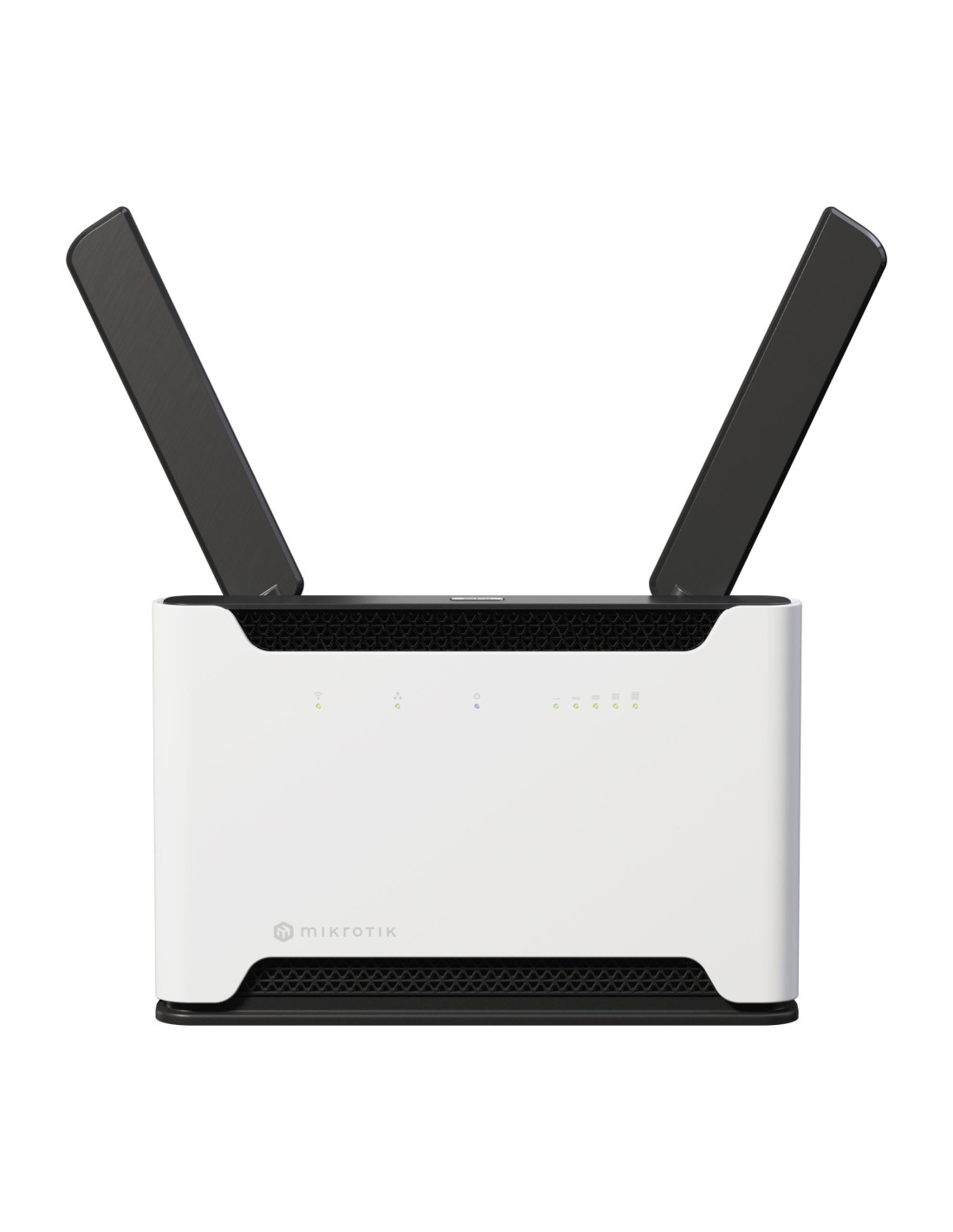

Access Point|MIKROTIK|3G|4G|5HAXD2HAXD-TC&RG650E-EU

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Your network, your rules: eSIM or microSIM

Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:

• MikroTik Connectivity
(pre-activated data plans)

• Third-party eSIMs
(Mobile operator eSIM profiles)

• Multiple eSIM profiles
(easily added, switched, or stored)

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

• Smart aggregation with wide regional FDD + TDD band support;

• Extra strong signal pickup thanks to 4x4 MIMO;

• Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

Mobile
Details
3G Category    R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands          1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category  20 (2.0 Gbps Downlink, 211 Mbps Uplink)
MIMO DL          4x4
MIMO UL         1x1 (5G SA MIMO UL 2x2)
LTE FDD bands                            1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands                            38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 40 (2300MHz) / 43 (3700MHz)
5G NSA FDD bands                    1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G NSA TDD bands                    38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
5G SA FDD bands                       1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G SA TDD bands                       38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
TAC                     86896506
