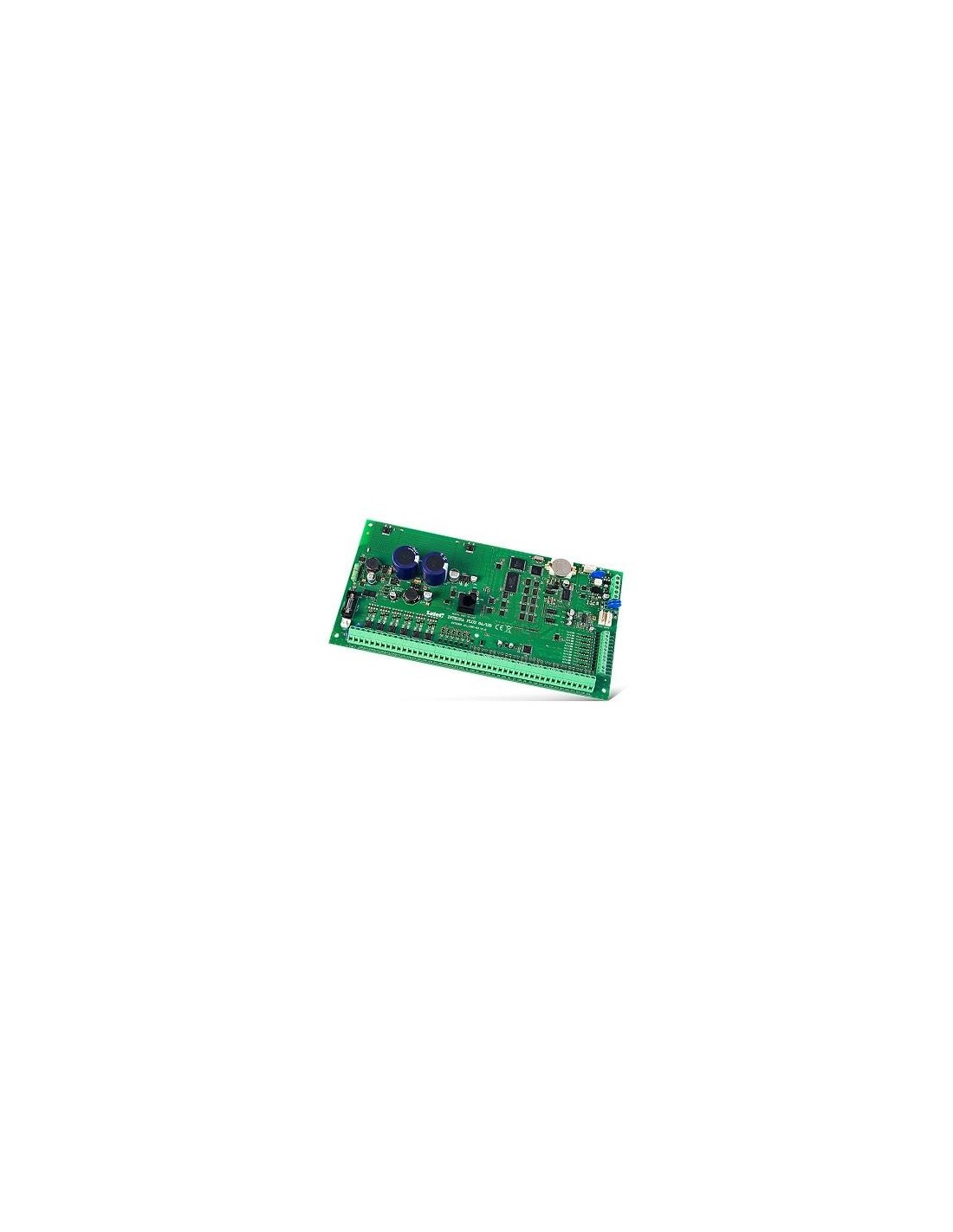

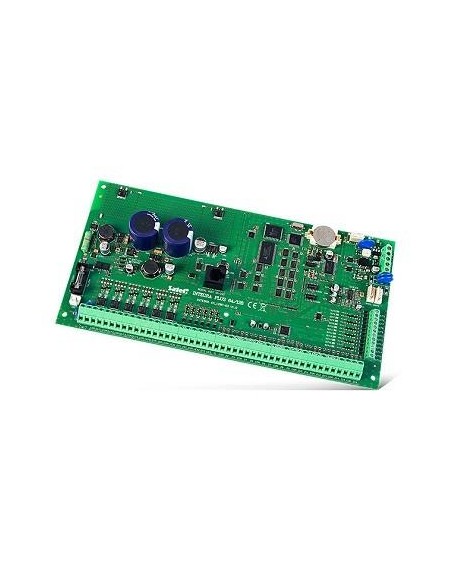

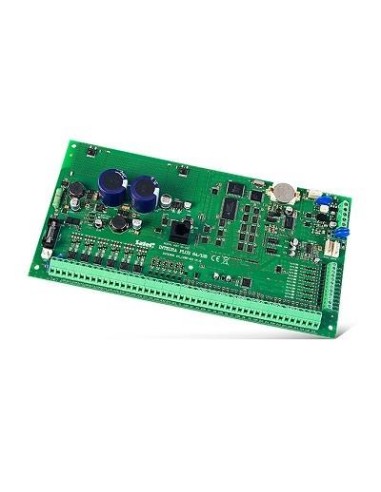

CONTROL PANEL GRADE 3/INTEGRA64 PLUS SATEL

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs
- full compliance with EN50131 series of standards for Grade 3 equipment
- built-in advanced 2A+2A power supply with extended autodiagnostics
- up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
- USB port for programming via PC
- up to 32 partitions, 8 tenants
- up to 64fully programmable outputs
- dedicated buses for communication with keypads and expansion modules
- system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
- remote system operation with PC, smartphone or voice-guided telephone menu
- 64 independent timers for automatic control
- access control and home automation features
- non-volatile event log with 6143entries, with on-line printing support
- support for 192+8+1 user codes
- firmware upgrades via PC
