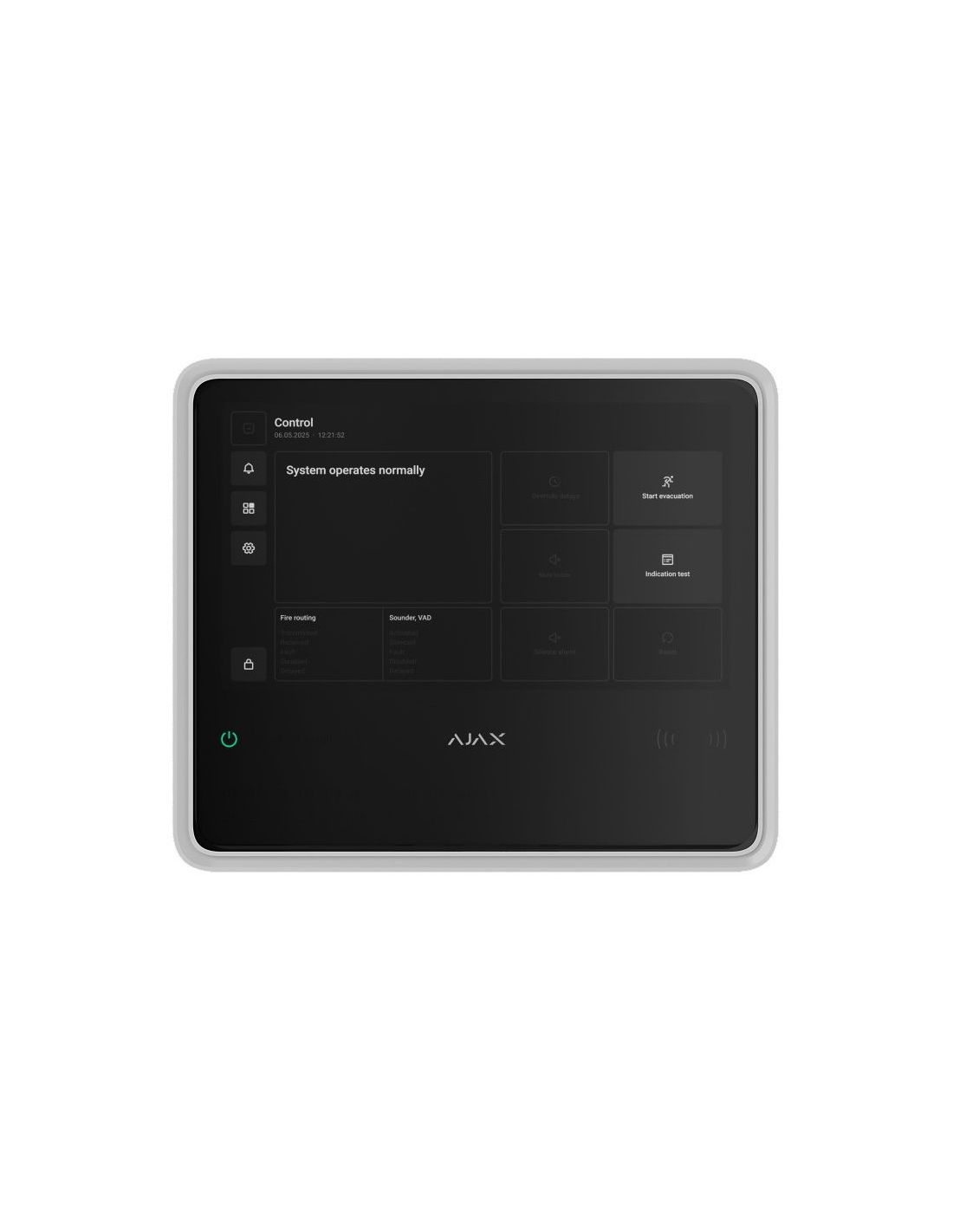

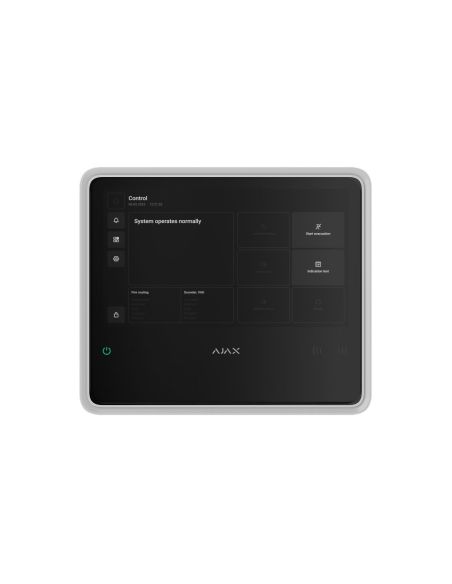

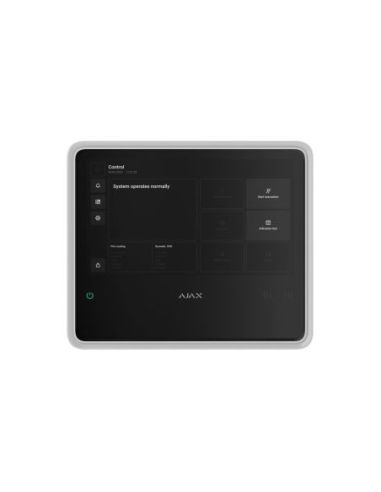

Gaisro centralė Ajax EN54 Fire Hub 125732.315.WH (balta)
AJAXEN54FIREHUBB
Išparduota
1 024,65 €
Nėra mokesčio
- Tipas: Gaisro centralė
- Modelis: Ajax EN54 Fire Hub Jeweller
- Modelio kodas: 125732.315.WH
- Spalva: Balta
- Palaikomi įrenginiai: iki 200
- Tinklo jungtys: LAN, Wi-Fi, 2 x SIM (2G/4G)
- Ekranas: 10.1" jutiklinis IPS
- Raiška: 1024 × 600 px
- Gaisro zonos: iki 40
- Naudotojai: iki 200
- Atsarginis maitinimas: Li-Ion 7.4 V baterija
- Bendrieji duomenys
- Produkto pavadinimasAjax EN54 Fire Hub Jeweller
- TipasWireless control and indicating equipment (CIE) for fire alarm and intrusion protection systems
- Atitikties standartaiEN 54-2, EN 54-4, EN 54-13, EN 54-21, EN 54-25, EN 50131 (Grade 2)
- Ekranas10.1" IPS capacitive touch screen, 1024 × 600 px, 50,000 hours backlight life
- Interface languageEnglish (default), configurable via Ajax apps
- Pagrindinis maitinimo šaltinis110–240 V~, 50/60 Hz
- Backup power supplyLi-Ion 7.4 V battery (5 or 10 Ah), battery life 24 to 72 hours depending on model
- Autonomy24–72 h (based on installed EN54 internal battery)
- Relių išėjimai2 (NC and NO), max resistive load: 2 A @ 30 V⎓, max 60 W in standby mode
- External power supply (for relay)10–30 V⎓
- Communication protocolsJeweller, Wings, TurboWings
- Wireless rangeUp to 1,800 m in open space
- Maksimalus ERP≤ 25 mW
- Užklausų intervalas12–300 s (adjustable)
- Ryšio kanalaiEthernet (100 Mbps), Wi-Fi (up to 72 Mbps), 2G/4G LTE with 2 × SIM slots (up to 4 providers)
- Automatic switchingBetween Wi-Fi, Ethernet, and cellular channels
- Event transmission protocolsSurGard (Contact ID), SIA DC-09 (IP-based)
- ZonosUp to 40
- Ajax įrenginiaiUp to 200 (including up to 5 Fire ReX range extenders)
- Fire detectorsAny Ajax fire detection devices with wireless connectivity
- VartotojaiUp to 200
- Saugumo grupėsUp to 25
- PatalposUp to 80
- Automatizavimo scenarijaiUp to 64
- Cameras/DVRsUp to 36 Ajax NVRs, 25 Ajax cameras, or 100 third-party cameras (via RTSP)
- Įvykių žurnalasUp to 5,000 events, stored locally
- Alarm managementStart/stop evacuation, mute/override buzzer, reset fire alarm, run tests
- Zone managementFire zones tab with grouped device status and test options
- Sound and LED indicators40 LED indicators for fire zones, 6 LEDs for system states, built-in 60 dB buzzer
- Vaizdinė verifikacijaSupports Ajax MotionCam and IP cameras for alarm confirmation and evidence
- User authenticationUp to 200 personal codes, 200 duress codes, ISO14443-A (13.56 MHz) contactless access
- Contactless accessPass cards and tag key fobs (up to 200 devices); supports DESFire®, EV1, EV2
- ĮrengimasTool-free with QR code; remote setup via Ajax apps
- MaintenanceHot-swappable backup battery, app-based diagnostics and remote service
- Apsauga nuo sabotažoTamper alarm, device authentication, jamming detection, frequency hopping, loss detection within 36s, encrypted communication
- Casing dimensions—
- Svoris—
- KomplektacijaFire Hub Jeweller, installation accessories (battery sold separately)
