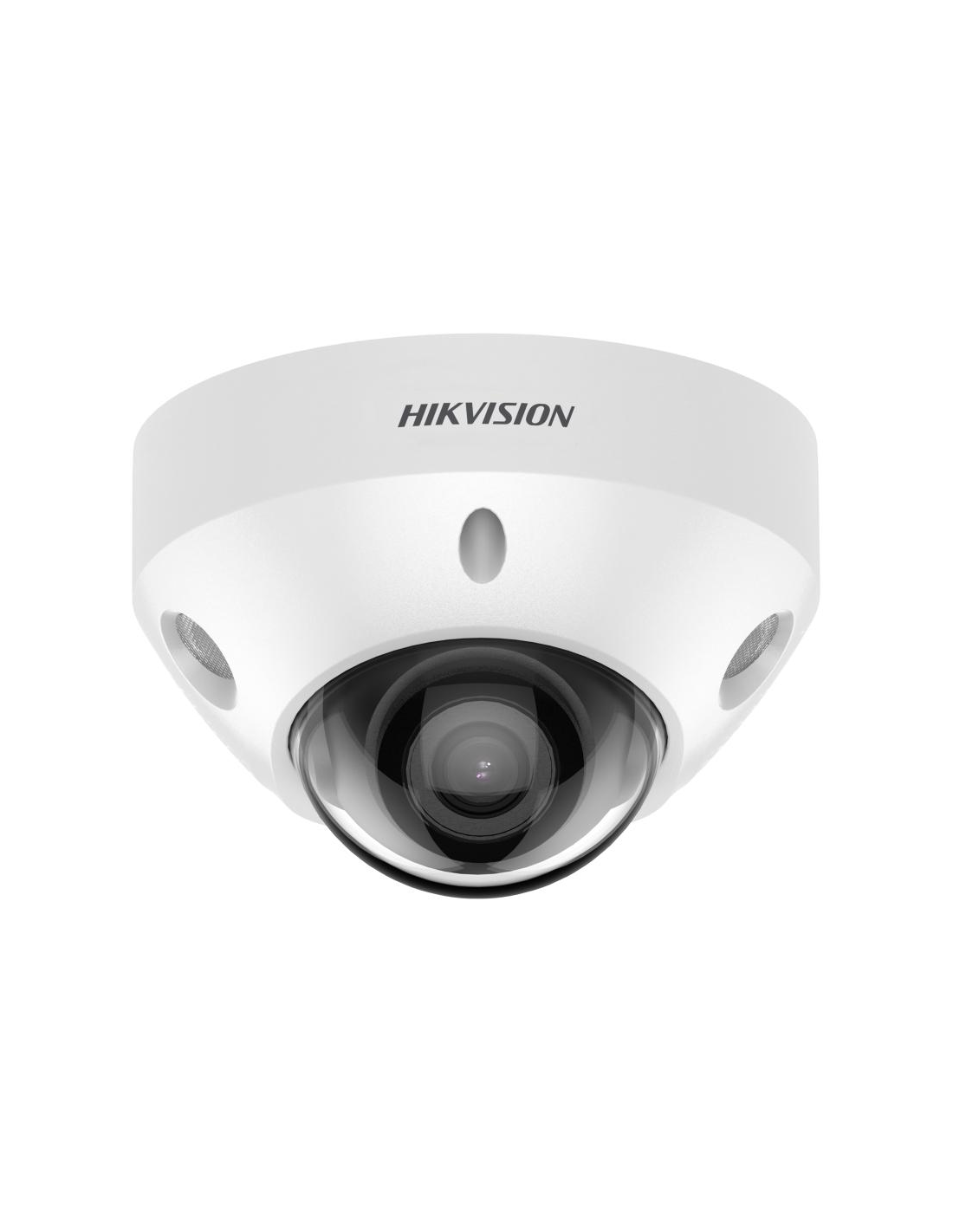

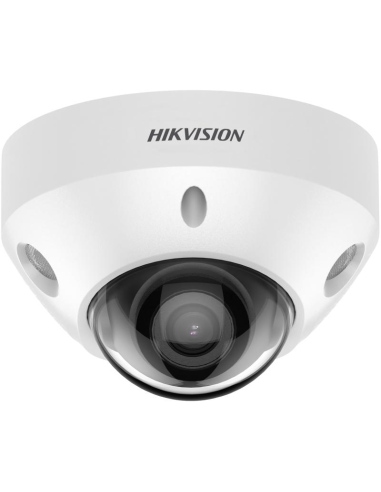

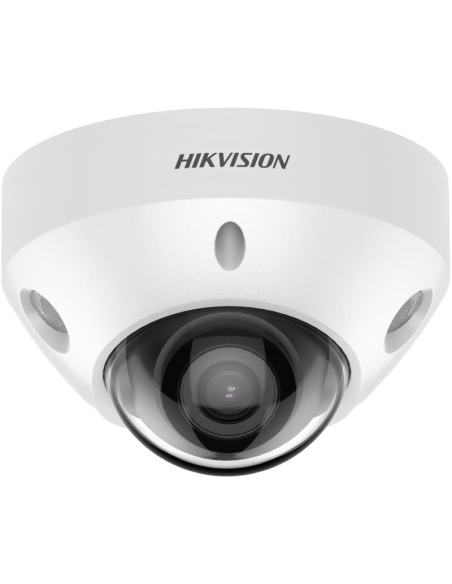

Hikvision mini dome DS-2CD2547G2-LS(C) F4 (balta, 4 MP, 30 m. IR, ColorVu)
  • Nauja
Hikvision mini dome DS-2CD2547G2-LS(C) F4 (balta, 4 MP, 30 m. IR, ColorVu)

Hikvision mini dome DS-2CD2547G2-LS(C) F4 (balta, 4 MP, 30 m. IR, ColorVu)

KIPDS2CD2547G2LSCF4
Yra sandėlyje
363,29 €
Nėra mokesčio
  • MP (MegaPixel): 4 MP
  • Objektyvas: 4 mm, horizontalus FOV: 95°
  • Technologija: ColorVu
  • LED apšvietimas: Taip
  • Integruotas mikrofonas: Taip
  • Naktinis pašvietimas: 30 m
  • Vieta microSD talpai: Taip, 256GB
  • Darbo sąlygos: -30 °C iki 60 °C
  • Saugos lygis: IP67
  • Vaizdo suspaudimas: H.265+
  • WiFi: Ne
  • Lauko/vidaus: Lauko


  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & Night24/7 Color imaging
  • Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

    4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°

  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field

    2.8 mm: 2.3 m to ∞

    4 mm: 3.2 m to ∞

  • DORI
  • DORI

    2.8 mm:

    D: 58 m

    O: 23 m

    R: 11 m

    I: 6 m

    4 mm:

    D: 77 m

    O: 30 m

    R: 16 m

    I: 8 m

  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
  • Built-in MicrophoneYes
  • Audio

    -LS:

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm

    -LS:

    1 input, 1 output (max. 12 VDC, 20 mA)

  • Reset KeyYes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection

  • Deep Learning Function
  • Face CaptureYes
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power

    12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 W

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

  • MaterialBase: aluminum, cover: plastic
  • DimensionØ113.6 mm × 72.6 mm (Ø4.5" × 2.9")
  • Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightApprox. 400 g (0.9 lb.)
  • With Package WeightApprox. 635 g (1.4 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B)

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

    RCM (AS/NZS CISPR 32: 2015)

    IC (ICES-003: Issue 7)

    KC (KN32: 2015, KN35: 2015)

  • Safety

    UL (UL 62368-1)

    CB (IEC 62368-1: 2014+A11)

    CE-LVD (EN 62368-1: 2014/A11: 2017)

    LOA (IEC/EN 60950-1)

    BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

  • Environment

    CE-RoHS (2011/65/EU)

    WEEE (2012/19/EU)

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIP67: IEC 60529-2013,IK08: IEC 62262:2002
