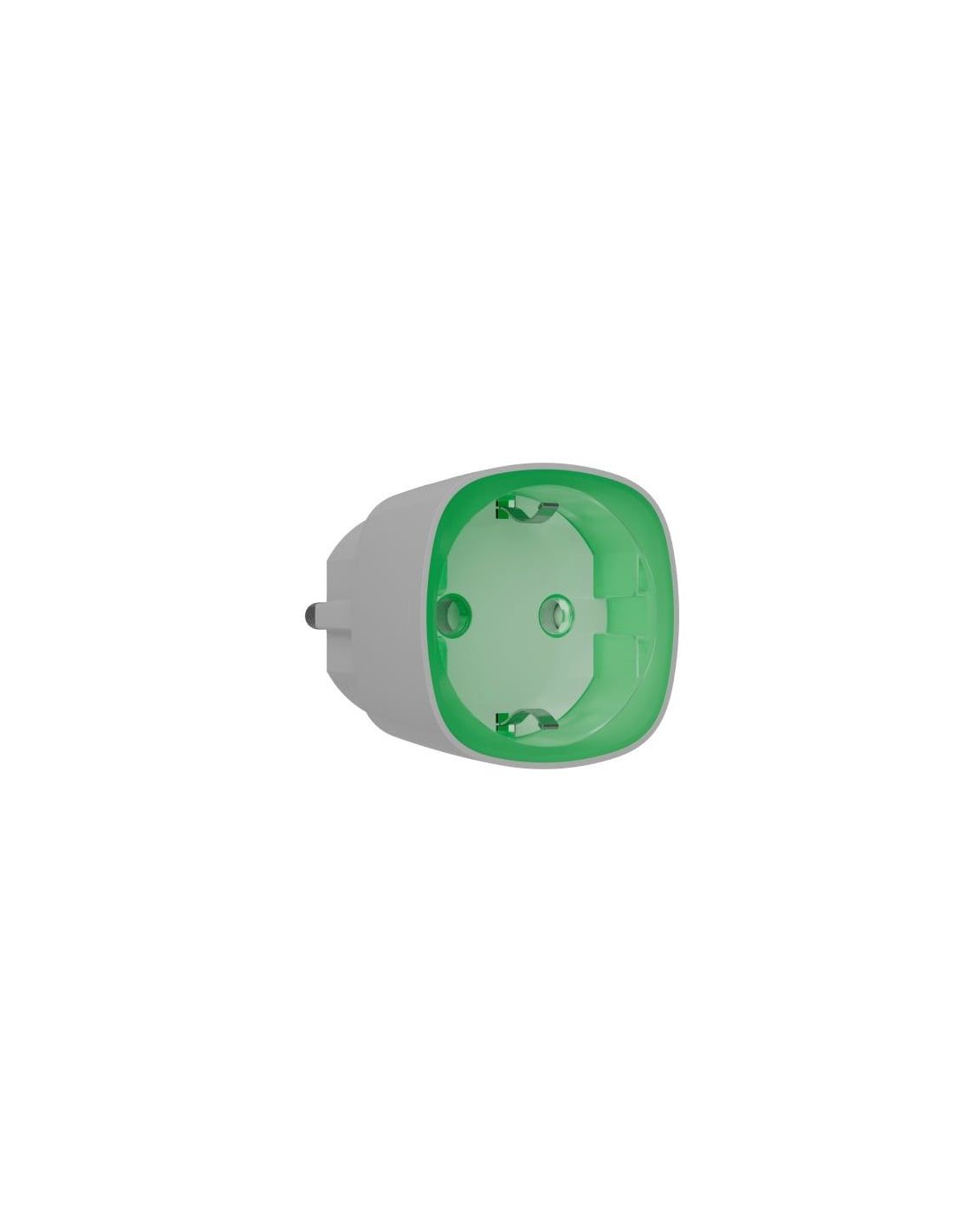

Nuotoliniu būdu valdomas el. lizdas Ajax Socket 38209.34.WH1 (baltas)
AJAX
AJSOCKETW
Yra sandėlyje
97,99 €
Nėra mokesčio
- Tipas: Išmanusis el. lizdas
- Modelis: Ajax Socket
- Spalva: Balta
- Valdymas: Nuotolinis
- Funkcija: Elektros suvartojimo stebėjimas
- Gamintojo kodas: 38209.34.WH1
- Maitinimas
- Maitinimo įtampa110–230 V~, 50/60 Hz
- Maksimali pastovi apkrovos srovė11 A
- Išvesties galiaup to 2.5 kW (resistive load at 230 V~), up to 1.2 kW (resistive load at 110 V~)
- Vidutinės sąnaudosup to 1 W
- Srovės apsaugamore than 11 A (when Current protection is enabled), more than 13 A (when Current protection is disabled), Once the current exceeds the specified level, the plug turns off automatically.
- Įtampos apsauga 230 V~ elektros tinkluimin — 184 V~, max — 253 V~, Once the voltage exceeds the specified levels, the plug turns off automatically.
- Įtampos apsauga 110 V~ elektros tinkluimin — 88 V~, max — 121 V~, Once the voltage exceeds the specified levels, the plug turns off automatically.
- Temperatūros apsaugamore than 185 °F, If protection is triggered, the plug turns off.
- Apsaugos nuo elektros smūgio klasėClass I (with grounding terminal)
- Bendravimas
- Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
- Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
- Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW
- Radijo signalo moduliacijaGFSK
- Radijo ryšio veikimo nuotolisup to 3,300 ft, Between the device and a hub (or a range extender) in an open space., Calculate the radio communication range at the facility
- Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
- Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
- Pagrindinės savybės
- Valdymas per išmanųjį telefonąThe user can set up the plug configurations and receive a detailed event log in the Ajax app.
- Automatizavimo scenarijaiBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO 2 concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
- Energijos sąnaudų stebėjimo priemonėControl of the current, voltage, power, and electric energy consumed by connected appliances.
- Adjustable pulse duration 2from 1 to 255 s
- LED indikacijaInforms about the plug’s state and the power consumption of connected appliances with different colors. The brightness of the LED frame can be adjusted or turned off in the Ajax app.
- Veikimo režimaipulse 2, bistable, 2 Available on devices with firmware version 5.54.1.0 or higher manufactured after March 4, 2020.
- Kontakto būsenanormally open, normally closed
- ChildproofingThe plug is equipped with special internal shutters. They protect children by preventing them from inserting items like screwdrivers, scissors, or hairpins into the plug and also guard against dust and splashes.
- Apsauga nuo sabotažo
- Apsauga nuo klastojimodevice authentication
- Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Korpusas
- Matmenys1.77" × 1.77" × 2.58"
- Svoris2.05 oz
- Darbinės temperatūros diapazonasfrom 32 °F to 104 °F
- Drėgmėup to 75% with no condensation
- Apsaugos klasėIP20
