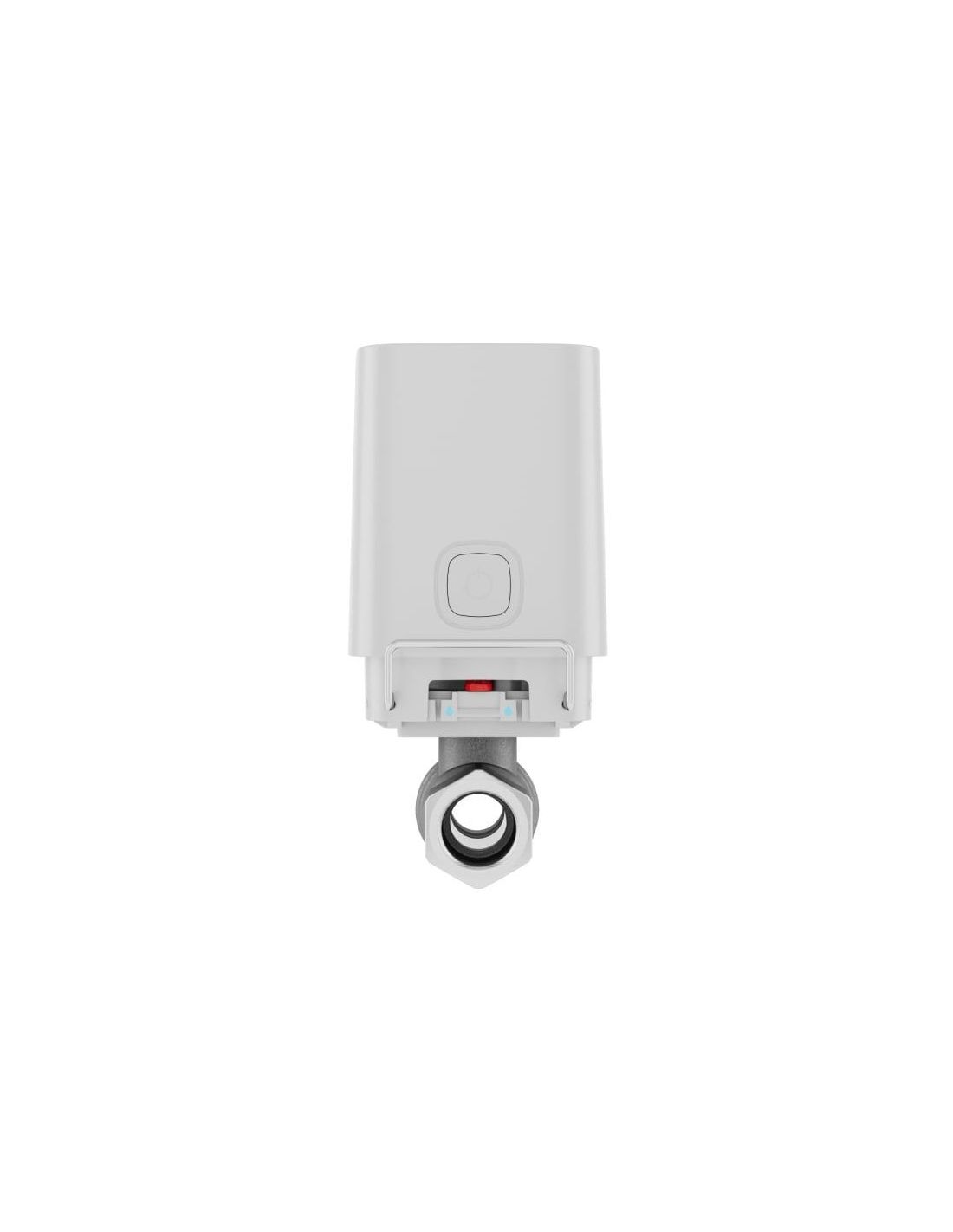

Bevielė elektrinė vandens sklendė Ajax WATERSTOP 52269.155.WH1 (balta)
AJAX
AJWATERSTOPB34
Yra sandėlyje
318,13 €
Nėra mokesčio
- Tipas: Belaidė elektrinė vandens sklendė
- Modelis: Ajax WATERSTOP 52269.155.WH1 (3/4", balta)
- Valdoma per Ajax programėlę internetu iš bet kurios vietos
- Užveria vandenį per 7 sek. aptikus nuotėkį (LeaksProtect ar suderinamas jutiklis)
- Patikima sklendė su elektrinė pavara
- Galimybė nustatyti uždarymą pagal laiką ar sistemos įjungimą
- Bendravimas
- Jeweller ryšio technologijaProprietary wireless technology for events transmission., Features:, Two-way communication., Protection against device spoofing., Block encryption featuring a floating key., Instant notifications., Remote configuration via Ajax apps., Learn more
- Radijo dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the region of sale.
- Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Automatic power adjustment to reduce power consumption and the effect of radio interference.
- Radijo signalo moduliacijaGFSK
- Radijo ryšio veikimo nuotolisup to 3,600 ft, Between device and hub (or radio signal range extender) without obstacles., Calculate the radio signal range at the object
- Radio signal encryptionBlock encryption with a floating key protects all the data stored and transmitted.
- Dažnių šuoliaiPrevents radio interference and jamming., Learn more
- Operating components
- Shutoff valve¾" (DN 20) RuB valve, Included in the complete set.
- Electric actuatorOpens or closes the valve.
- Mounting platformTo install an electric actuator on a shutoff valve.
- Mounting lockersTo fix an electric actuator on a shutoff valve., The complete set includes two options:, standard (pre-installed), anti-sabotage
- Shutoff valve
- Fields of applicationwater supply and heating systems
- Operating fluidhot and cold water, non-aggressive liquids
- Medžiagabrass
- Connection type and threadNPT taper (ANSI B.1.20.1), female-to-female threads
- Thread size¾" (DN 20, 20 mm)
- Operating liquid temperature rangefrom -4 °F to 350 °F, Freezing of the fluid in the pipeline may severely damage the valve and electric actuator.
- Mounting platformto mount an electric actuator on a shutoff valve, Complies with the ISO 5211 standard.
- Lever on mounting platformTo manually shut off the water supply without tools in case of emergencies.
- Electric actuator
- Torqueup to 8.5 N•m
- Operating pressureup to 145 psi
- Shut-off speedup to 7 seconds, The value may increase if the valve is clogged or stuck.
- Nuotolinis valdymascontrol and configuration in Ajax apps, Apps provide all information about the device: current valve state (open/closed), statuses of battery charge, external power supply, and communication with a hub.
- Manual controlthe control button on the electric actuator enclosure, Opens/closes the valve when pressed.
- Papildomos funkcijos
- Instaliacijadoes not require tools and enclosure disassembling, 4 possible mounting positions of electric actuator towards the valve, anti-sabotage locker to complicate unauthorized dismount of an electric actuator, The design allows maintenance, and repair in hard-to-reach places: pipe tunnels, technical boxes, walls, etc. It is possible to replace the actuator unit without dismantling the shutoff valve.
- LED indikacijaThe LED placed under an Ajax logo on enclosure and reports the electric actuator states.
- Automatizavimo scenarijaialarm reactions, security mode change reactions, scheduled actions, temperature scenarios, humidity scenarios, CO 2 level scenarios, by pressing Button, by pressing LightSwitch, Learn more
- Overheating notificationThe notification is sent to Ajax apps when the device temperature tops 140 °F and when it returns to normal.
- Apsauga nuo sabotažo
- Apsauga nuo klastojimodevice authentication
- Communication failure detectionin 36 s, The time depends on the Jeweller (or Jeweller/Fibra ) settings., Learn more
- Sabotažo signalasNotifies about attempts to detach the enclosure from the mount., Learn more
- Mounting lockers for fasteningThe complete set includes two options:, Standard locker (pre-installed) — fixes an electric actuator on a shutoff valve. Removes easily for a quick access to the valve., Anti-sabotage locker — used instead of a standard locker. Securely fixes an electric actuator on the valve to complicate an unauthorized dismount.
- Maitinimas
- Pre-installed batteries4 × CR123A battery, Up to 3 years of battery life.
- Optional external power supply7.5–14 V⎓, from 1.8 A, The recommended parameters of the external power supply are 9–12 V⎓, 2 A. The batteries serve as a backup when an external power supply is connected. Use a round 2 × AWG22 cable with an external diameter of 3.0–3.7 mm to connect an external power supply.
- Matmenys
- Shutoff valve with an electric actuator4.09" × 5.91" × 2.76"
- Electric actuator3.66″ × 2.76″ × 3.74″
- Shutoff valve3.15" × 1.26"
- Svoris35.7 oz, Shutoff valve with an electric actuator., 18.9 oz, Electric actuator., 16.79 oz, Shutoff valve.
- Darbinės temperatūros diapazonasfrom 32 °F to 140 °F
- Drėgmėup to 95%
