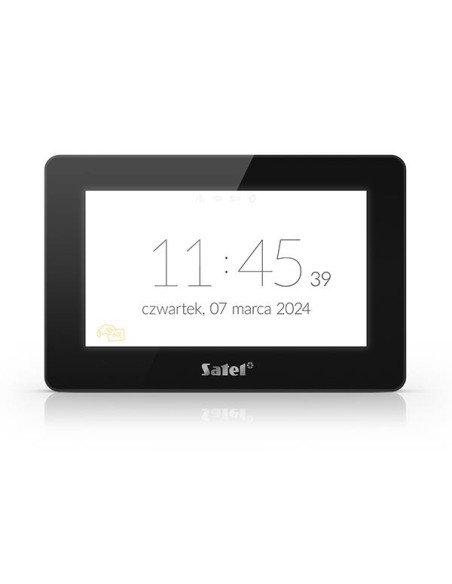

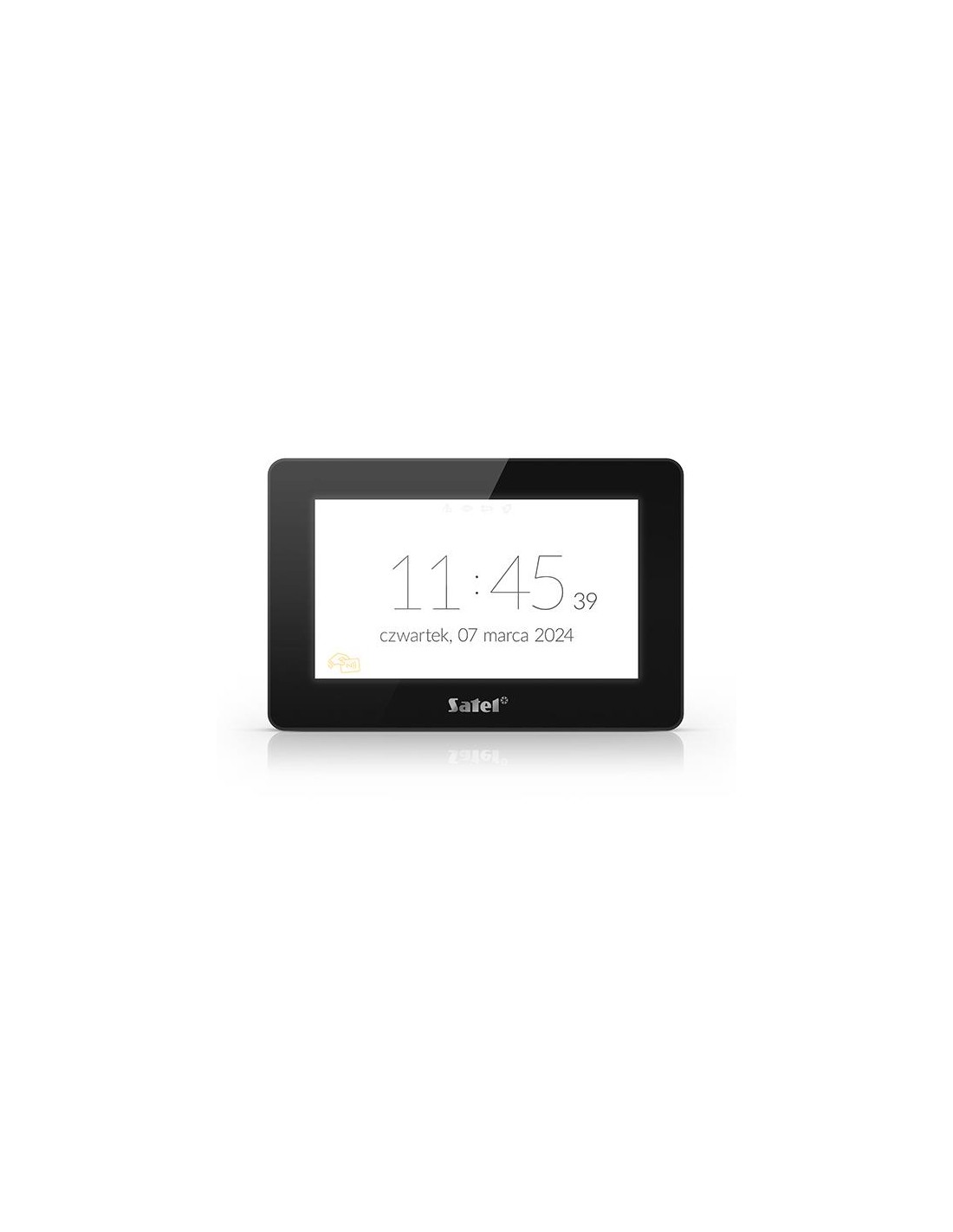

KEYPAD TOUCHSCREEN INTEGRA/MIFARE INT TSH2R-B SATEL

- 7" capacitive glass touchscreen with swipe gestures support - 1024x600 screen resolution, 16.7 million colours (true colour)

- multi-level user customisable graphic interface - up to 24 user screens

- customisable and adaptable interface screens
- more than 20 preset graphic themes
- custom themes support
- widgets for keypad operation, control of the alarm system and automation devices connected to the control panel
- system control via MACRO functions, which activate an entire chain of different commands (including building automation commands)
- quick activation of PANIC, FIRE, AND MEDICAL alarms
- integration with the INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels
- screensaver with options to display clock, date, system component statuses (zones, doors, exits), and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)
- option to display a slideshow (photo frame function)
- current system status notifications displayed on the taskbar
- built-in MIFARE® proximity card reader (13.56 MHz) (supported by INTEGRA and INTEGRA Plus control panels only): - Ultralight CSN/SSN
- Classic CSN/SSN/MSN
- DESFire (EV1 / EV2 / EV3) CSN/MSN

- 2 programmable hardwired zones (INTEGRA and INTEGRA Plus only) - support for NO and NC type detectors, as well as roller shutter and vibration detectors;
- support for EOL, 2EOL and 3EOL configuration (3EOL in with the INTEGRA Plus only);
- programming of end-of-line resistor values

- built-in speaker for acoustic signalling
- adjustment of acoustic signalling volume
- adjustable screen brightness with day/night mode
- built-in microSD memory card slot (for storing photo frame pictures, additional screen wallpapers and custom sounds for audible signals of zone violations - chimes)
- tamper contact responding to the enclosure opening or detaching from the wall
- available in white (INT-TSH2R-W) and black (INT-TSH2R-B) enclosure
