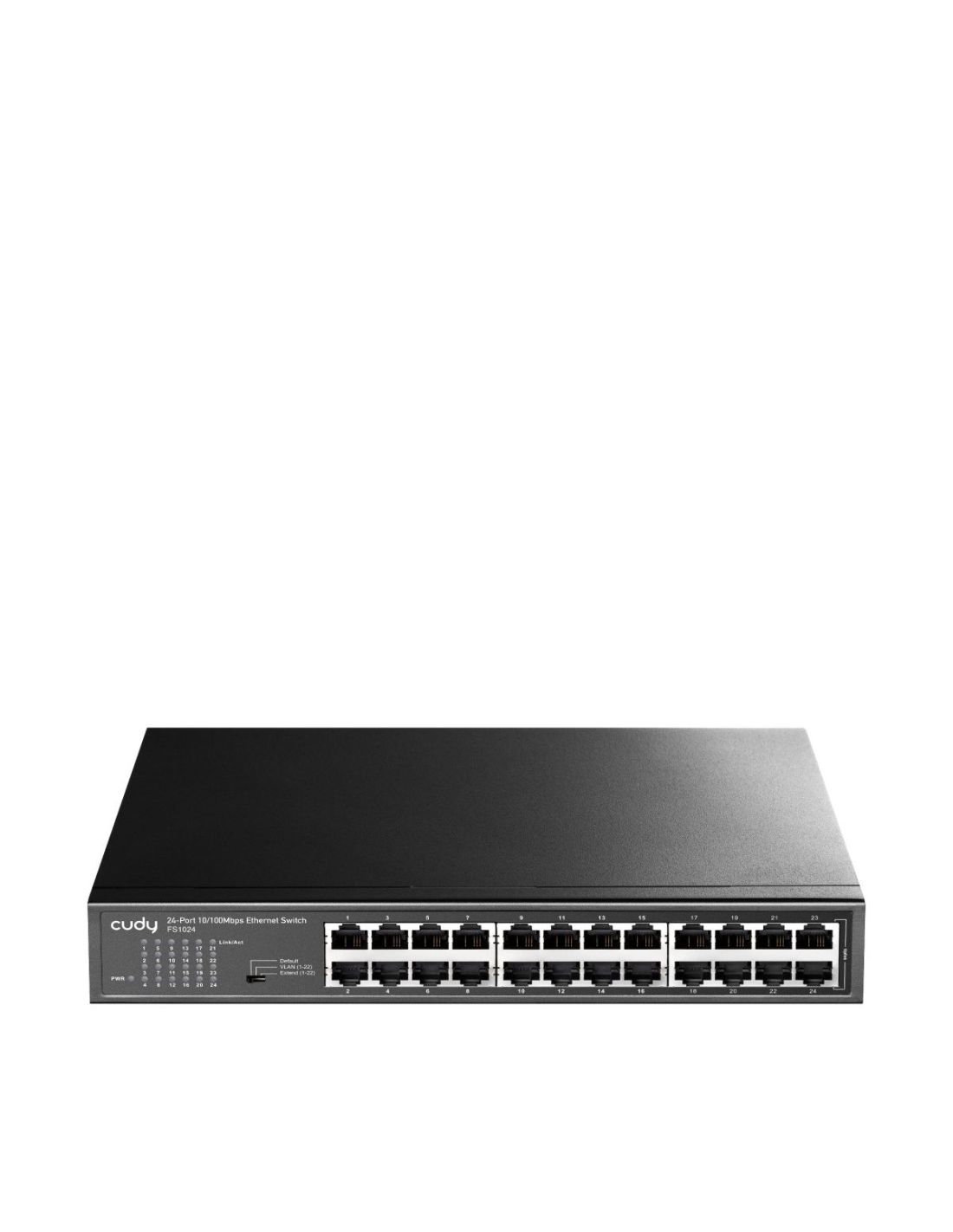

➤ 24 prievadų komutatorius CUDY FS1024
  • Nauja
➤ 24 prievadų komutatorius CUDY FS1024

24 prievadų komutatorius CUDY FS1024

SWITCHCUDYFS1024
Yra sandėlyje
49,37 €
Nėra mokesčio
  • Tipas: Komutatorius
  • Modelis: CUDY FS1024
  • Portai: 24 x PoE (100 Mbps)
  • PoE galia per portą: iki 30 W
  • Perdavimo talpa: 4,8 Gbps
  • Perdavimo našumas: 3,57 Mpps
  • MAC adresų lentelė: 8K
  • Extend režimas: >250 m @ 10 Mbps
  • Darbo režimai: VLAN / Default / Extend
  • Standartai: IEEE 802.3af/at
  • Montavimas: Rack
  • Darbinė temperatūra: 0°C iki 40°C

  • Bendrieji duomenys
  • ModelisGS1010PS2
  • Ethernet prievadai8× Gigabit PoE Ethernet Ports, 2× Uplink Gigabit Ethernet Ports, 2× Uplink Gigabit SFP Slots
  • PoE StandardsIEEE802.3af (15.4W), IEEE802.3at (30W)
  • Pralaidumas24 Gbps
  • Paketų persiuntimo greitis17.856 Mpps
  • Memory Cache448 Kbit
  • MAC adresų lentelė2K
  • Jumbo paketas2048 bytes
  • Transfer ModeStore and forward
  • Supported Network ProtocolsIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control), IEEE802.3z (Gigabit Ethernet Fiber Standard)
  • Industry StandardsEMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
  • Network Medium10Base-T: Cat3/4/5 UTP (≤100m), 100/1000Base-TX: Cat5 or above UTP (≤100m)
  • Optical MediumMultimode: 50/125, 62.5/125, 100/140 µm; Single-mode: 8/125, 8.7/125, 9/125, 10/125 µm
  • Darbo temperatūra-10~50°C
  • Laikymo temperatūra-40~70°C
  • Darbo drėgnumas10%~90%, non-condensing
  • Laikymo drėgnumas5%~90%, non-condensing
  • LED indikatoriaiPWR (Power), 1-12 Green Light (Link & Data): On = Link normal, Flashing = Data transmitting
  • DIP Switch – Extend ModeOff: <100m, adaptive speed, watchdog off; On: Ports 7-8 at 10 Mbps, up to 250m, watchdog active
  • Įėjimo įtampaAC 100–240V
  • Power Supply Output52V 2.3A (120W)
  • Gaminio dydis220×161×44.5 mm
  • Package Size315×215×85 mm
  • Pakuotės turinysSwitch (1x), Power cord (1x), User manual (1x)
  • Specialios funkcijosUplink GbE & SFP slots, Extend mode up to 250m, PoE watchdog, PoE Port Priority, fanless metal design
