- Tipas: Komutatorius / PoE praplėtėjas

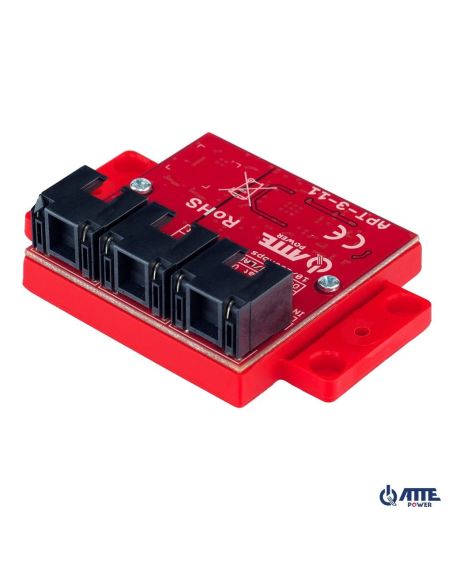

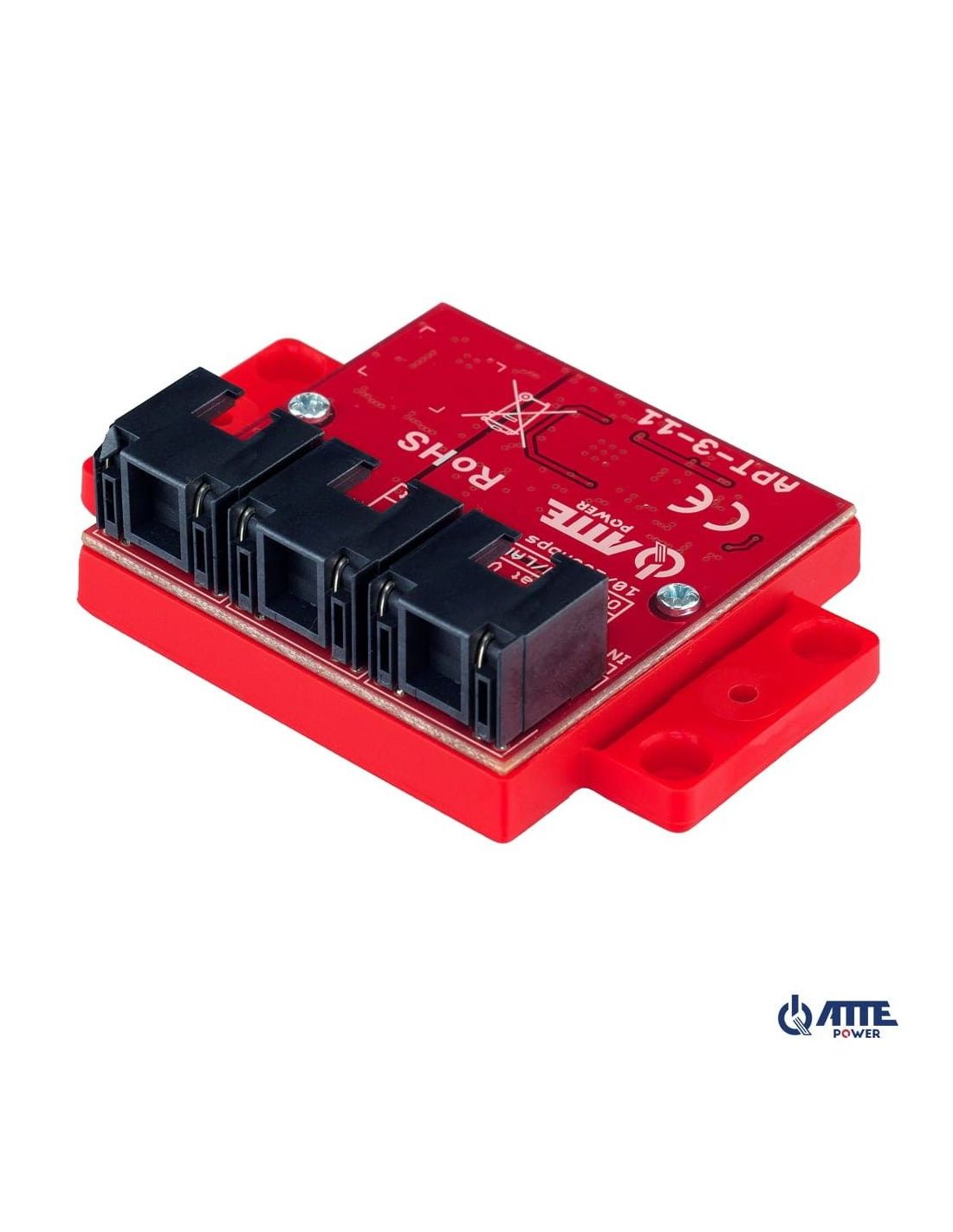

- Modelis: ATTE APT-3-11
- Prievadai: 3 (LAN1 įėjimas, LAN2–3 išėjimai)
- PoE įėjimas: LAN1 – 802.3af/at, pasyvus PoE
- PoE išėjimas: LAN2–3 – 802.3af/at
- Greitis: 100 Mbps
- Įtampa: 58 V
- Galia: 0.3 W
- Apsauga: Viršįtampių ribotuvas
- IP klasė: IP20
- Darbinė temperatūra: -25...+65 °C
- Specifikacijos
- PoE IN:LAN 1 PoE 802.3af/at, Passive PoE
- PoE OUT:LAN 2 ... LAN 3 PoE 802.3af/at
- LAN 10/100Mbps ports:LAN 1 ... LAN 3
- LAN + PoE OUT 10/100Mbps ports:LAN 2 ... LAN 3
- Input Voltage:44 ... 58 V
- Output PoE Voltage:Vout = Vin
- Power consumption:0,3 W
- Output power control:Auto-negotiation
- Surge protection:LAN 1 ... LAN 3
- Overload protection:LAN 2 ... LAN 3 Overload protection up to 0,7 A
- Power indication:LAN 1 (yellow) - PoE power IN
- PoE indication:LAN 2 ... LAN 3 (yellow) - PoE power OUT
- Transmission indication:LAN 1 ... LAN 3 (green) - link and data transmission
- Temperature range:-25°C ... +65°C
- Dimensions:51 x 51 (73) x 21 mm
- Weight:0,026 kg
- IP rating:IP20
- Housing construction:Uniwersal mounting base
- Assembly:Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface
- EAN code:5902143691396
- PKWiU code:26.30.23.0
- HS code:8517 62
- CN2020 code:8517 62 00
