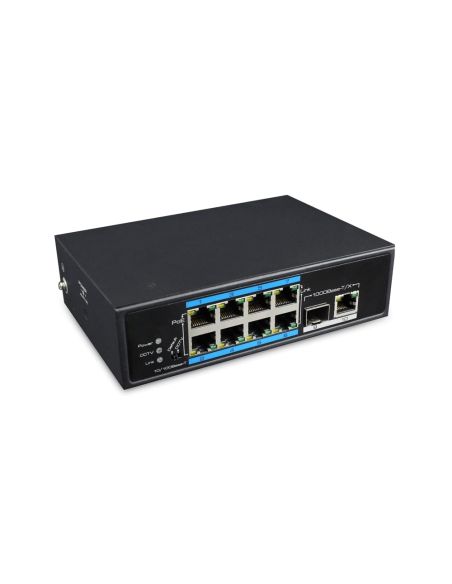

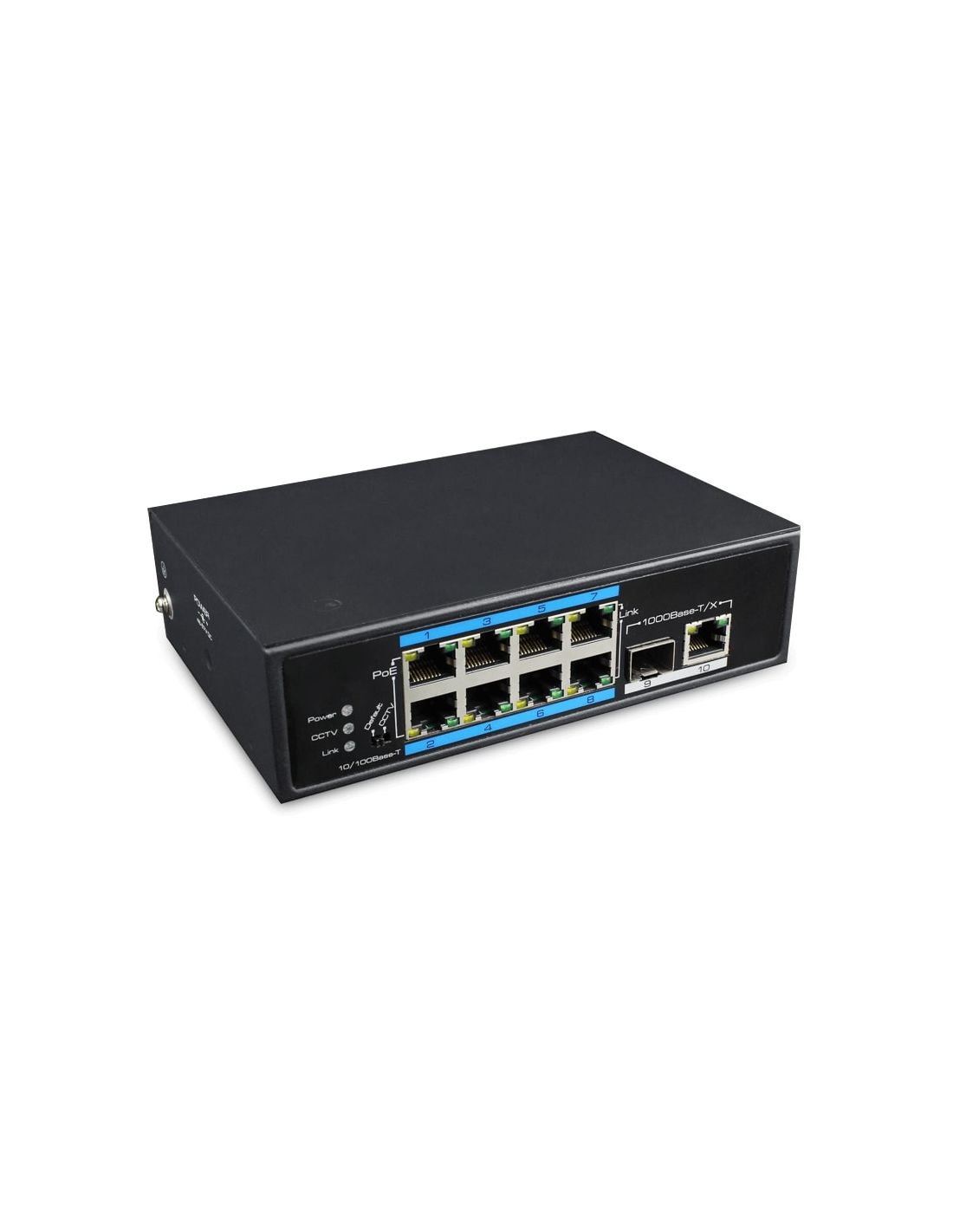

8 prievadų, 8 PoE pramoninis komutatorius UTEPO UTP7108E-POE
Utepo
SWITCHUTP7108EPOE
Išparduota
100,36 €
Nėra mokesčio
- Pramoninis 8 jungčių PoE komutatorius
- 8*10/100Base-T RJ45 PoE jungtys
- 1*10/100/1000Base-T RJ45 jungtis
- 1*1000Base-X SFP jungtis
- POE perdavimo atstumas iki 250m
| Modelis | UTP7108E-POE |
| Downstream jungtys | 8* 10/100Base-TX PoE RJ45 |
| Uplink jungtys | 1*1000Base-X SFP Port and 1*10/100/1000Base-T RJ45 Port |
| Tinklo standartai | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, EEE802.3 X |
| Switch Fabric | 5.6Gbps |
| Pajėgumas | 4Mpps |
| Veikimas | Store and Forward |
| Atminties buferis | 1M |
| MAC lentelė | 8K |
| CCTV rėžimas | 1. Realize VLAN： 1～8 downlink PoE ports communicate with uplink ports only; 2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps; 3.PoE watchdog ( Detect POE device when it is frozen, reboot automatically) |
| PoE standartas | 802.3af/at |
| PsE tipas | End-span |
| Power Pin priskyrimas | 1/2(+)?3/6(-) |
| PoE maitinimo išvestis | 48~57V DC , 30 watts max |
| PoE Budge | 240 watts max(Default power supply: 120W) |
| Apsaugo nuo žaibo | 6KV Execute：IEC61000-4-5 |
| ESD | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute：IEC61000-4-2 | |
| Maitinimas | DC 48~57V |
| Maitinimo eikvojimas | ＜6W |
| Veikimo temperatūra | -30℃~65℃ |
| Santykinis oro drėgnumas(Non-condensin) | 5%-95% |
| Išmatavimai(L×W×H) | 159mm×110mm×44mm |
| Svoris | 500g |
| Reguliavimas | CE、FCC、ROHS |
