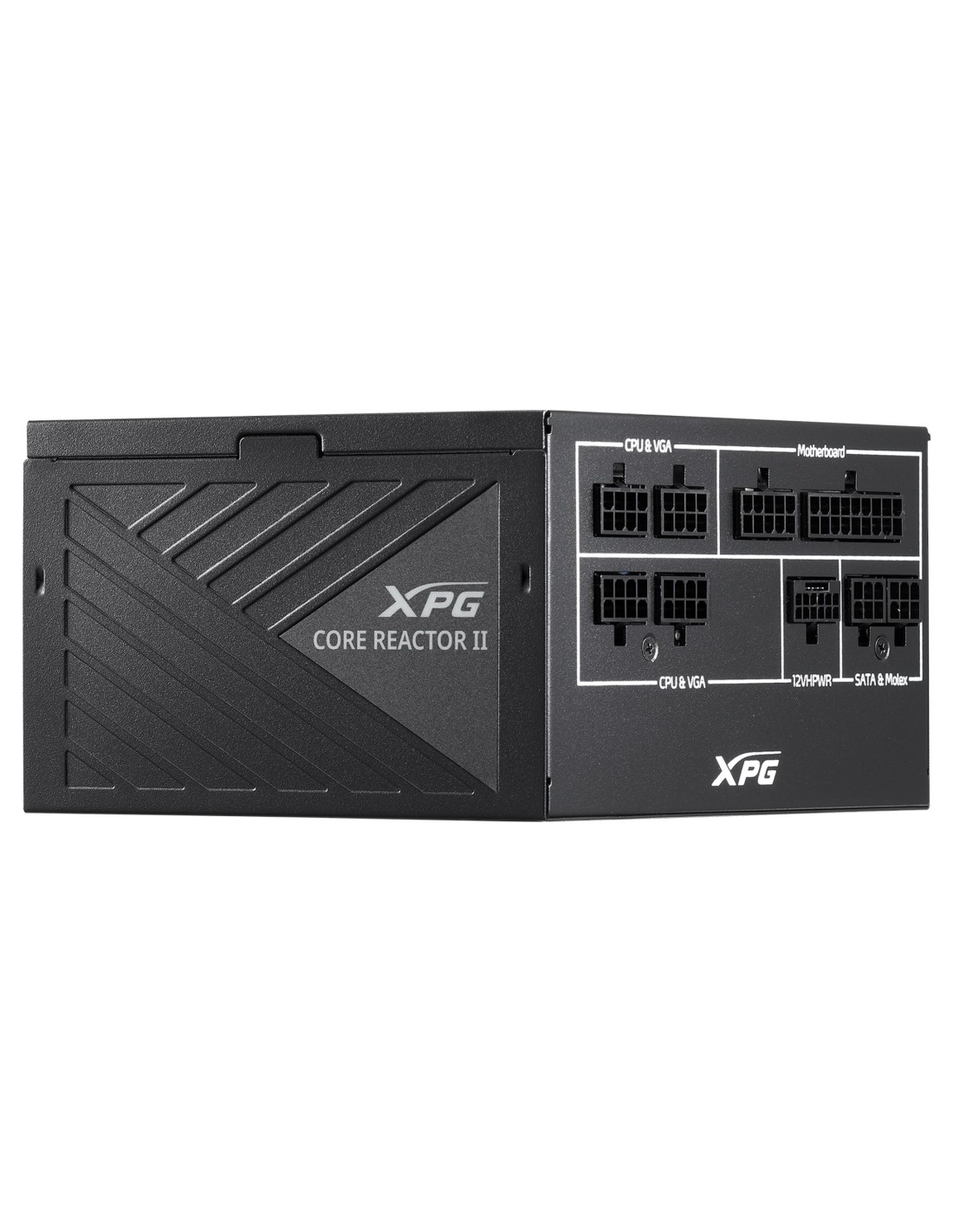

CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.
Certified GOLD Efficiency
CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.
Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.
Premium all 105°C Japanese Capacitors
CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
- Garantija
- 36
- Category Code
- PSU
- Model name
- CORE REACTOR II
- Vendor Homepage
- https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
- Unit Box Height
- 0.215
- Unit Box Length
- 0.341
- Unit Box Width
- 0.16
- Units per Shipping Box
- 4
- Unit Calculated Volume
- 0.01381 cubm
- Product Net Weight
- 3.05 kg
- Unit Calculated Weight
- 4 kg
- Summary
- XPG COREREACTOR II 1000W Power Supply. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS c
- Desktop Computer PSU | Power (AC input frequency)
- 50/60 Hz
- Desktop Computer PSU | Power (AC input voltage)
- 100 - 240 V
- Desktop Computer PSU | Power (Input current)
- 13 A
- Desktop Computer PSU | Power (Max output current (+12V))
- 83.5 A
- Desktop Computer PSU | Power (Max output current (+3.3V))
- 22 A
- Desktop Computer PSU | Power (Max output current (+5V))
- 22 A
- Desktop Computer PSU | Power (Max output current (+5Vsb))
- 3 A
- Desktop Computer PSU | Power (Max output current (-12V))
- 0.3 A
- Desktop Computer PSU | Power (Power factor)
- 0.99
- Desktop Computer PSU | Power (Power protection features)
- Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
- Desktop Computer PSU | Power (Total power)
- 1000 W
- Desktop Computer PSU | Ports & interfaces (ATX power connector (12+4 pin))
- Y
- Desktop Computer PSU | Ports & interfaces (ATX Power connector (24-pin))
- Y
- Desktop Computer PSU | Ports & interfaces (Cabling type)
- Fully-Modular
- Desktop Computer PSU | Ports & interfaces (EPS power connector (8-pin))
- Y
- Desktop Computer PSU | Ports & interfaces (Motherboard power connector)
- 24-pin ATX
- Desktop Computer PSU | Ports & interfaces (Number of SATA power connectors)
- 9
- Desktop Computer PSU | Ports & interfaces (PCI Express power connectors (6+2 pin))
- 8
- Desktop Computer PSU | Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 3
- Desktop Computer PSU | Performance (80 PLUS certification)
- 80 PLUS Gold
- Desktop Computer PSU | Performance (ATX version)
- 3.0
- Desktop Computer PSU | Performance (Bearing technology)
- FDB
- Desktop Computer PSU | Performance (EPS version)
- 2.92
- Desktop Computer PSU | Performance (Mean time between failures (MTBF))
- 100000 h
- Desktop Computer PSU | Performance (Power supply unit (PSU) form factor)
- ATX
- Desktop Computer PSU | Performance (Purpose)
- PC
- Desktop Computer PSU | Design (Cooling type)
- Active
- Desktop Computer PSU | Design (Fan diameter)
- 135 mm
- Desktop Computer PSU | Design (Number of fans)
- 1 fan(s)
- Desktop Computer PSU | Design (Product colour)
- Black
- Desktop Computer PSU | Certificates (Compliance certificates)
- BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/Federal Communications Commission (FCC)/Norma Oficial Mexicana (NOM)/RCM/UKCA
- Desktop Computer PSU | Weight & dimensions (Depth)
- 150 mm
- Desktop Computer PSU | Weight & dimensions (Height)
- 86 mm
- Desktop Computer PSU | Weight & dimensions (Weight)
- 1770 g
- Desktop Computer PSU | Weight & dimensions (Width)
- 160 mm
- Desktop Computer PSU | Packaging data (Package depth)
- 338 mm
- Desktop Computer PSU | Packaging data (Package height)
- 157 mm
- Desktop Computer PSU | Packaging data (Package weight)
- 3430 g
- Desktop Computer PSU | Packaging data (Package width)
- 210 mm
