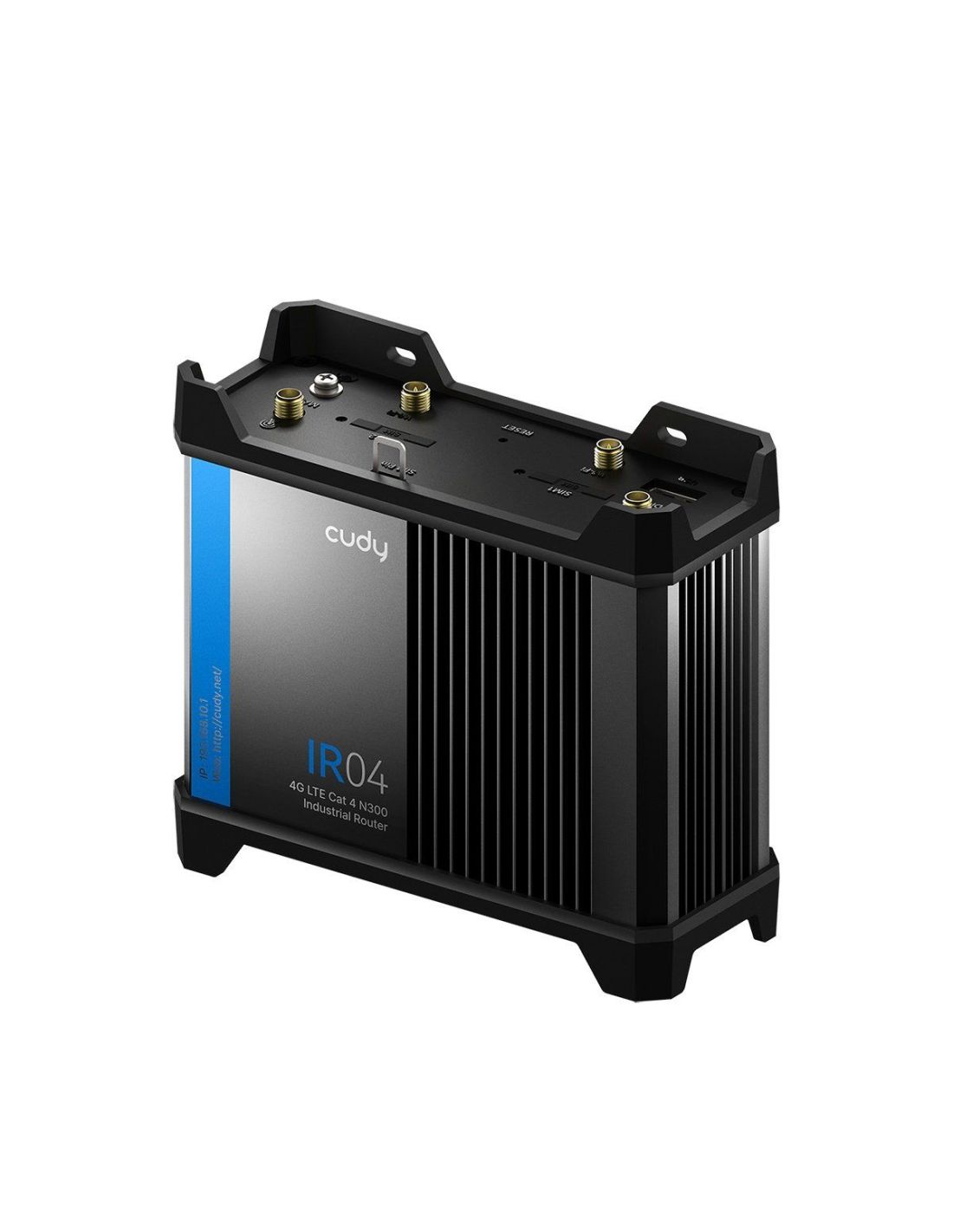

- Tipas: Pramoninis LTE modemas
- Prekės ženklas: Cudy
- Modelis: IR04
- Tinklo standartai: LTE (4G) / UMTS / GSM / GPRS Cat4
- Procesorius: MIPS24KEC 580 MHz
- SIM kortelės: 2
- Jungtys: 4× LAN, RS232/422/485, I/O
- Ryšys: Wi-Fi, SMS
- Maitinimas: DC 12–57 V, Passive PoE 24–57 V
- Apsaugos klasė: IP30
- Tvirtinimas: DIN bėgelis
- Bendrosios savybės
- ModelisIR04
- Įrenginio tipas4G LTE Cat. 4 Industrial Wi-Fi Router
- Cellular Standard4G LTE Cat. 4
- Max Download Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
- Max Upload Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
- Wi-Fi standartasWi-Fi 4 (802.11n)
- Wi-Fi Speed300 Mbps
- Wi-Fi Streams2×2 MIMO (2T2R)
- Wi-Fi Channel Width40 MHz
- Wi-Fi Modulation64-QAM
- Wi-Fi antenos2× Detachable RP-SMA (2.4 GHz Internal FEM/PA)
- SIM Slots2× Mini SIM (2FF), with adapter
- Mobiliojo ryšio antenos2× Detachable SMA
- Procesorius580 MHz Single-Core MIPS24KEC
- Atmintis128 MB DDR2
- Atmintis16 MB NOR Flash
- WAN prievadai1× 10/100 Mbps RJ45 (WAN/LAN configurable, 802.3at/af PoE IN)
- LAN prievadai3× 10/100 Mbps RJ45 (Passive PoE IN)
- USB prievadai1× USB 2.0 (Samba server supported)
- RS232/RS422/RS4851× DB9 port, 1× 6-PIN industrial socket
- Digital I/O10-PIN I/O: digital input/output, ADC, relay
- Ignition SensingAvailable via 4-PIN DC port
- Power InputsDC Jack, 4-PIN DC, Passive PoE, 802.3at/af PoE
- Power Input Range11–57V DC, PoE: 24–57V
- Maksimalus energijos suvartojimas9.6W
- Budėjimo režimo energijos sąnaudos2.8W
- Korpuso medžiagaAluminum Alloy
- Apsauga nuo dulkių ir drėgmėsIP30
- Darbinė temperatūra-40°C to 75°C / -40°F to 167°F
- Sandėliavimo temperatūra-40°C to 75°C / -40°F to 167°F
- Darbo drėgmė5% to 95% RH (non-condensing)
- Tvirtinimo parinktysDIN-Rail, Wall-Mount
- Matmenys129 × 114 × 50.6 mm (5.08 × 4.49 × 1.99 in)
- Mounting Space Requirement164 × 130 × 52 mm
- LED indikatoriaiPower, Cellular Signal, Link/ACT per port
- SertifikataiFCC, CE, EN62368, EN61373, EN55032/EN55035 Class A
- „Wi-Fi“ saugumasWPA/WPA2/WPA3
- Operation ModesCellular Router, Wi-Fi Router, WISP
- Tinklo protokolaiDHCP, Static IP, PPPoE, L2TP, PPTP
- IPv6 SupportSLAAC/DHCPv6, Static, Passthrough, 464XLAT, MAP-E, DS-Lite
- VPN palaikymasWireGuard, OpenVPN, ZeroTier, PPTP, L2TP, IPsec (client/server)
- Firewall & NATSPI, DoS Protection, DMZ, Port Forwarding, Port Triggering, UPnP
- Paslaugų kokybė (QoS)Per-user rate limiting, DHCP reservations
- Application Layer GatewaySIP, FTP, TFTP, H323, RTSP, IGMP Proxy/Snooping
- Scripting & AutomationOutput Schedulers, Digital/Analog Input Triggers, SIM Switch, Wi-Fi control
- USB FeaturesSamba server, Wake-on-LAN
- Valdymo metodaiConfig Web UI (HTTP/HTTPS), App (OTA), TR069, CLI, Dashboard
- Languages30+ including English, French, German, Spanish, Russian, Chinese, etc.
- Pakuotės turinysIR04 router, power adapter, antennas (Wi-Fi & LTE), connectors (6/10/4-PIN), Ethernet cable, SIM adapter kit, installation guide
