Channels 16 | Drives/bays 2 | Desktop/pedestal | Rack 1U | Integrated LAN Gigabit | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 1xRS232 | 1xUSB 2.0 | 1xUSB 3.0 | 1xRJ45 | 1xRS-485 | 4xAlarm In | 2xAlarm Out | Power supply requirements 12 VDC, 4 A | Power consumption 10 Watts | Dim. 375.0 × 284.4 x 56.0mm | Temp. range –10 °C to +55 °C

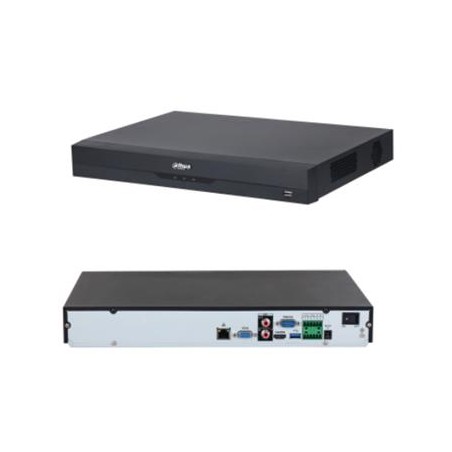

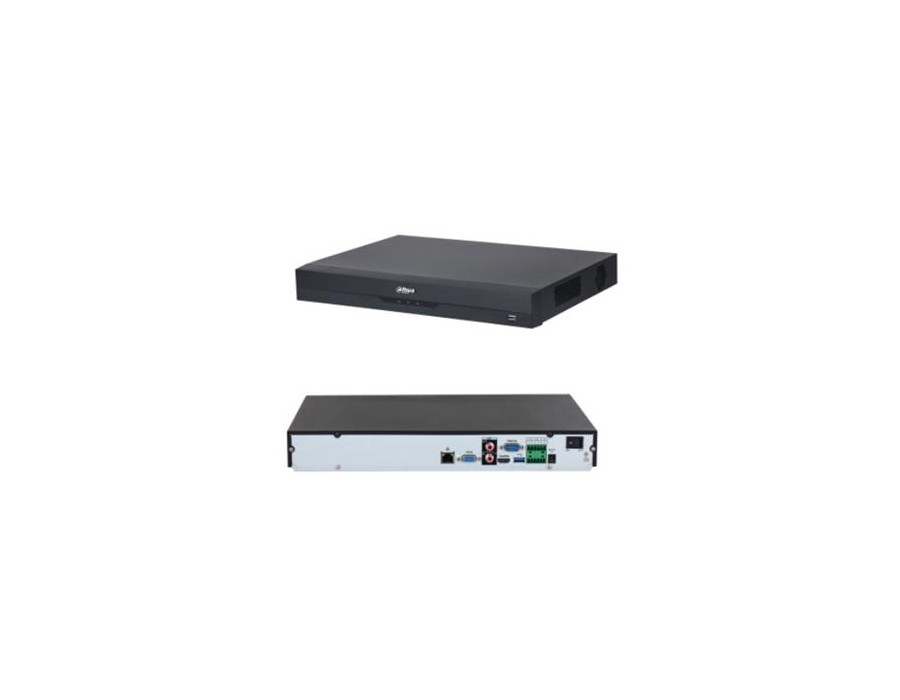

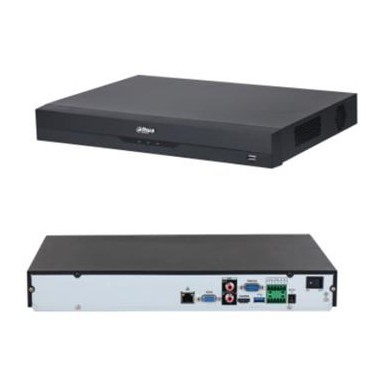

"16 Channels 1U 2HDDs WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps.
> Max. 384 Mbps incoming/recording/outgoing bandwidth.
> Support AcuPick with Max. 16-Channel.
> Support N+M cluster.
> AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
> AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
> Security baseline 2.3"
- Garantija
- 36
- Category Code
- NVR
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.57 kg
- Input/Output connectors (USB 2.0)
- 1
- Vendor Homepage
- www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI-Series/2HDD/NVR5216-EI
- Dimensions
- 375.0 284.4 x 56.0mm
- Model
- NVR5216-EI
- Power supply requirements
- 12 VDC, 4 A
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (15pin D-sub)
- 1
- Input/Output connectors (USB 3.0)
- 1
- Integrated LAN
- Gigabit
- Input/Output connectors (Audio-In)
- 1
- Input/Output connectors (RS232)
- 1
- Operating temperature range
- 10 C to +55 C
- Power consumption
- 10 Watts
- Mounting Type (Desktop/pedestal)
- Yes
- Mounting Type (Rack 1U)
- Yes
- Input/Output connectors (Alarm In)
- 4
- Input/Output connectors (Alarm Out)
- 2
- Number of Channels
- 16
- Number of drives/bays
- 2
- Input/Output connectors (RS-485)
- 1
