Channels 32|Drives/bays 2|Desktop/pedestal|Rack|CPU Industrial-grade processor|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375 × 284.3 × 53 mm|Temp. range –10 °C to +55 °C

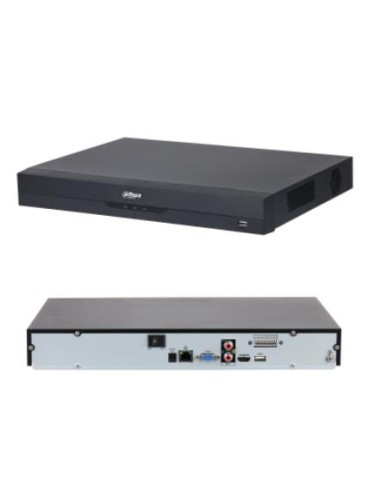

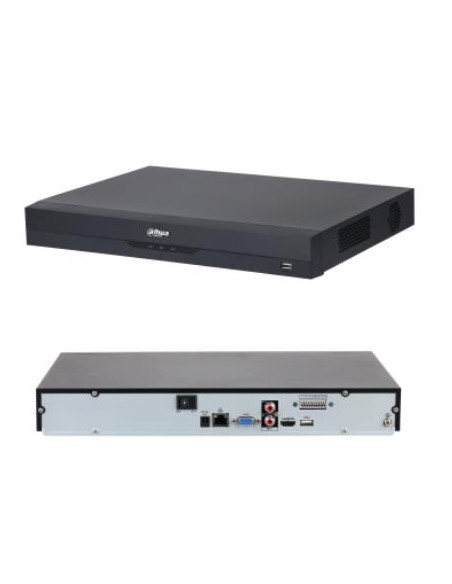

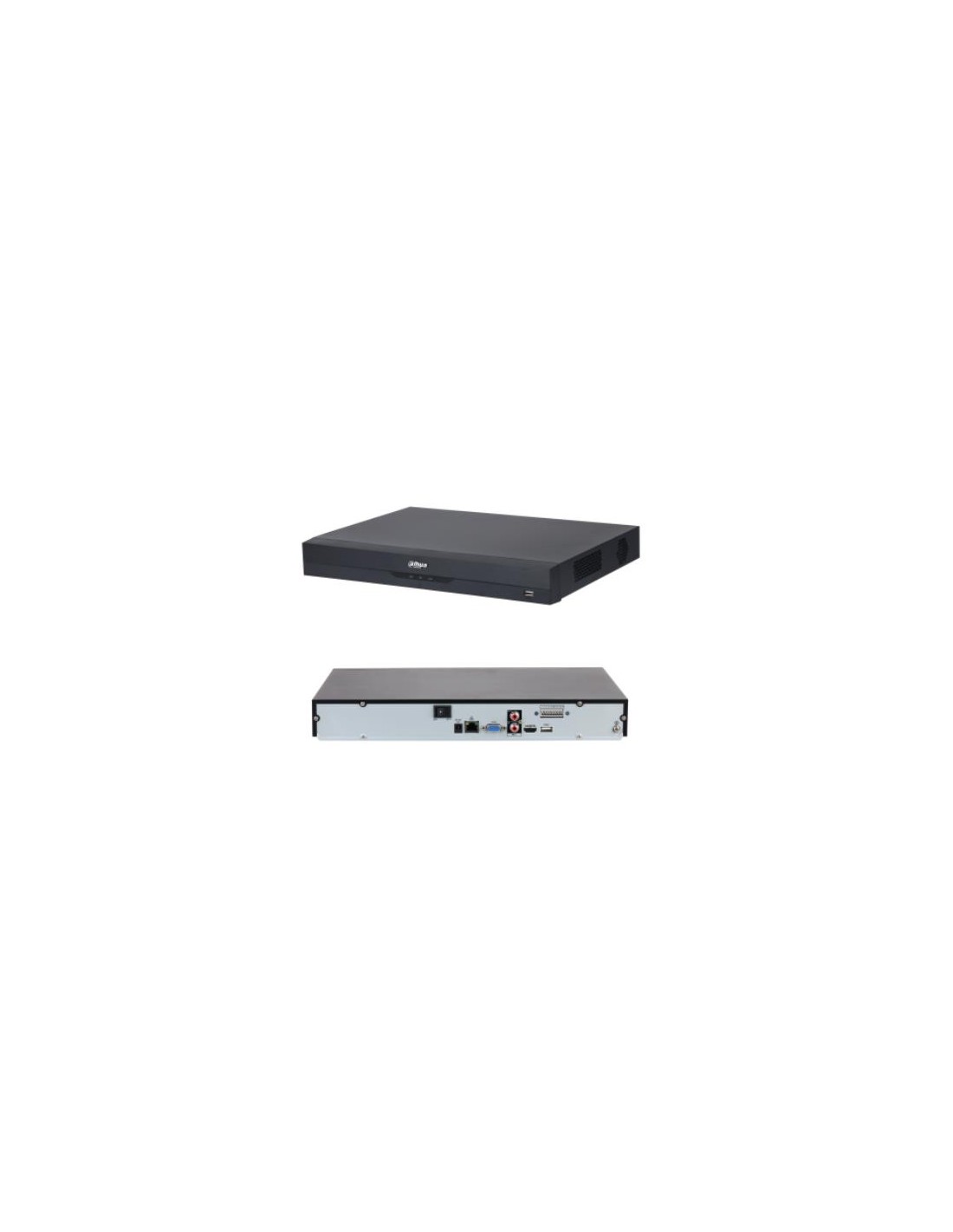

32CH 1U 2HDDs WizSense Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
> Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled)
> Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
> Connected to the third-party network cameras
> Security baseline 2.3
> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
> Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled)
> Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
> Connected to the third-party network cameras
> Security baseline 2.3
- Garantija
- 36
- Category Code
- NVR
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.51 kg
- Vendor Homepage
- www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4232-EI
- Dimensions
- 375 284.3 53 mm
- Model
- NVR4232-EI
- CPU
- Industrial-grade processor
- Mounting Type (Rack)
- Yes
- Power supply requirements
- 12 VDC, 4 A
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (15pin D-sub)
- 1
- Input/Output connectors (Audio-In)
- 1
- Operating temperature range
- 10 C to +55 C
- Power consumption
- 10 Watts
- Mounting Type (Desktop/pedestal)
- Yes
- Input/Output connectors (Alarm In)
- 4
- Input/Output connectors (Alarm Out)
- 2
- Number of Channels
- 32
- Number of drives/bays
- 2
6923172584304
