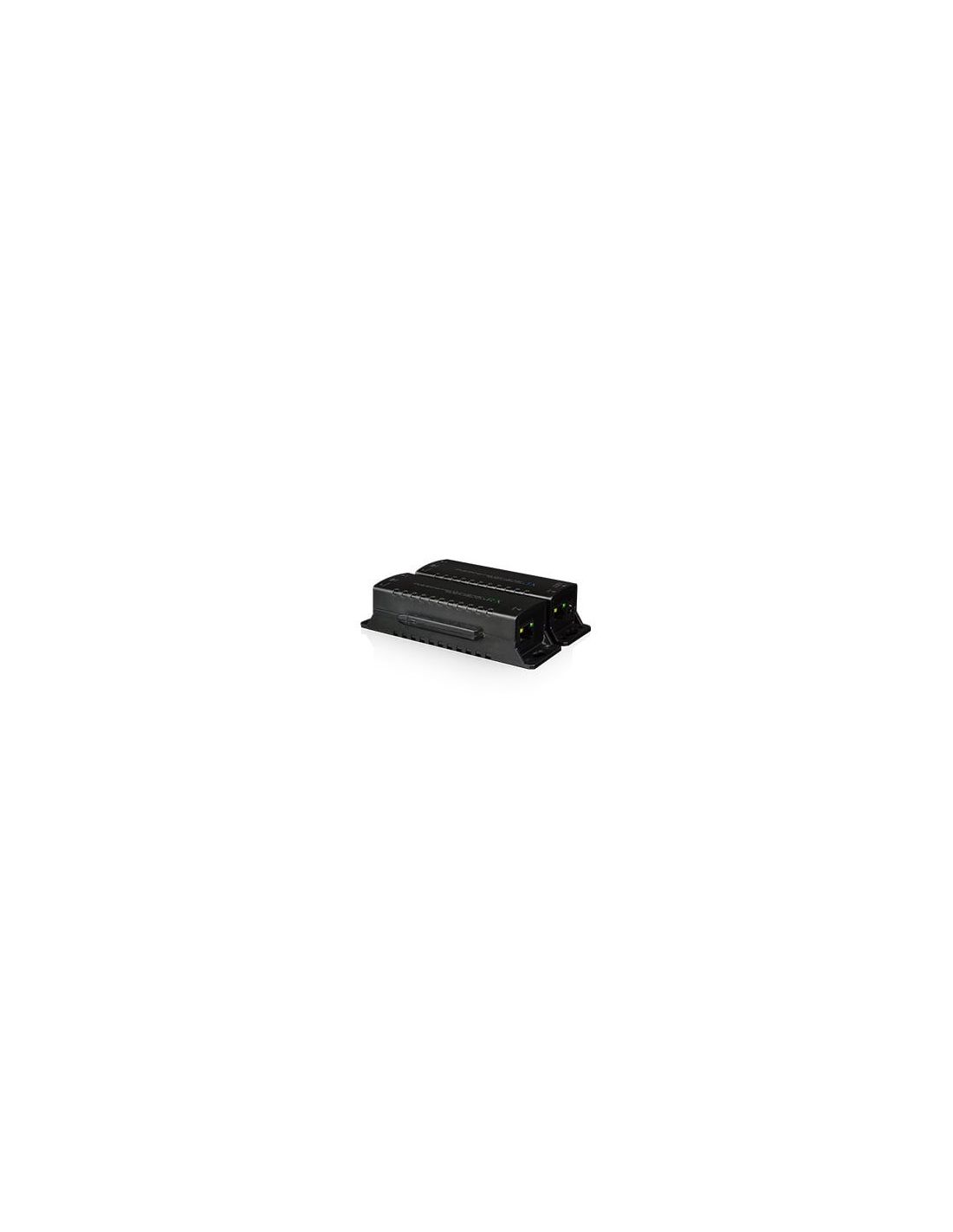

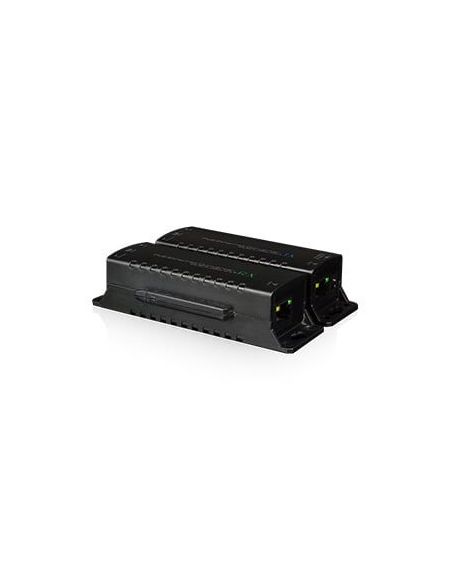

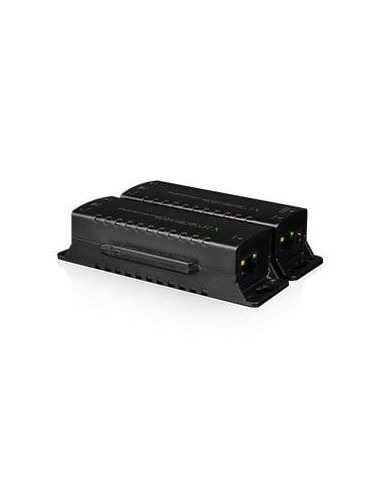

- PoE optinis konverteris
- Gali konvertuoti ir perduoti Ethernet signalą, maitinimą per optinį kabelį iki 20km atstumu
- Maks. duomenų sparta iki 155Mbps
|
Model |
UTP3-VMC01-PoE(SV Unit) |
UTP3-VMC01-PoE(IPC Unit) |
|
Network port |
1* 10/100Base-Tx |
1* 10/100Base-Tx |
|
Fiber Port |
1*9, SC |
1*9, SC |
|
wavelength |
T1550/R1310nm |
T1310/R1550nm |
|
Transmission distance |
20km |
|
|
Network standard |
IEEE802.3 、IEEE802.3u |
|
|
Delay |
＜20us |
|
|
PoE Standard |
802.3af/at (PD) |
802.3af/at (PSE) |
|
PsE Type |
End-span |
|
|
Power Pin Assignment |
1/2(+),3/6(-) |
|
|
PoE Power Output |
- |
≤30W |
|
Lightning protection |
2KV Execute：IEC61000-4-5 |
|
|
ESD |
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2 |
|
|
Power Supply |
PoE |
DC 48-57V |
|
Power Dissipation |
＜5W |
|
|
Work temperature |
-10℃~55℃ |
|
|
Storage temperature |
-40℃~85℃ |
|
|
Humidity(Non-condensin) |
5%-95% |
|
|
Dimension（L×W×H） |
113mm×45.5mm×29mm |
|
|
Weight |
58g |
|
|
EMC/Safety |
CE、FCC、ROHS |
|
