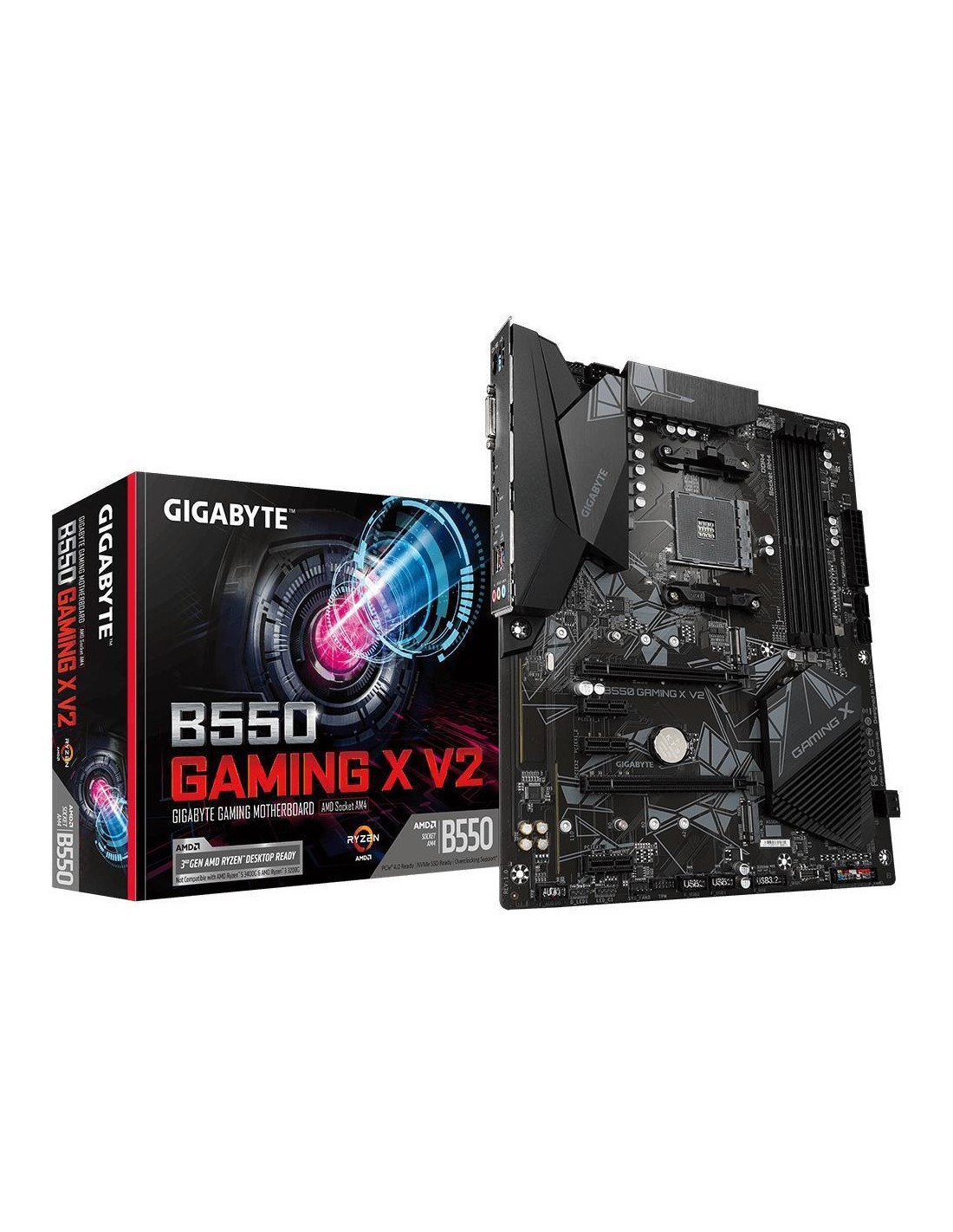

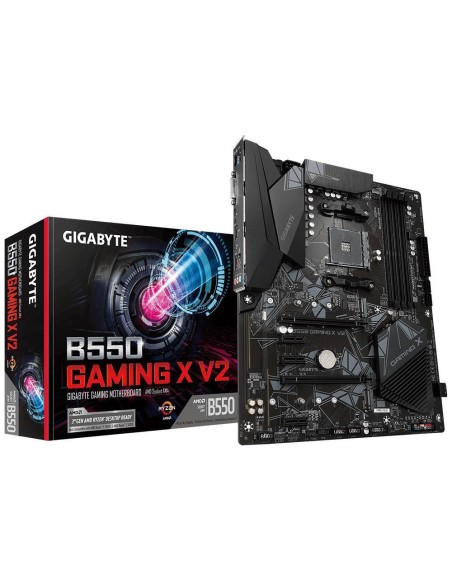

Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|
B550GAMINGXV21.3
Yra sandėlyje
95,55 €
Nėra mokesčio
AMD B550|SAM4|ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.4 kg
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.gigabyte.com/Motherboard/B550-GAMING-X-V2-rev-13 kf
- Form Factor
- ATX
- Frequency speed
- 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Memory type
- DDR4
- Model
- B550 GAMING X V2 (rev. 1.3)
- Socket
- SAM4
- Unit Box Height
- 0.08
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- Gigabit
- Chipset
- AMD B550
- Input/Output connectors (Audio-In)
- 2
- Input/Output connectors (DVI-D)
- 1
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Expansion slots (PCI-Express 3.0 1x)
- 3
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 10
- TPM
- Header
- Expansion slots (PCI-Express 3.0 2x)
- 1
- CnCode (CnCode)
- 84733020
