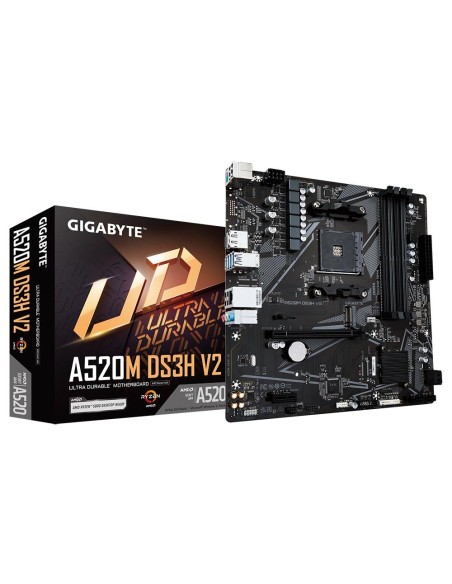

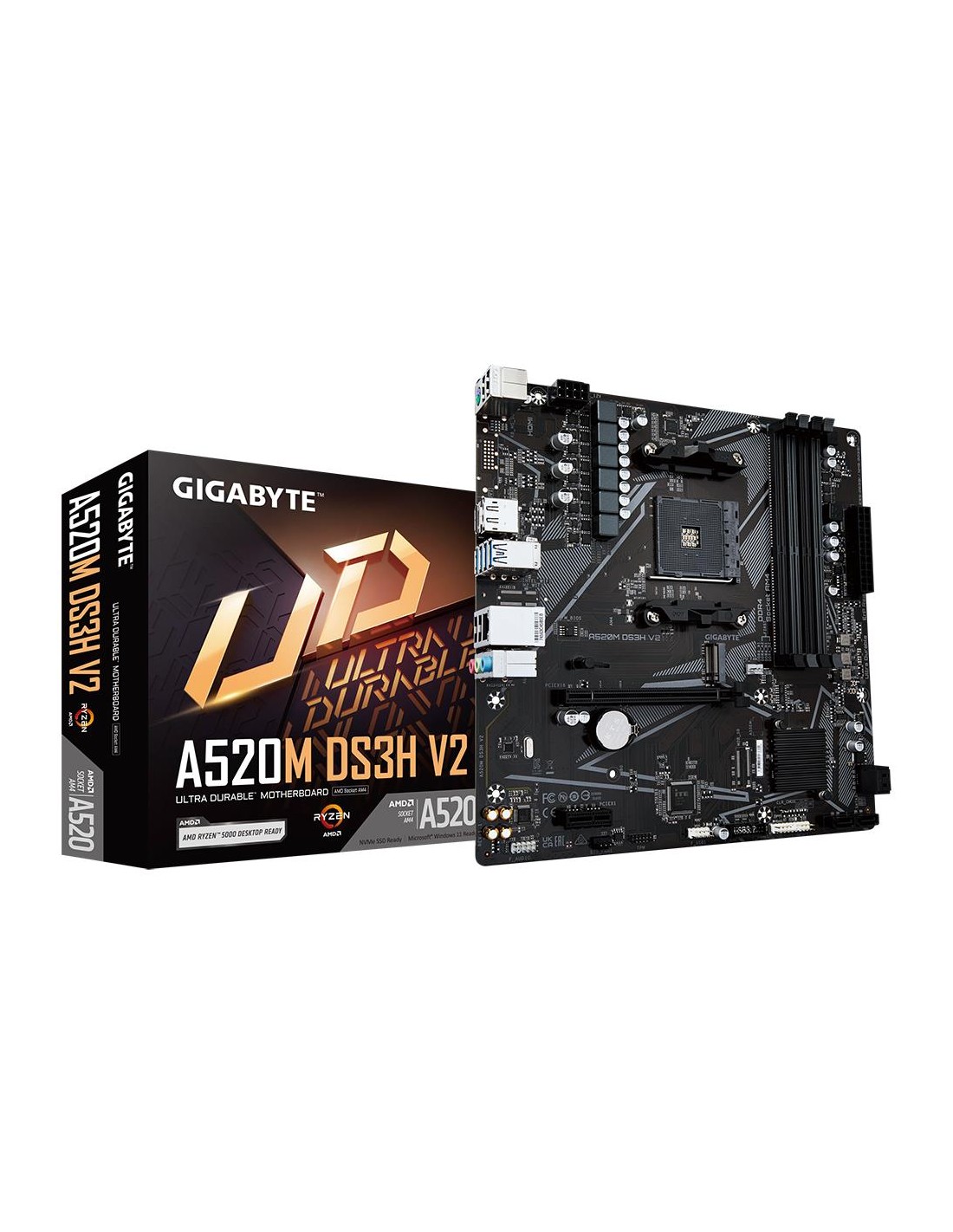

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|1x
A520MDS3HV21.1
Yra sandėlyje
59,17 €
Nėra mokesčio
AMD A520|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN|RAID SATA 0, 1, 10|TPM Header
AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 0.7 kg
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-11
- Form Factor
- Micro-ATX
- Frequency speed
- 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Memory type
- DDR4
- Model
- A520M DS3H V2 (rev. 1.1)
- Socket
- SAM4
- Unit Box Height
- 0.05
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- Yes
- Chipset
- AMD A520
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 1
- Expansion slots (PCI-Express 3.0 1x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- Expansion slots (PCI-Express 3.0 16x)
- 1
- RAID
- SATA 0, 1, 10
- TPM
- Header
- CnCode (CnCode)
- 84733020
4719331854690
