PRIMEB450M-AII Mainboard|ASUS|AMD B450|SAM4|MicroATX|2xPCI-Express 2.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 4

Mainboard|ASUS|AMD B450|SAM4|MicroATX|2xPCI-Express 2.0 1x|1xPCI-Express 3.0 16x|1xM.2|Memory DDR4|Memory slots 4|1x15pin D-sub|

Kodas PRIMEB450M-AII

Yra sandėlyje

74,36 €

Nėra mokesčio

Aprašymas
Prekės aprašymas

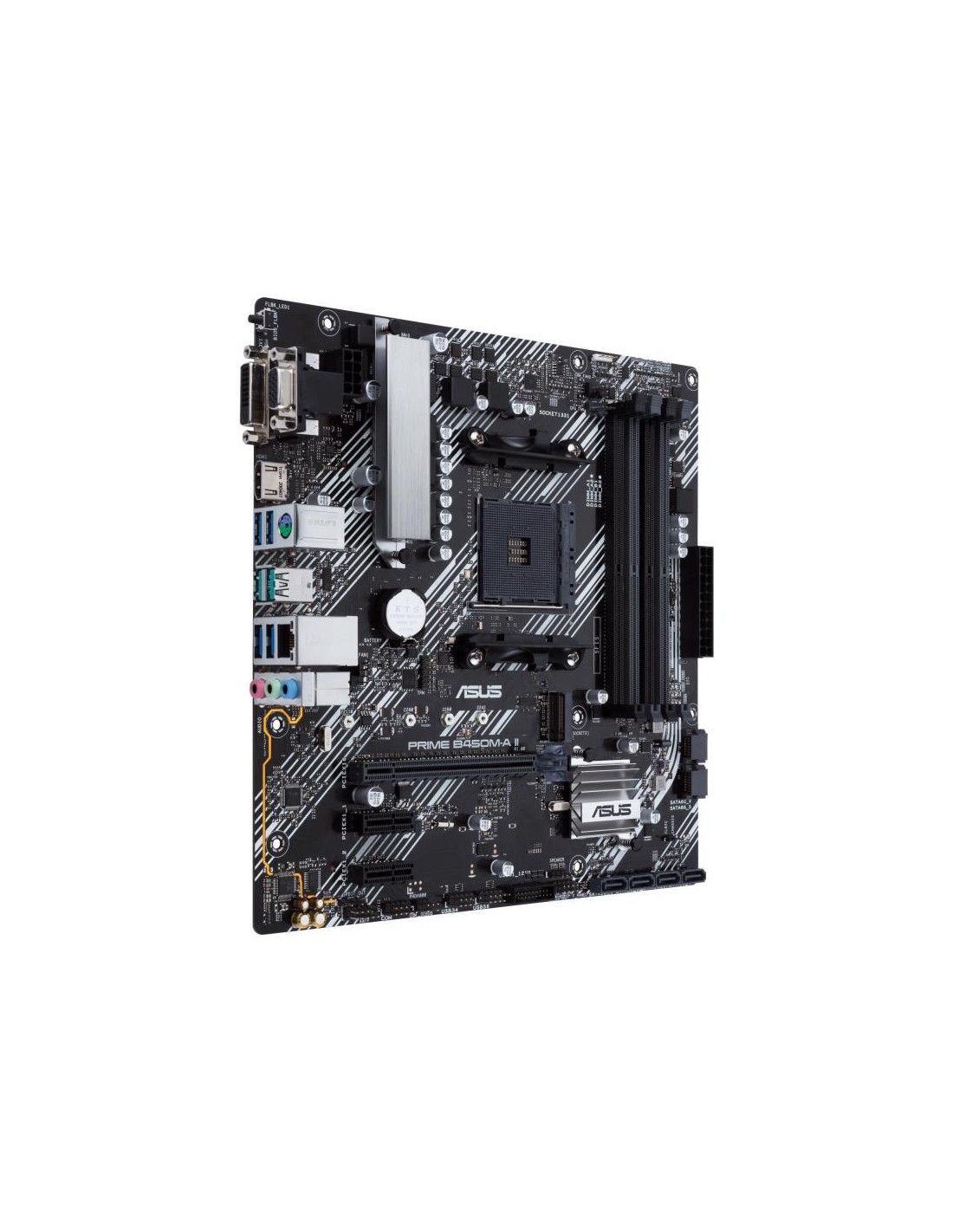

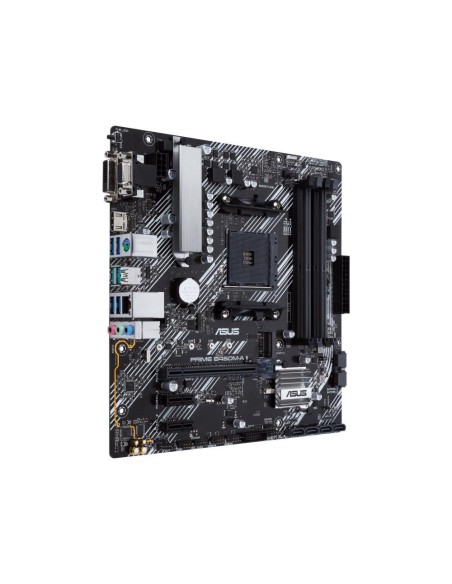

PRIME B450M-A II

AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack™, and Aura Sync RGB lighting support

Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A
5X Protection III: Multiple hardware safeguards for all-around system protection
Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware

Garantija: 36
Category Code: MBA
Input/Output connectors (HDMI): 1
Unit Net Weight: 0.65 kg
Vendor Homepage: www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B450M-A-II/
Form Factor: Micro-ATX
Frequency speed: 2133/2400/2666/2800/3000/3200/3300/3400/3466/3600/3733/3866/4000/4400 MHz
Memory type: DDR4
Socket: SAM4
Included Accessories: I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package
Input/Output connectors (USB 3.2): 6
Input/Output connectors (Audio-Out): 1
Input/Output connectors (RJ45): 1
Input/Output connectors (15pin D-sub): 1
Interface (SATA): Yes
Memory slots: 4
Integrated LAN: Realtek (Gigabit)
Chipset: AMD B450
Input/Output connectors (Audio-In): 2
Input/Output connectors (DVI-D): 1
Integrated video: Depending on CPU
Expansion slots (M.2): 1
Input/Output connectors (PS/2): 1
Integrated audio: Realtek ALC887
Expansion slots (PCI-Express 3.0 16x): 1
Expansion slots (PCI-Express 2.0 1x): 2
CnCode (CnCode): 84733020

ean13 4718017924986
