Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 2.0 16x|3xM.2|1xHDMI|1xDisplayPo
B650 A ELITE AX V2 1.1
Yra sandėlyje
179,33 €
Nėra mokesčio
AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 2.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

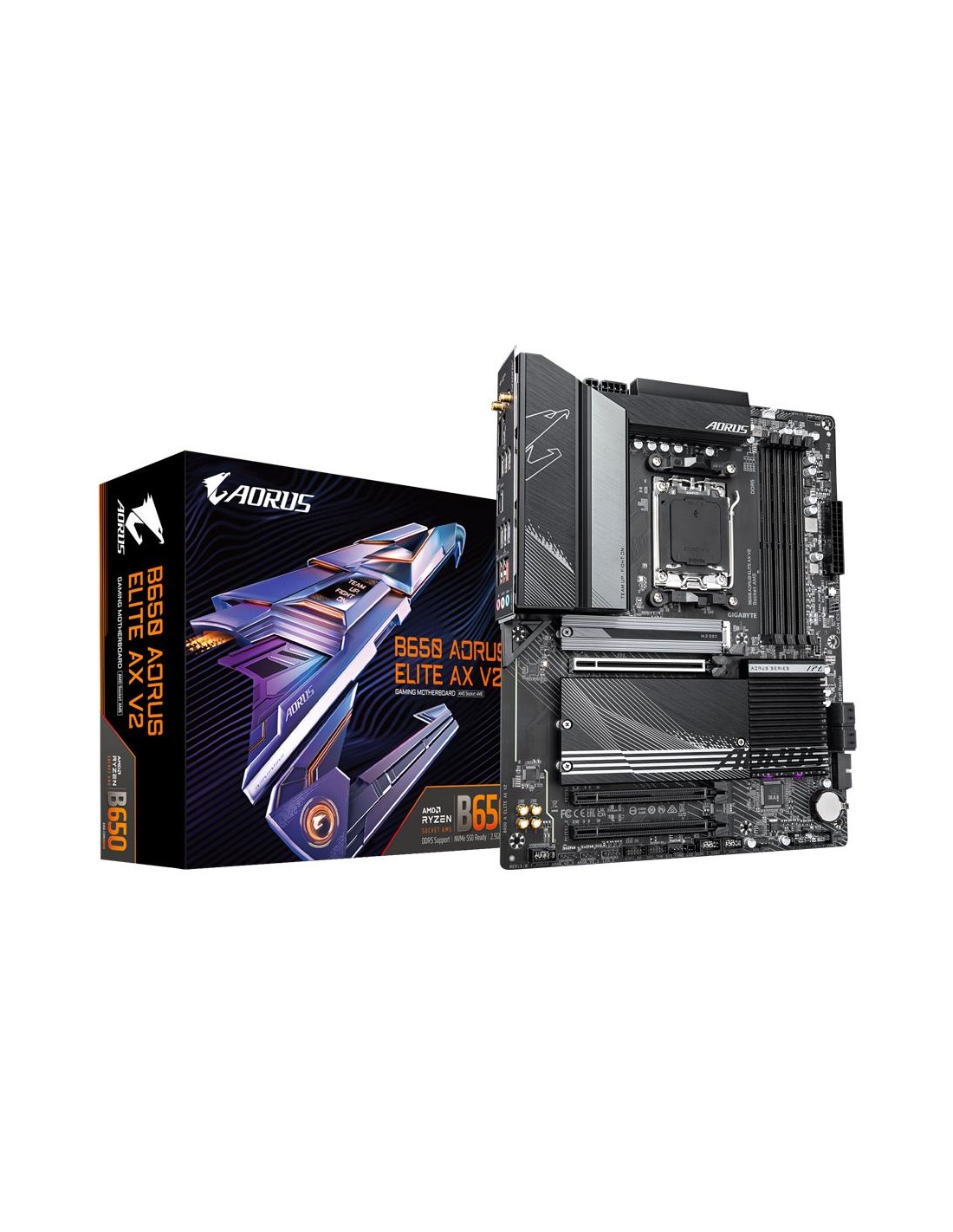

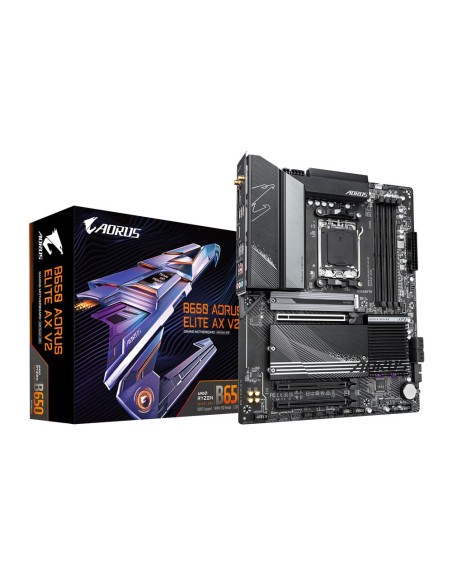

GIGABYTE B650 AORUS ELITE AX V2
AMD Socket AM5
Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Unparalleled Performance
Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage
1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard
To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch
PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks
2.5GbE LAN & Wi-Fi 6E
Extended Connectivity
HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card
AMD Socket AM5
Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
Unparalleled Performance
Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage
1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard
To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch
PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks
2.5GbE LAN & Wi-Fi 6E
Extended Connectivity
HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus
Update BIOS Without Installing the CPU, Memory and Graphics Card
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 2 kg
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-V2 kf
- Form Factor
- ATX
- Frequency speed
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Memory type
- DDR5
- Model
- B650 AORUS ELITE AX V2 1.1
- Socket
- SAM5
- Unit Box Height
- 0.338
- Unit Box Length
- 0.08
- Unit Box Width
- 0.272
- Input/Output connectors (USB-C)
- 1
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 7
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Chipset
- AMD B650
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 3
- Expansion slots (PCI-Express 16x)
- 1
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 10
- TPM
- Header
- Interface (WiFi)
- Yes
- CnCode (CnCode)
- 84733020
- Expansion slots (PCI-Express 2.0 16x)
- 2
