Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2x

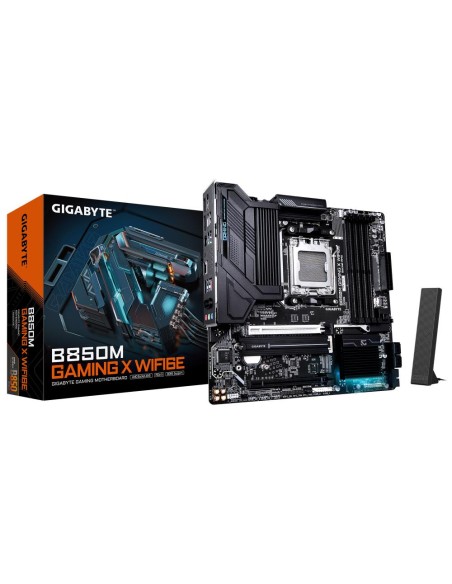

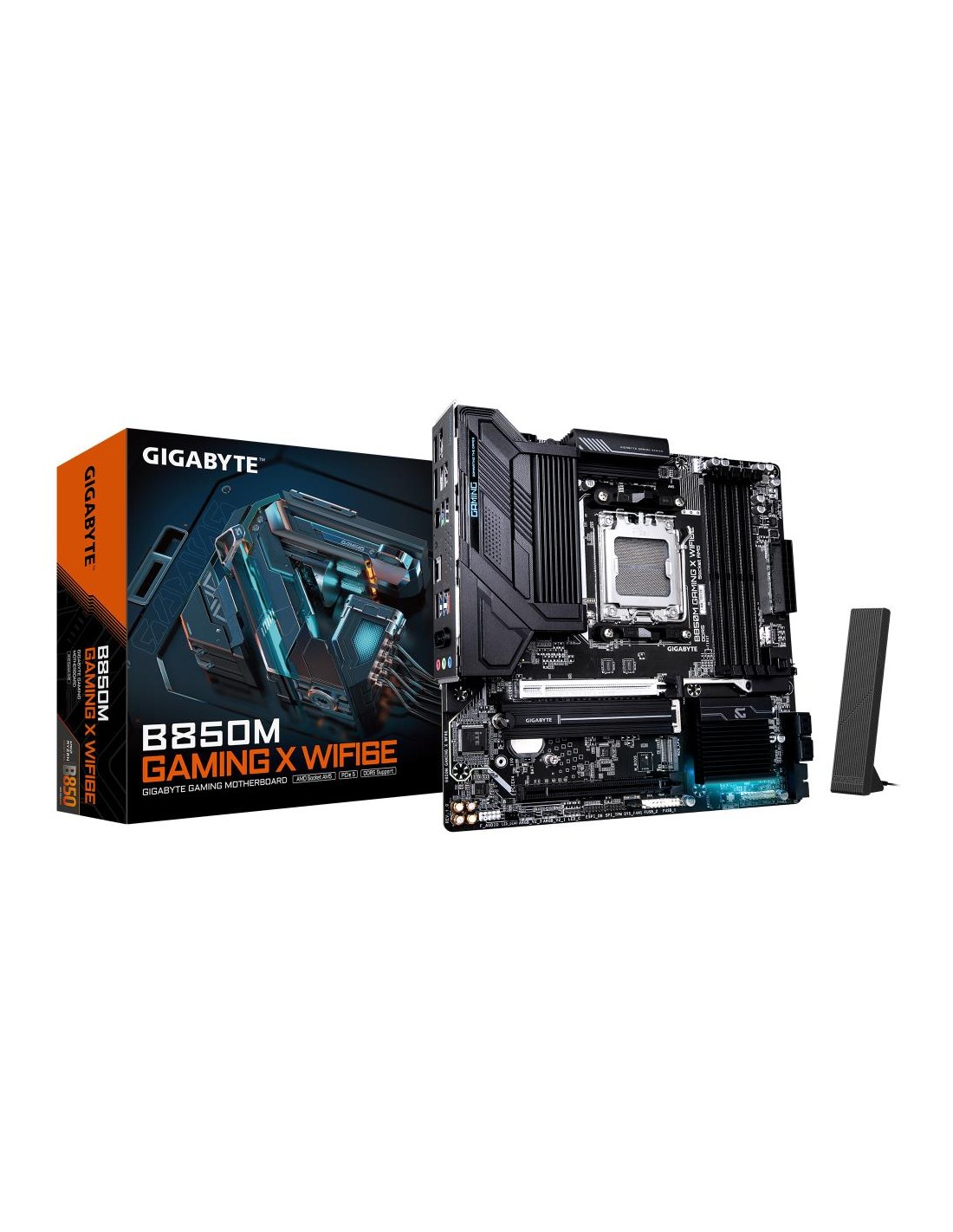

B850M GAMING X WF6E
Yra sandėlyje
188,01 €
Nėra mokesčio
AMD B850|SAM5|Micro-ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2 type B|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
GIGABYTE B850M GAMING X WIFI6E
DDR5 OC
up to 8200MT/s
AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 10+2+2 phases
VRM solution
Dual Channel DDR5
4* DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking
2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity
HDMI, Displayport
DDR5 OC
up to 8200MT/s
AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 10+2+2 phases
VRM solution
Dual Channel DDR5
4* DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking
2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity
HDMI, Displayport
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 2
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 0.7 kg
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.gigabyte.com/Motherboard/B850M-GAMING-X-WIFI6E kf
- Form Factor
- Micro-ATX
- Frequency speed
- 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
- Memory type
- DDR5
- Model
- B850M GAMING X WF6E
- Socket
- SAM5
- Unit Box Height
- 0.07
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- Input/Output connectors (USB-C)
- 1
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Interface (USB-C)
- Yes
- Input/Output connectors (USB 3.2)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Chipset
- AMD B850
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 3.0 4x)
- 1
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Interface (WiFi)
- Yes
- Input/Output connectors (USB 3.2 type B)
- 2
- CnCode (CnCode)
- 84733020
