PRIME B650M-A II-CSM Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|
PRIME B650M-A II-CSM Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|

Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4xUSB 2

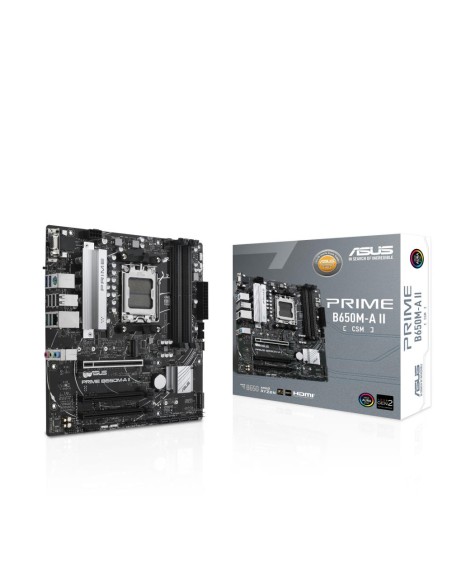

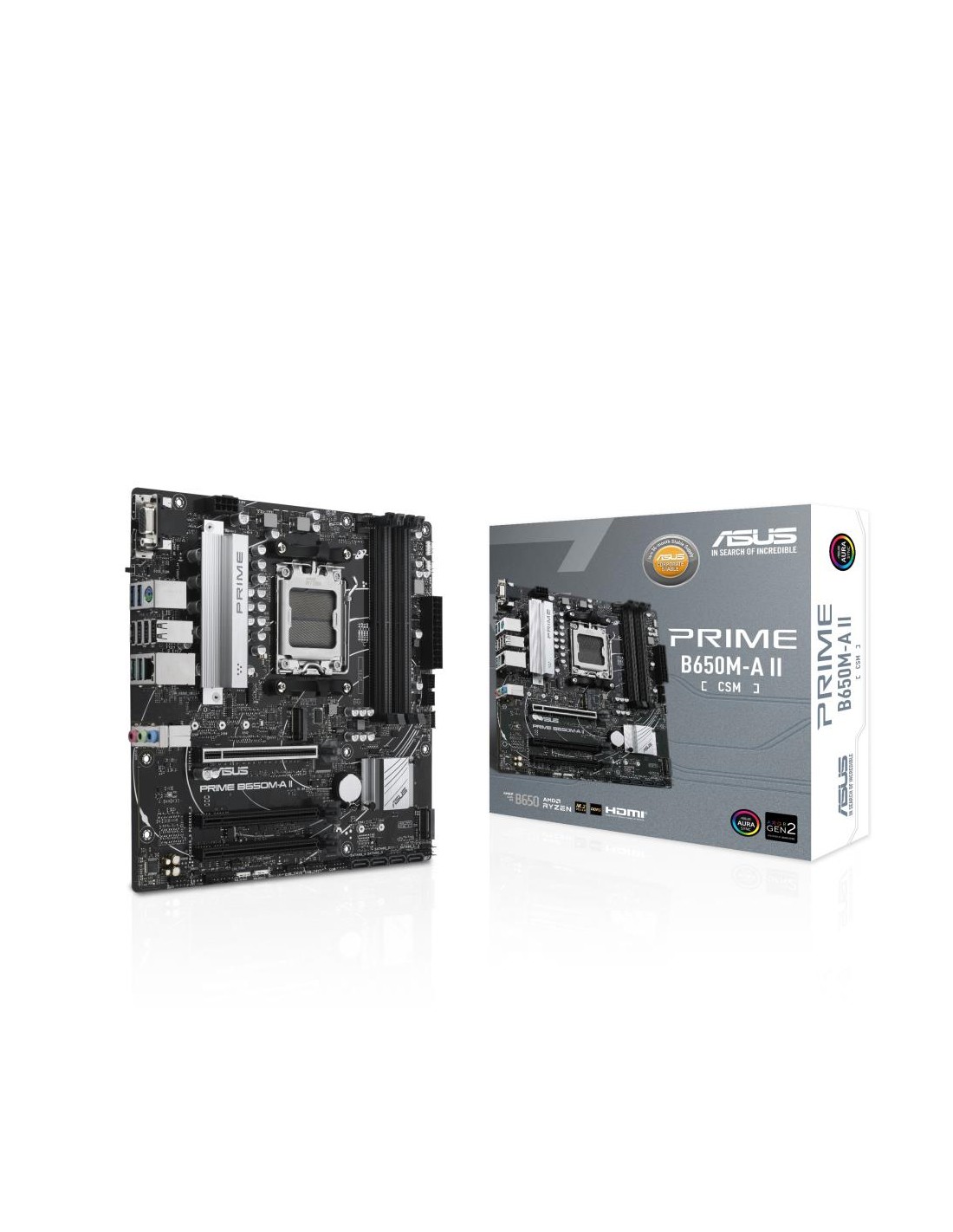

PRIME B650M-A II-CSM
Yra sandėlyje
126,11 €
Nėra mokesčio
AMD B650|SAM5|Micro-ATX|DDR5|7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10|TPM Header

PRIME B650M-A II-CSM
AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, DisplayPort, HDMI®, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync - Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
Garantija
36
Category Code
MBA
Input/Output connectors (DisplayPort)
1
Input/Output connectors (HDMI)
1
Unit Net Weight
0.7 kg
Input/Output connectors (USB 2.0)
4
Vendor Homepage
www.asus.com/motherboards-components/motherboards/csm/prime-b650m-a-ii-csm/
Form Factor
Micro-ATX
Frequency speed
4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Memory type
DDR5
Model
PRIME B650M-A II-CSM
Socket
SAM5
Included Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Unit Box Height
0.07
Unit Box Length
0.28
Unit Box Width
0.275
Interface (USB 2.0)
Yes
Input/Output connectors (USB 3.2)
4
Input/Output connectors (RJ45)
1
Input/Output connectors (Audio port)
3
Interface (SATA)
Yes
Memory slots
4
Integrated LAN
2.5 Gigabit
Chipset
AMD B650
Interface (USB 3.2)
Yes
Integrated video
Depending on CPU
Expansion slots (M.2)
2
Expansion slots (PCI-Express 4.0 16x)
2
Input/Output connectors (PS/2)
1
Integrated audio
Yes
RAID
SATA 0, 1, 10 PCIe 0, 1, 10
TPM
Header
CnCode (CnCode)
84733020
Input/Output connectors (VGA)
1
4711387025543
