Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.

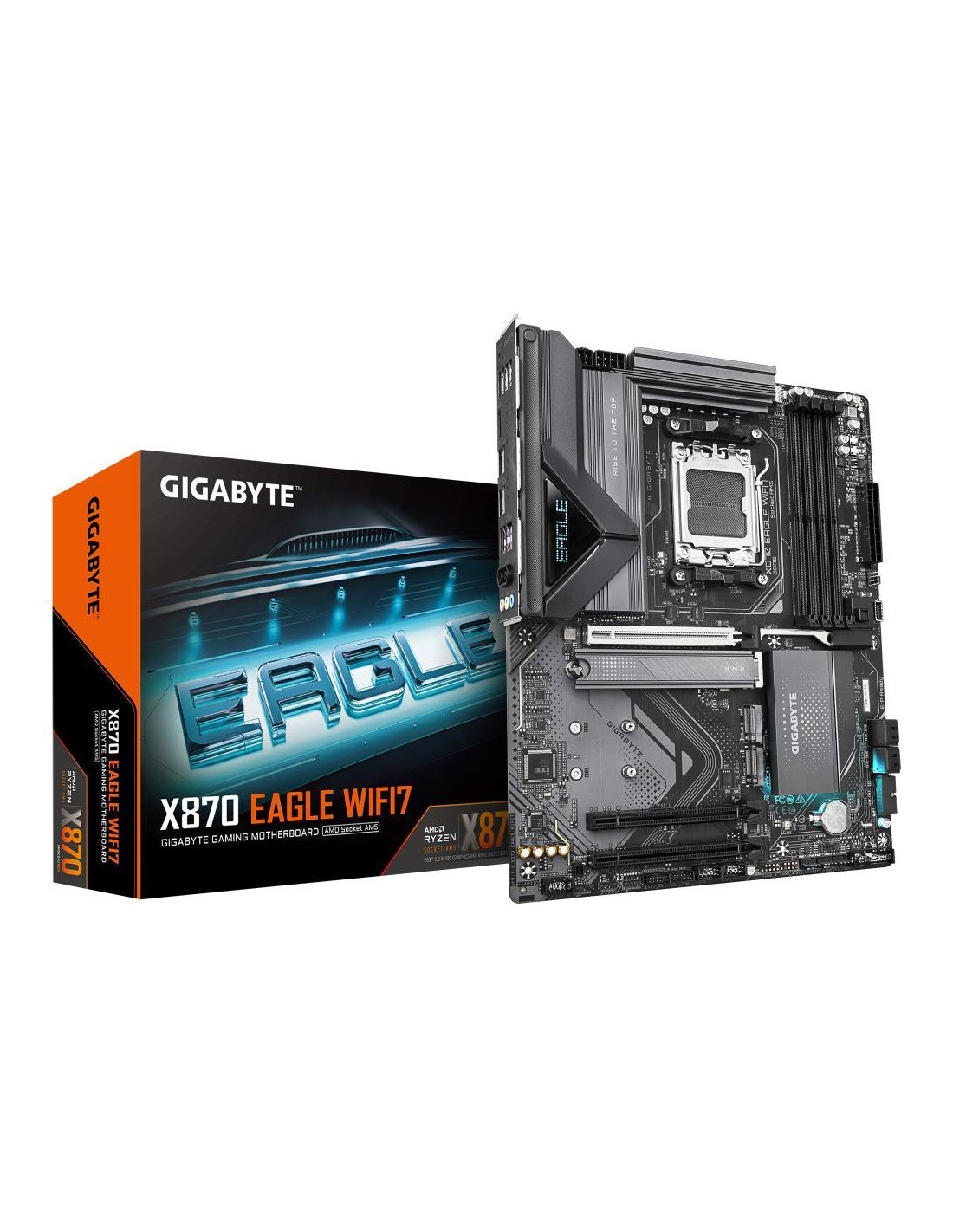

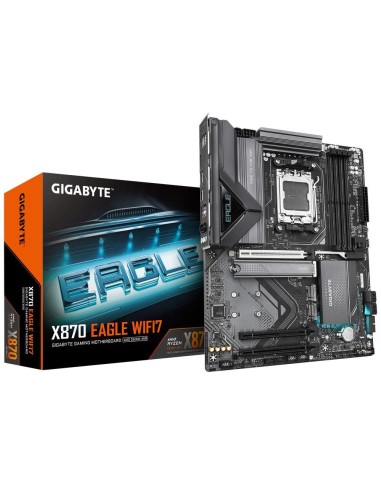

X870 EAGLE WIFI7 1.1
Yra sandėlyje
244,83 €
Nėra mokesčio
AMD X870|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
X870 EAGLE WIFI7
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.2 kg
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.gigabyte.com/Motherboard/X870-EAGLE-WIFI7 kf
- Form Factor
- ATX
- Frequency speed
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Memory type
- DDR5
- Model
- X870 EAGLE WIFI7 (1.1)
- Socket
- SAM5
- Unit Box Height
- 0.08
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- Input/Output connectors (USB-C)
- 2
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Interface (USB-C)
- Yes
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Chipset
- AMD X870
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 3
- Expansion slots (PCI-Express 3.0 1x)
- 2
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Interface (WiFi)
- Yes
4719331864996
