Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.
B650EAELITEXICE
Yra sandėlyje
199,81 €
Nėra mokesčio
AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/5600/5200/4800/4400 MHz|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2 type B|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header

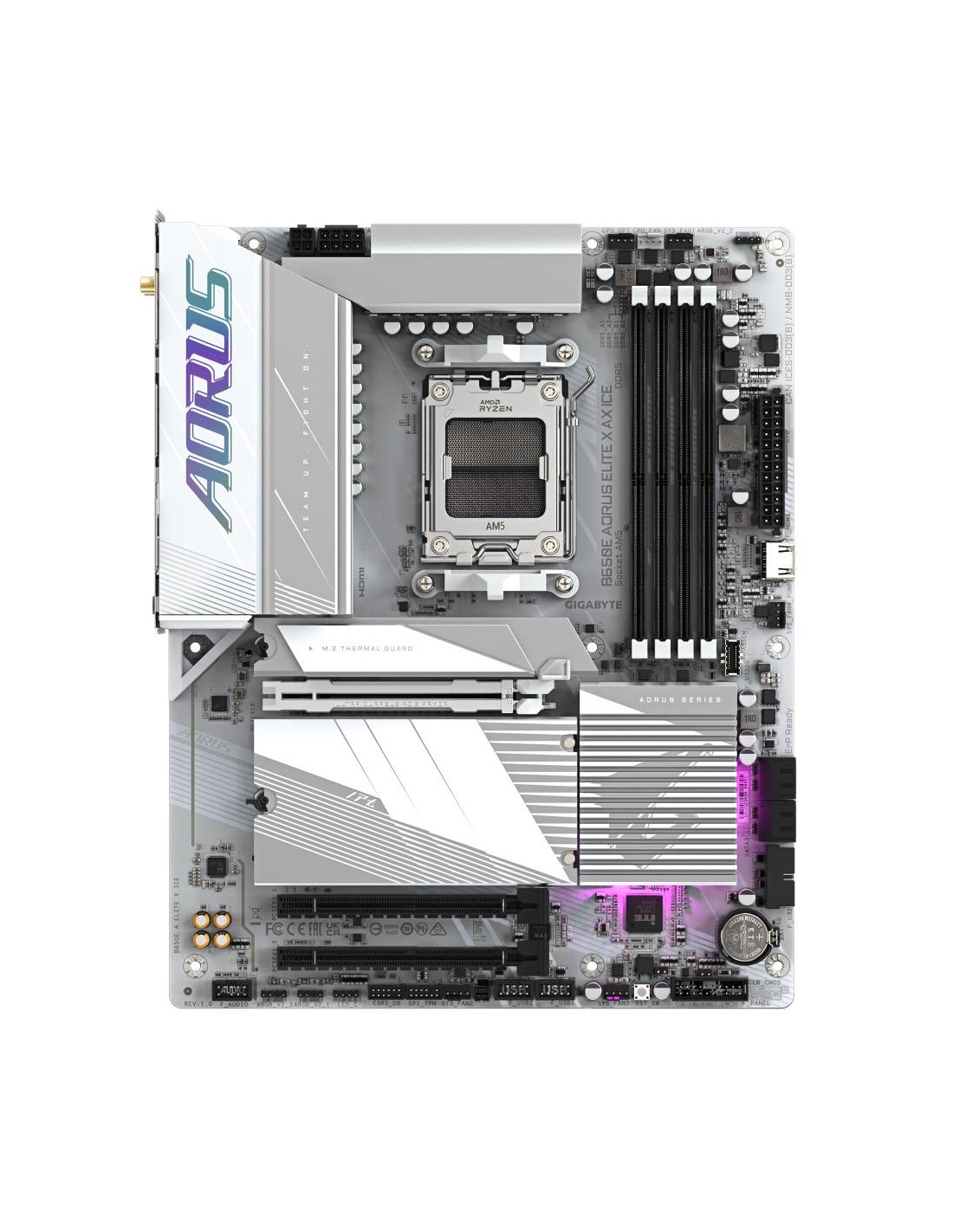

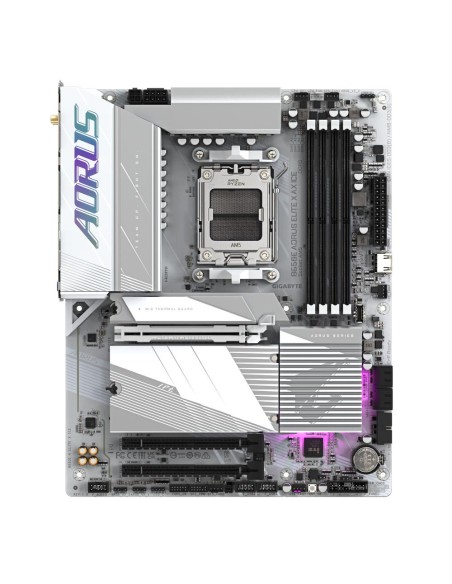

B650E AORUS ELITE X AX ICE
- AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- UC BIOS:User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x16
- Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking:2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity:HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
- Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- UC BIOS:User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage:3*M.2 slots, including 1* PCIe 5.0 x16
- Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking:2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity:HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
- Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.gigabyte.com/Motherboard/B650E-AORUS-ELITE-X-AX-ICE kf
- Form Factor
- ATX
- Frequency speed
- 4400/4800/5200/5600/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Memory type
- DDR5
- Model
- B650E A ELITE X ICE
- Socket
- SAM5
- Unit Box Height
- 0.27
- Unit Box Length
- 0.34
- Unit Box Width
- 0.08
- Input/Output connectors (USB-C)
- 1
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Interface (USB-C)
- Yes
- Input/Output connectors (USB 3.2)
- 2
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Integrated LAN
- 2.5 Gigabit
- Chipset
- AMD B650
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 3
- Integrated audio
- Yes
- Expansion slots (PCI-Express 3.0 16x)
- 2
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 10
- TPM
- Header
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Input/Output connectors (USB 3.2 type B)
- 5
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.01043 cubm
- Product Net Weight
- 2 kg
- Unit Calculated Weight
- 2.47 kg
4719331860554
