Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|2xHDMI|1xDisplayPo

Kodas B650EAGLEAX

Yra sandėlyje

142,55 €

Nėra mokesčio

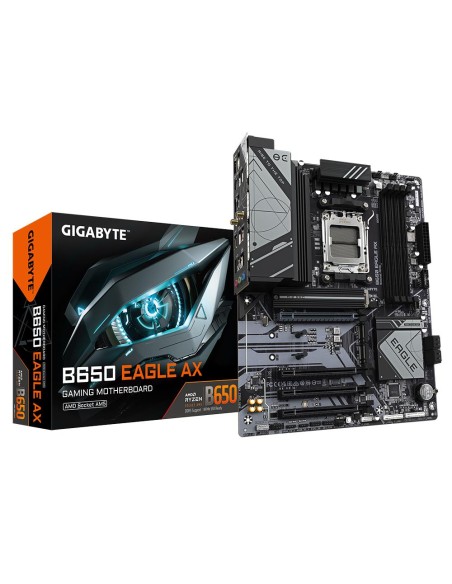

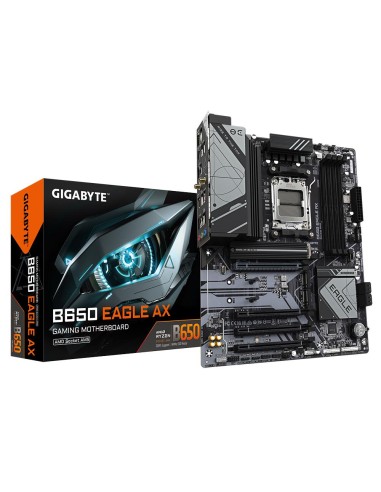

B650 EAGLE AX

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Garantija: 36
Category Code: MBA
Input/Output connectors (DisplayPort): 1
Input/Output connectors (HDMI): 2
Input/Output connectors (USB 2.0): 6
Vendor Homepage: www.gigabyte.com/Motherboard/B650-EAGLE-AX kf
Form Factor: ATX
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Memory type: DDR5
Model: B650 EAGLE AX 1.0
Socket: SAM5
Input/Output connectors (USB-C): 1
Interface (USB 2.0): Yes
Input/Output connectors (USB 3.2): 2
Input/Output connectors (RJ45): 1
Input/Output connectors (Audio port): 3
Interface (SATA): Yes
Memory slots: 4
Integrated LAN: Gigabit
Chipset: AMD B650
Interface (USB 3.2): Yes
Integrated video: Depending on CPU
Expansion slots (M.2): 3
Expansion slots (PCI-Express 16x): 1
Expansion slots (PCI-Express 3.0 16x): 3
RAID: SATA 0, 1, 10 NVMe 0, 1, 10
TPM: Header
Interface (Serial): Yes
Units per Shipping Box: 8
Unit Calculated Volume: 0.01006 cubm
Product Net Weight: 1.5 kg
Unit Calculated Weight: 2 kg

ean13 4719331860158
