Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 5
B850 A ELITE WF7 ICE 1.1
Yra sandėlyje
223,53 €
Nėra mokesčio
AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 5.0 16x|3xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header

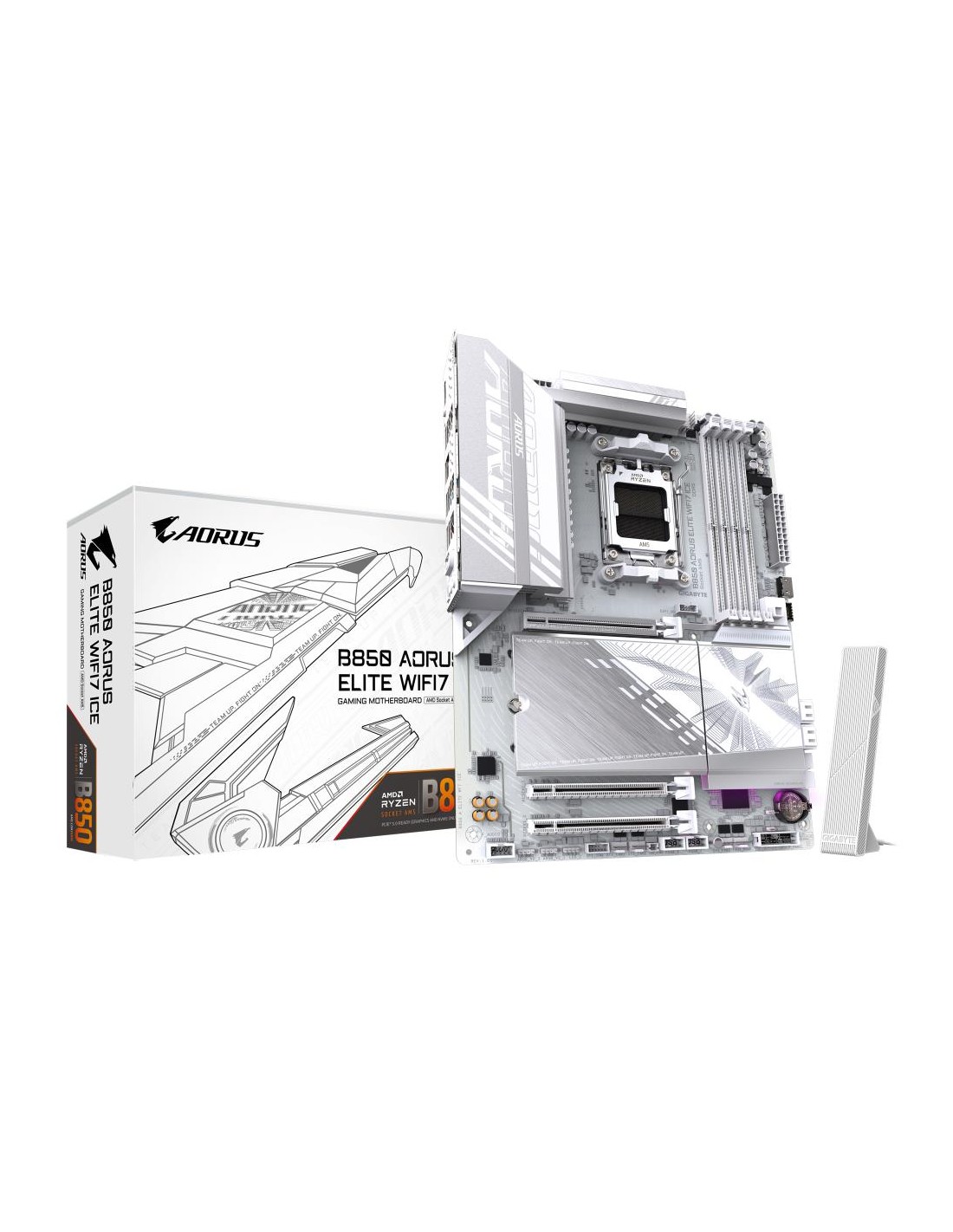

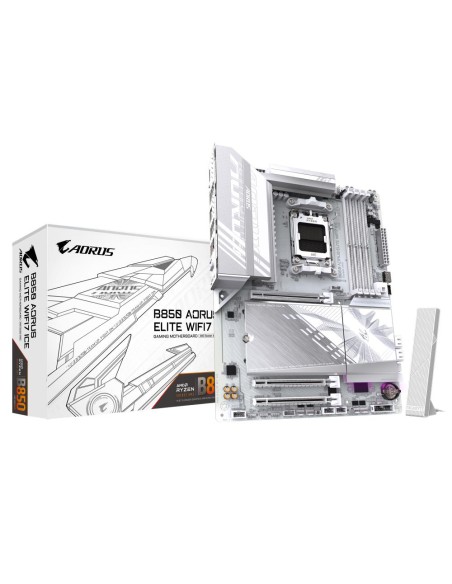

B850 AORUS ELITE WIFI7 ICE
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:HDMI,Displayport
- PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- DDR5 OC up to 8200MT/s
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:HDMI,Displayport
- PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-ICE-rev-1x
- Form Factor
- ATX
- Frequency speed
- 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
- Memory type
- DDR5
- Model
- B850 AORUS ELITE WIFI7 ICE
- Socket
- SAM5
- Input/Output connectors (USB-C)
- 1
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Interface (USB-C)
- Yes
- Input/Output connectors (USB 3.2)
- 5
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 2
- Input/Output connectors (Optical S/PDIF)
- 1
- Interface (SATA)
- Yes
- Integrated LAN
- 2.5 Gigabit
- Chipset
- AMD B850
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 3
- Expansion slots (PCI-Express 3.0 1x)
- 2
- Integrated audio
- Realtek ALC1220
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Interface (WiFi)
- Yes
- Expansion slots (PCI-Express 4.0 4x)
- 1
- Expansion slots (PCI-Express 4.0 8x)
- 1
- Unit Calculated Volume
- 0.01102 cubm
- Product Net Weight
- 0.8 kg
- Unit Calculated Weight
- 2.47 kg
