Mainboard|GIGABYTE|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayP
  • Nauja
Mainboard|GIGABYTE|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayP

Mainboard|GIGABYTE|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayP

B850M A ELT WF6E ICE
Yra sandėlyje
198,60 €
Nėra mokesčio
SAM5|Micro-ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header

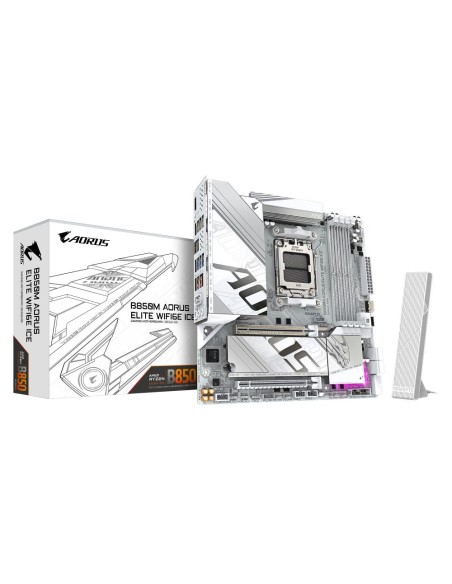

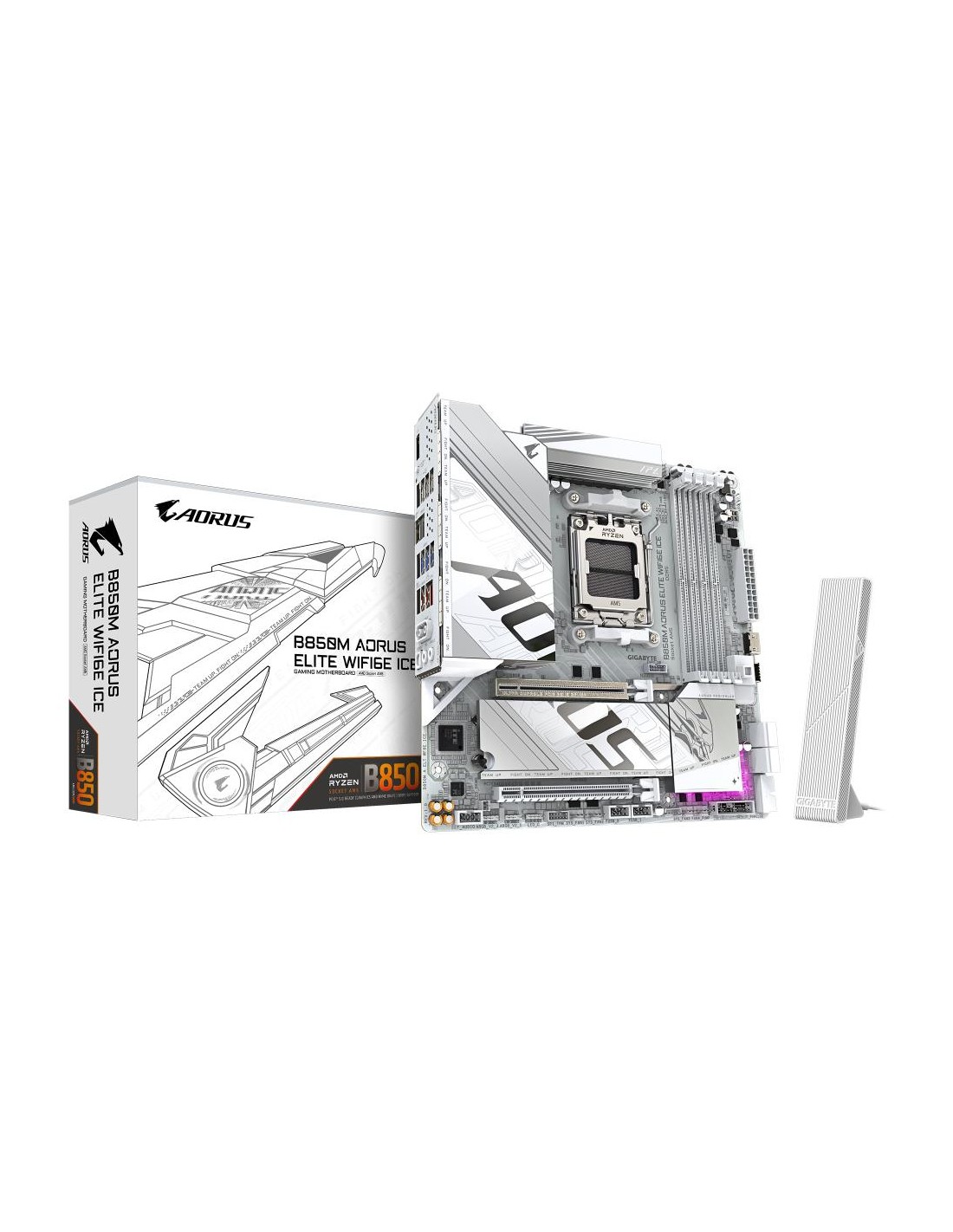

GIGABYTE B850M AORUS ELITE WIFI6E ICE
Unleash new era gaming performance

X3D Turbo Mode
DDR5 OC up to 8200MT/s

AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital twin 12+2+2 phases
VRM solution

Dual Channel DDR5
4*DIMMs with AMD EXPO Memory Module Support

WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click
M.2 heatsinks with screwless design

Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup

Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Ultra-Fast Storage
2*M.2 slots, including PCIe 5.0 x4

Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

Fast Networking
2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

Extended Connectivity
HDMI,Displayport

PCIe UD Slot
PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Garantija
36
Category Code
MBA
Input/Output connectors (DisplayPort)
1
Input/Output connectors (HDMI)
1
Input/Output connectors (USB 2.0)
4
Vendor Homepage
www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-ICE kf
Form Factor
Micro-ATX
Frequency speed
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Memory type
DDR5
Model
B850M A ELT WF6E ICE
Socket
SAM5
Input/Output connectors (USB-C)
2
Interface (Bluetooth)
Yes
Interface (USB 2.0)
Yes
Interface (USB-C)
Yes
Input/Output connectors (USB 3.2)
7
Input/Output connectors (RJ45)
1
Input/Output connectors (Audio port)
2
Input/Output connectors (Optical S/PDIF)
1
Interface (SATA)
Yes
Memory slots
4
Integrated LAN
2.5 Gigabit
Interface (USB 3.0)
Yes
Integrated video
Depending on CPU
Expansion slots (M.2)
2
Integrated audio
Yes
Expansion slots (PCI-Express 3.0 16x)
1
RAID
SATA 0, 1, 10 NVMe 0, 1, 5, 10
TPM
Header
Expansion slots (PCI-Express 5.0 16x)
1
Interface (WiFi)
Yes
Units per Shipping Box
8
Unit Calculated Volume
0.007302 cubm
Product Net Weight
0.7 kg
Unit Calculated Weight
1.98 kg
4719331866082
