Mainboard|GIGABYTE|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1
A620MH1.2
Yra sandėlyje
76,38 €
Nėra mokesčio
AMD A620 | SAM5 | Micro-ATX | DDR5 | 7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz | Memory slots 2 | Video Depending on CPU | Audio | LAN | RAID SATA 0, 1, 10; NVMe 0, 1, 10 | TPM Header

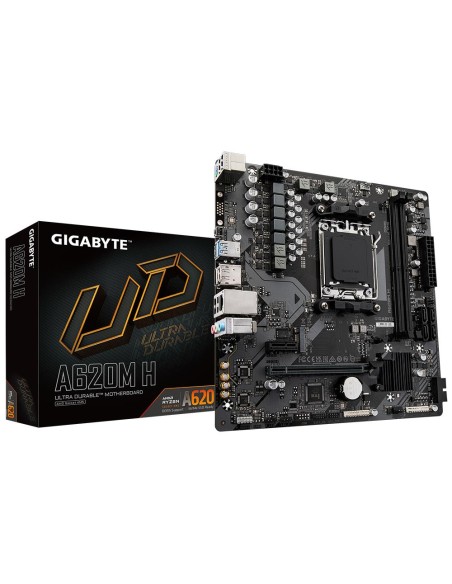

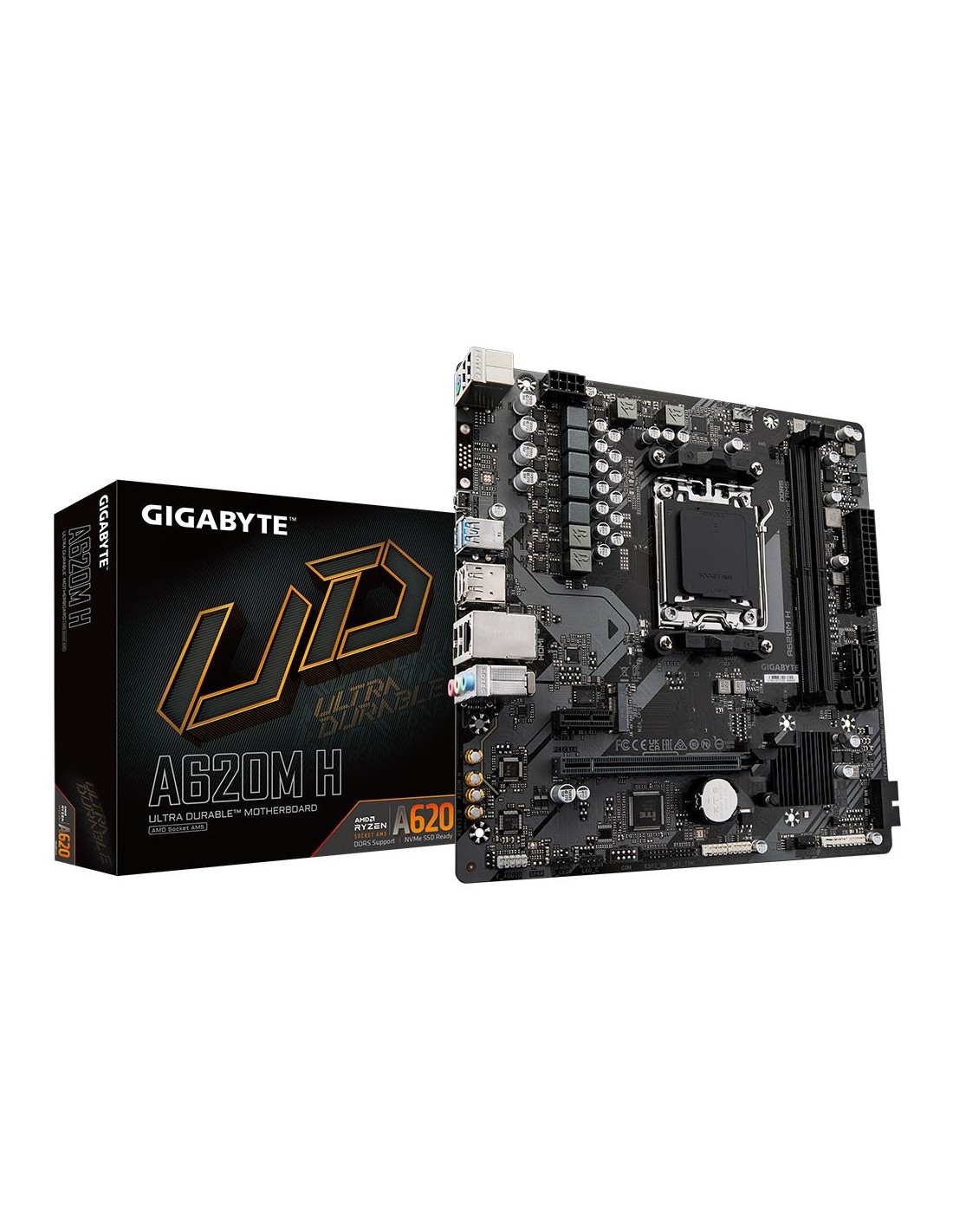

A620M H (rev. 1.2)
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.gigabyte.com/Motherboard/A620M-H-rev-12 kf
- Form Factor
- Micro-ATX
- Frequency speed
- 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz
- Memory type
- DDR5
- Model
- A620M H 1.2
- Socket
- SAM5
- Unit Box Height
- 0.055
- Unit Box Length
- 0.27
- Unit Box Width
- 0.265
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 2
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 2
- Integrated LAN
- Yes
- Chipset
- AMD A620
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 1
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- Expansion slots (PCI-Express 3.0 16x)
- 1
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 10
- TPM
- Header
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004752 cubm
- Product Net Weight
- 0.5 kg
- Unit Calculated Weight
- 0.921 kg
- CnCode
- 84733020
