Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory
B550MPHANTOMGAMING4
Yra sandėlyje
82,39 €
Nėra mokesčio
AMD B550 | SAM4 | Micro-ATX | DDR4 | 4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC887 | LAN Realtek (Gigabit) | RAID SATA 0, 1, 10 | TPM Header

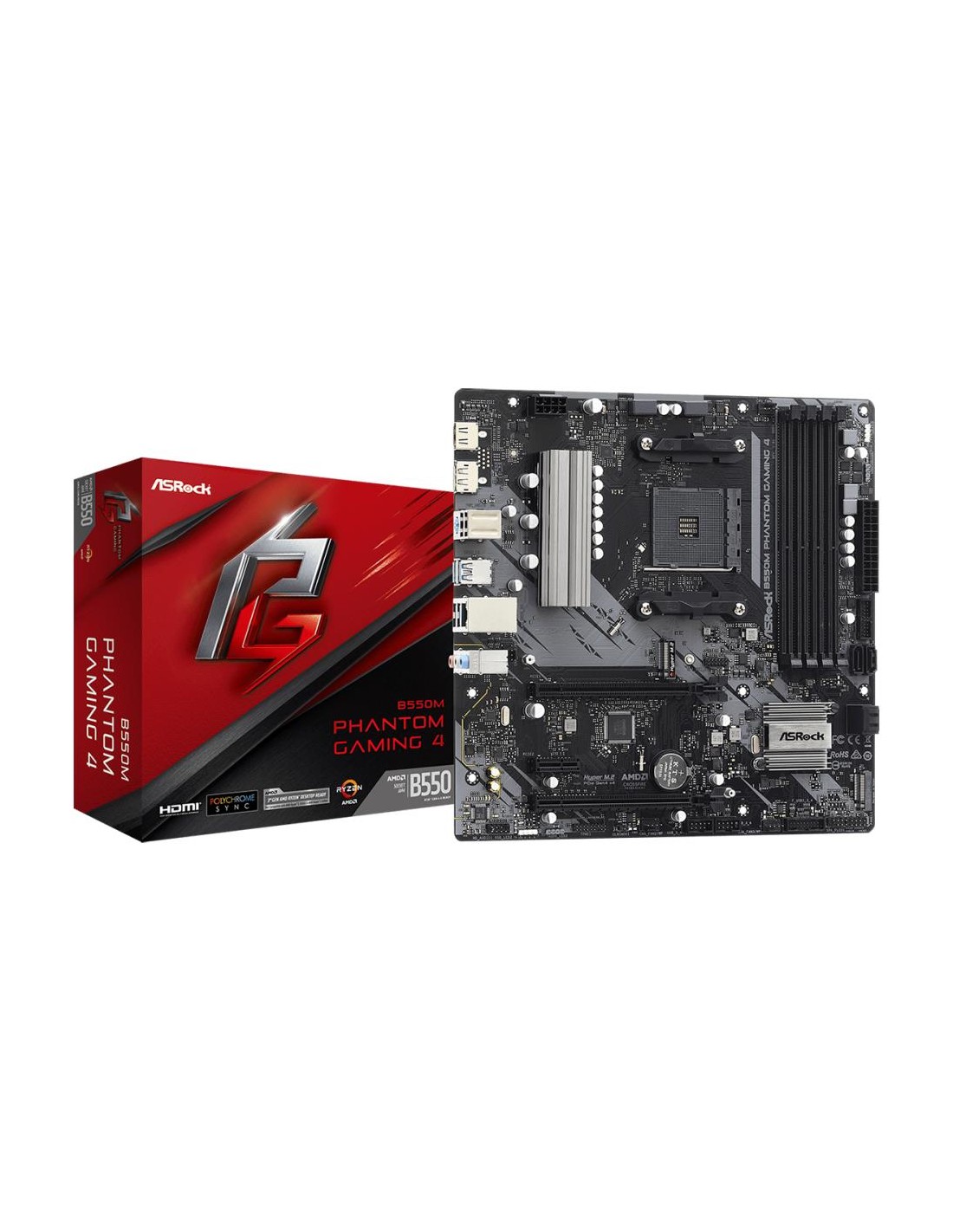

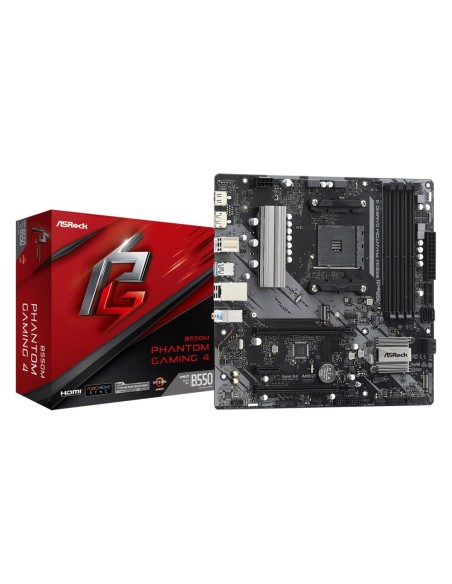

B550M Phantom Gaming 4
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
8 Power Phase design
Supports DDR4 4733+ (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Supports AMD CrossFireX™
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)
8 x USB 3.2 Gen1 (4 Front, 4 Rear)
6 x USB 2.0 (4 Front, 2 Rear)
Realtek Gigabit LAN
- Garantija
- 36
- Category Code
- MBA
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.asrock.com/MB/AMD/B550M%20Phantom%20Gaming%204/index.asp
- Form Factor
- Micro-ATX
- Frequency speed
- 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533 MHz
- Memory type
- DDR4
- Socket
- SAM4
- Unit Box Height
- 0.26
- Unit Box Length
- 0.275
- Unit Box Width
- 0.06
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- Realtek (Gigabit)
- Chipset
- AMD B550
- Input/Output connectors (Audio-In)
- 2
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Expansion slots (PCI-Express 3.0 1x)
- 1
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Realtek ALC887
- RAID
- SATA 0, 1, 10
- TPM
- Header
- Expansion slots (PCI-Express 3.0 4x)
- 1
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00429 cubm
- Product Net Weight
- 0.7 kg
- Unit Calculated Weight
- 1.1 kg
- CnCode
- 84733020
4710483932755
