Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplay

B850 LiveMixer WiFi
LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.

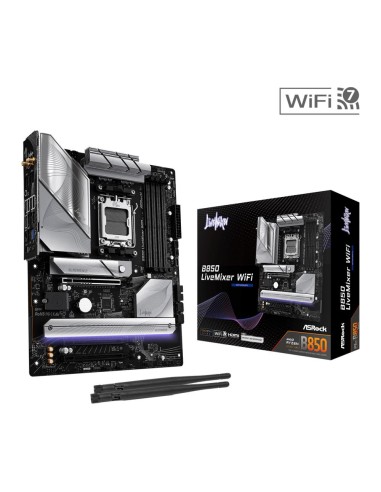

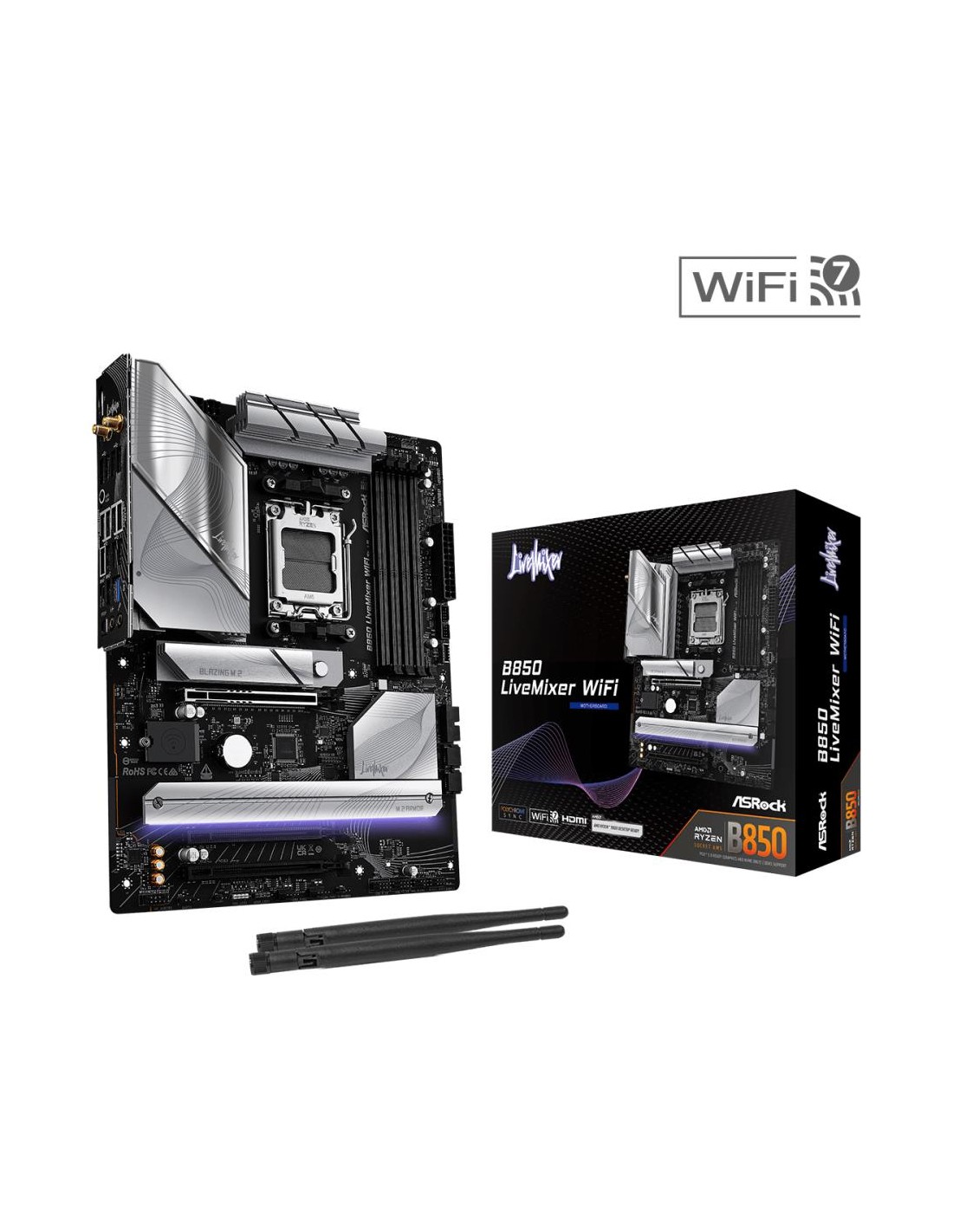

B850 LiveMixer WiFi

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4),  2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 12 USB 2.0 (8 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be WiFi 7 +Bluetooth
• Supports M.2 Bottom Heatsink,
• BIOS Flashback
