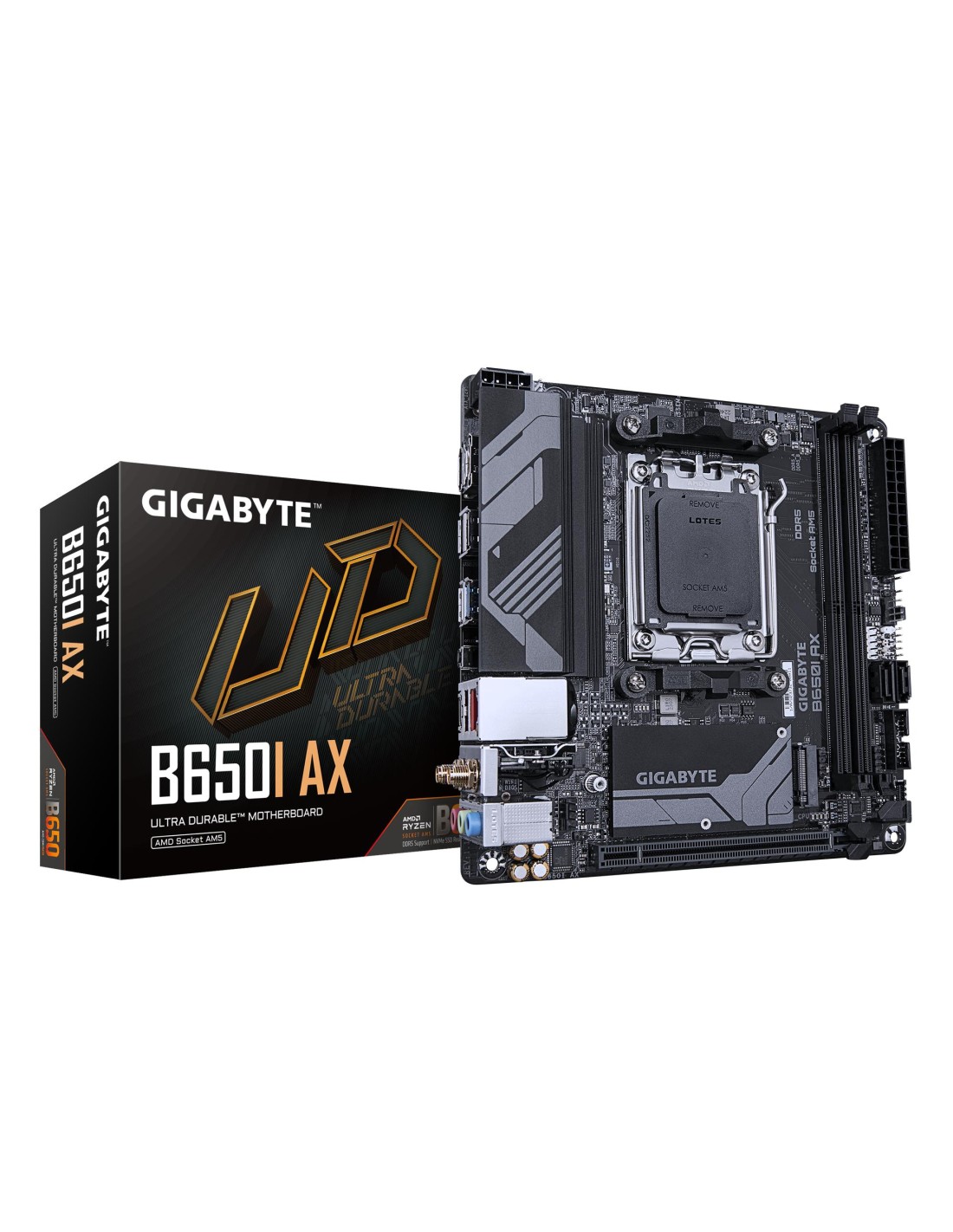

Mainboard|GIGABYTE|AMD B650|SAM5|Mini-ITX|Memory DDR5|Memory slots 2|B650IAX1.1

Kodas B650I AX 1.1

Yra sandėlyje

144,07 €

Nėra mokesčio

B650I AX (rev. 1.1)

AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance：5+2+1 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
Extended Connectivity：DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Garantija: 36
Category Code: MBA
Input/Output connectors (DisplayPort): 1
Input/Output connectors (HDMI): 1
Input/Output connectors (USB 2.0): 3
Vendor Homepage: www.gigabyte.com/Motherboard/B650I-AX-rev-11 kf
Form Factor: Mini-ITX
Frequency speed: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/8000 MHz
Memory type: DDR5
Model: B650I AX (rev. 1.1)
Socket: SAM5
Unit Box Height: 0.065
Unit Box Length: 0.23
Unit Box Width: 0.18
Input/Output connectors (USB-C): 1
Interface (Bluetooth): Yes
Input/Output connectors (USB 3.2): 2
Input/Output connectors (RJ45): 1
Input/Output connectors (Audio port): 3
Interface (SATA): Yes
Memory slots: 2
Integrated LAN: 2.5 Gigabit
Chipset: AMD B650
Integrated video: Depending on CPU
Expansion slots (M.2): 1
Expansion slots (PCI-Express 4.0 16x): 1
Integrated audio: Yes
RAID: SATA 0, 1 NVMe 0, 1
Interface (WiFi): Yes
Expansion slots (PCI-Express 4.0 4x): 1
Expansion slots (PCI-Express 4.0 8x): 1
Units per Shipping Box: 1
Unit Calculated Volume: 0.002691 cubm
Product Net Weight: 0.7 kg
Unit Calculated Weight: 0.8 kg

ean13 4719331859190
