Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|
PRIMEB760M-KD4
Yra sandėlyje
94,45 €
Nėra mokesčio
Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5066/5000/4800/4600/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header

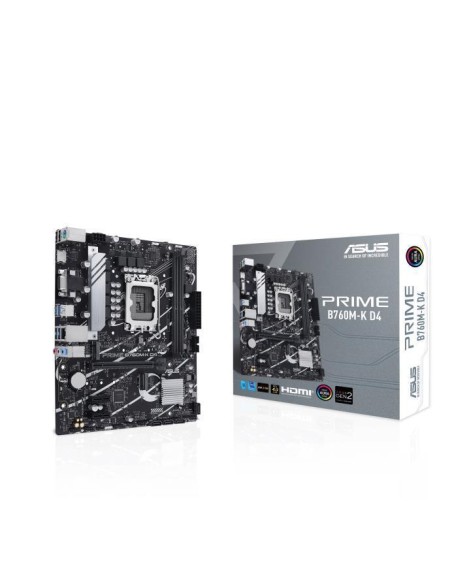

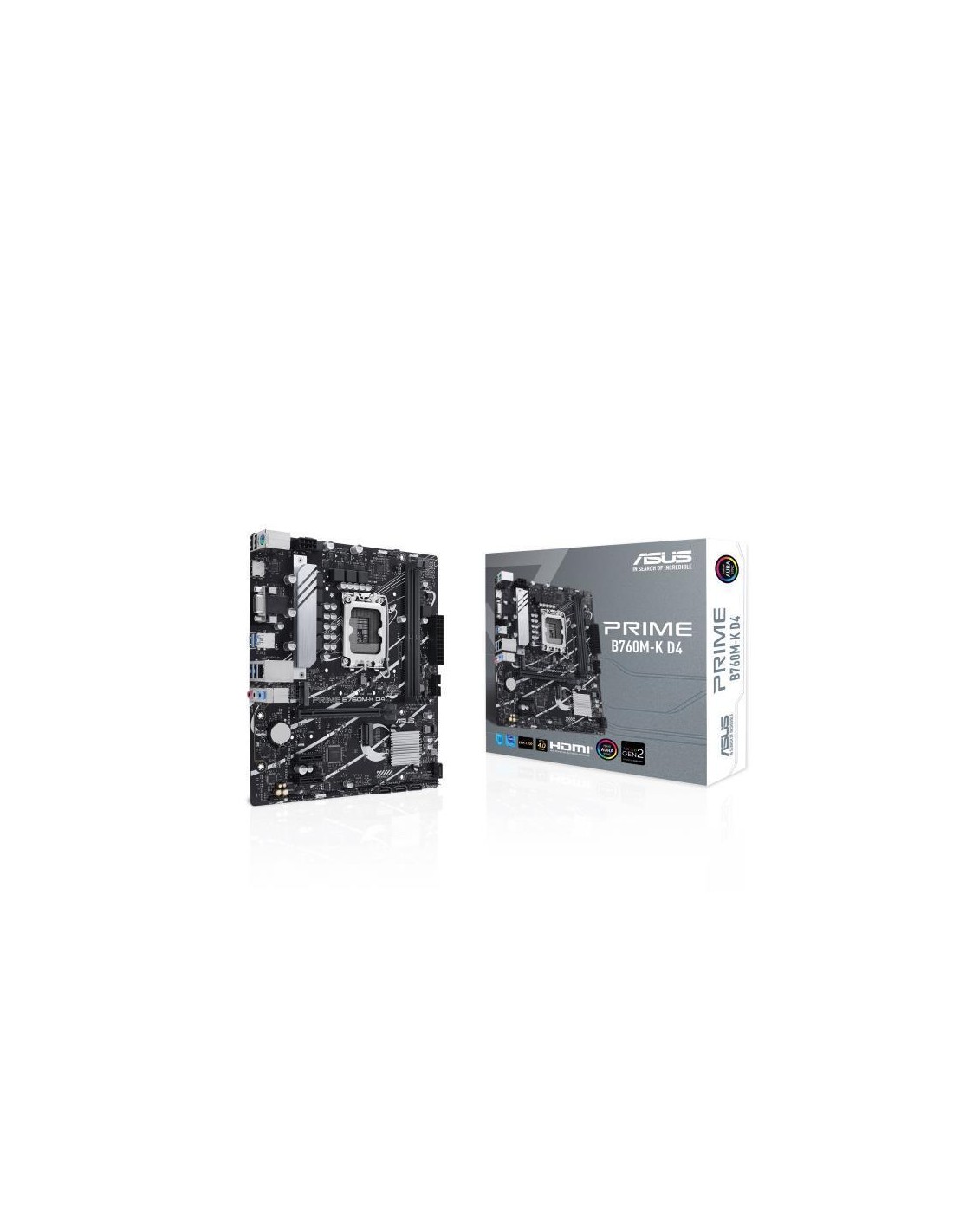

ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 0.7 kg
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k-d4/
- Form Factor
- Micro-ATX
- Frequency speed
- 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4600/4800/5000/5066/5333 MHz
- Memory type
- DDR4
- Model
- PRIME B760M-K D4
- Socket
- LGA1700
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Input/Output connectors (15pin D-sub)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 2
- Integrated LAN
- 2.5 Gigabit
- Chipset
- Intel B760 Express
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 4.0 1x)
- 2
- CnCode (CnCode)
- 84733020
4711387006917
