Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2
B760 GAMING PLUS WIFI DDR4
Yra sandėlyje
114,52 €
Nėra mokesčio
Intel B760 Express|LGA1700|ATX|DDR4|5333/5200/5066/5000/4800/4600/4400/4266/4200/4000/3800/3733/3600/3466/3400/3333/3200/2933/2666/2400/2133 MHz|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|SATA 3.0|Video|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header

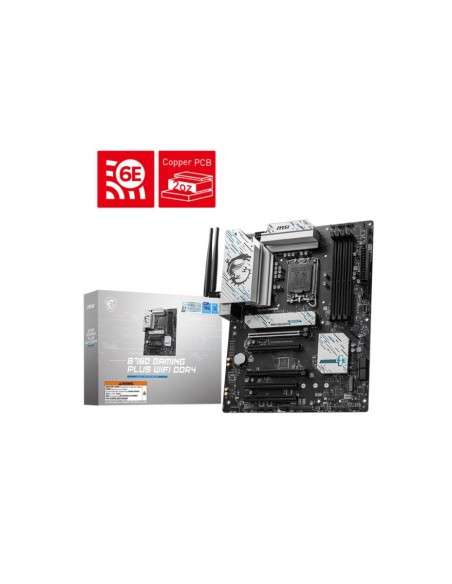

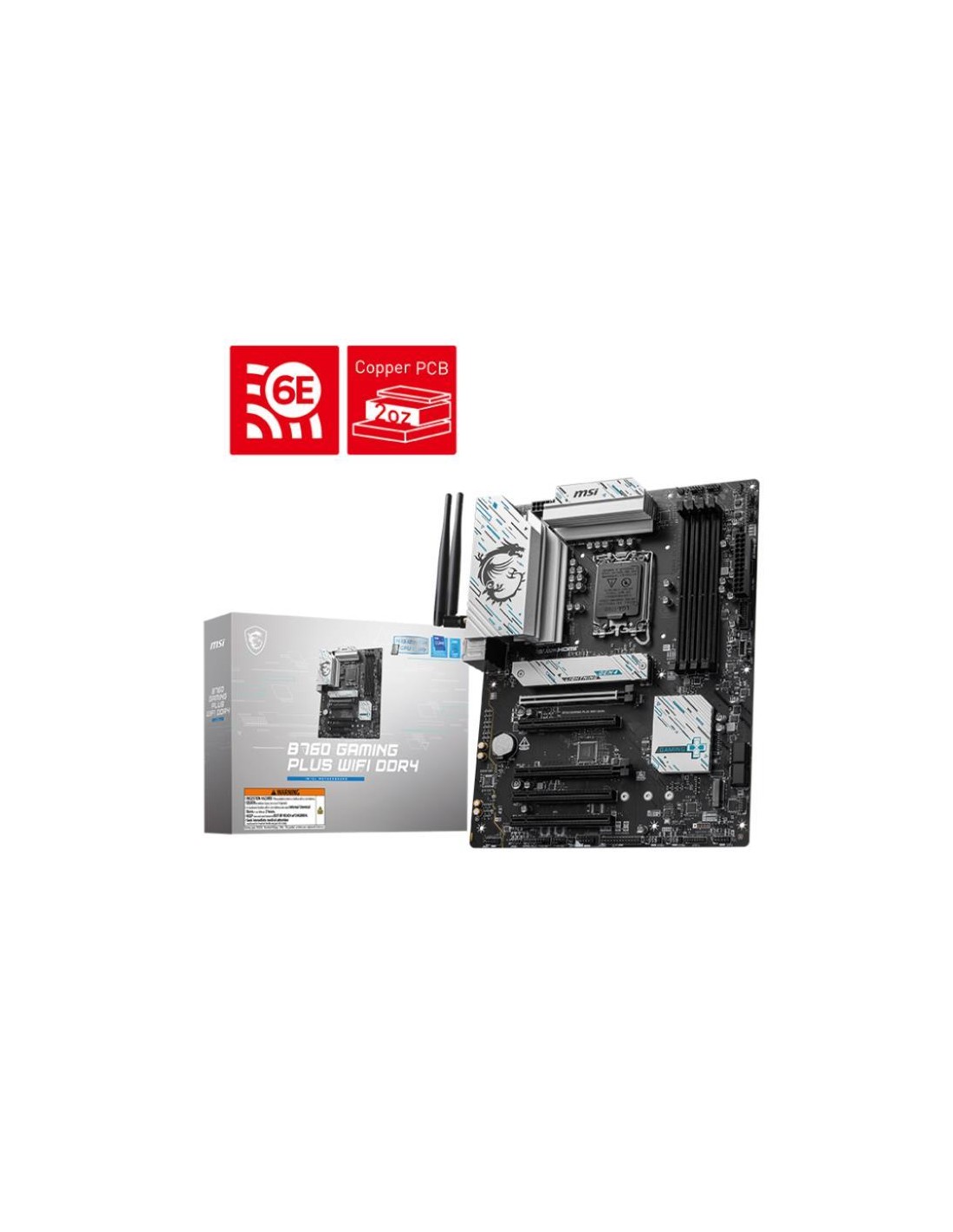

MSI B760 GAMING PLUS WIFI DDR4
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz
Enhanced Power Design
12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution
Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience
PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB
6-layer PCB made by 2oz thickened copper
Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz
Enhanced Power Design
12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution
Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience
PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi 6E Solution
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
High Quality PCB
6-layer PCB made by 2oz thickened copper
Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Unit Net Weight
- 1.2 kg
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4
- Form Factor
- ATX
- Interface (SATA 3.0)
- Yes
- Frequency speed
- 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
- Memory type
- DDR4
- Model
- B760 GAMING PLUS WIFI DDR4
- Socket
- LGA1700
- Unit Box Height
- 0.348
- Unit Box Length
- 0.27
- Unit Box Width
- 0.066
- Input/Output connectors (USB-C)
- 1
- Input/Output connectors (USB 3.2)
- 2
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 5
- Input/Output connectors (Optical S/PDIF)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Chipset
- Intel B760 Express
- Integrated video
- Yes
- Expansion slots (M.2)
- 2
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Realtek ALC897
- RAID
- SATA 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 5.0 16x)
- 5
- CnCode (CnCode)
- 84733020
