PRO B860-P WIFI Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4
PRO B860-P WIFI Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4

Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express

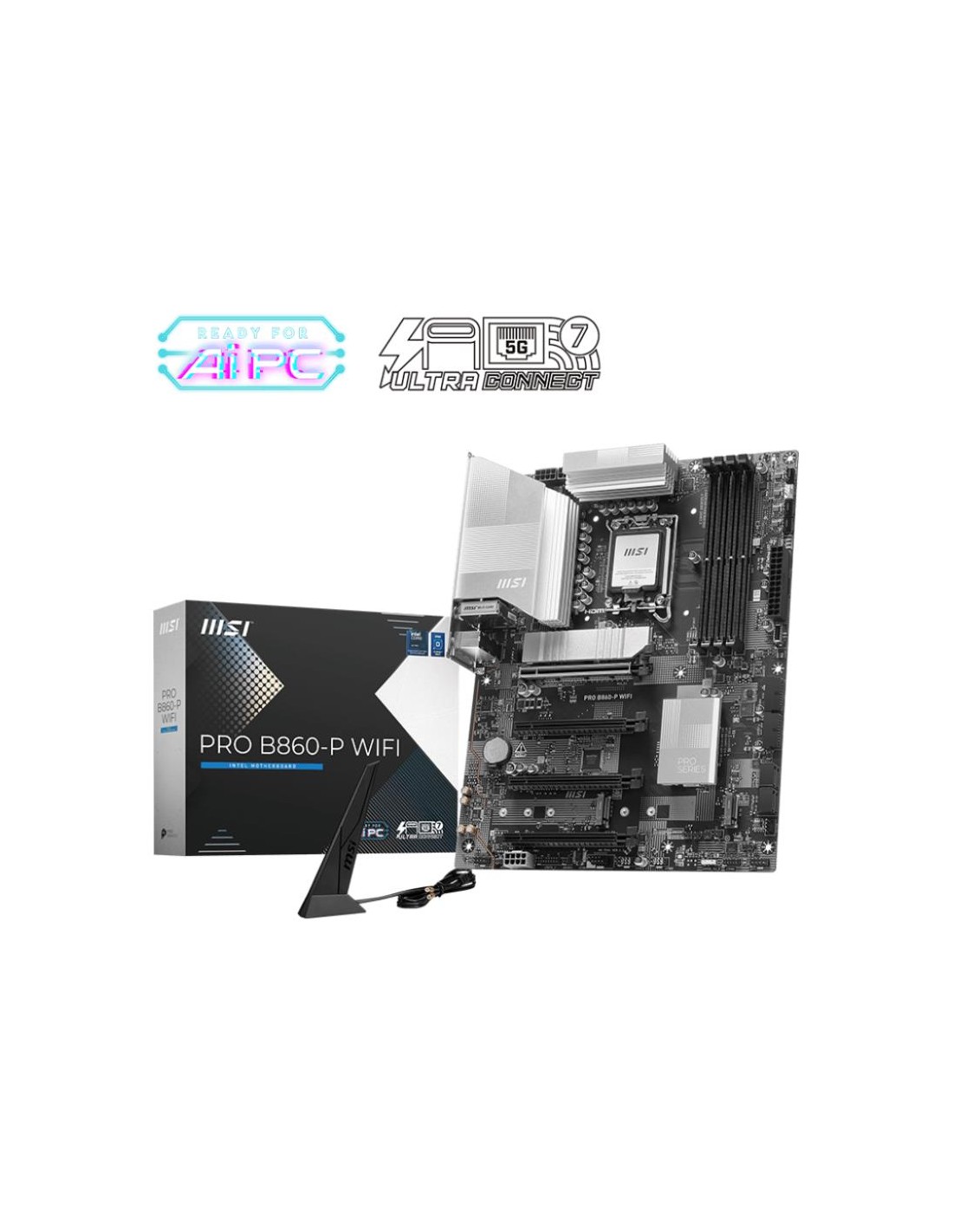

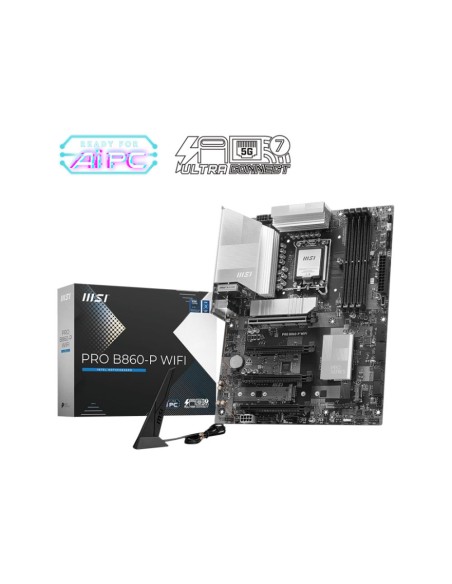

PRO B860-P WIFI
Yra sandėlyje
188,01 €
Nėra mokesčio
Intel B860 Express|LGA1851|ATX|DDR5|8800/7200/6400/5600/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|1xThunderbolt|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header

PRO B860-P WIFI
PRO B860-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Garantija
36
Category Code
MBI
Input/Output connectors (DisplayPort)
1
Input/Output connectors (HDMI)
1
Unit Net Weight
1 kg
Input/Output connectors (USB 2.0)
8
Vendor Homepage
www.msi.com/Motherboard/PRO-B860-P-WIFI
Form Factor
ATX
Frequency speed
4800/5600/6400/7200/8800 MHz
Memory type
DDR5
Model
PRO B860-P WIFI
Socket
LGA1851
Unit Box Height
0.07
Unit Box Length
0.34
Unit Box Width
0.27
Input/Output connectors (USB-C)
1
Interface (Bluetooth)
Yes
Interface (USB 2.0)
Yes
Interface (USB-C)
Yes
Input/Output connectors (USB 3.2)
2
Input/Output connectors (RJ45)
1
Input/Output connectors (Audio port)
3
Interface (SATA)
Yes
Memory slots
4
Integrated LAN
5 Gigabit
Chipset
Intel B860 Express
Interface (USB 3.2)
Yes
Integrated video
Depending on CPU
Expansion slots (M.2)
3
Input/Output connectors (Thunderbolt)
1
Integrated audio
Realtek ALC897
RAID
SATA 0, 1, 5, 10
TPM
Header
Expansion slots (PCI-Express 5.0 16x)
1
Interface (WiFi)
Yes
Expansion slots (PCI-Express 4.0 1x)
2
Expansion slots (PCI-Express 4.0 4x)
1
CnCode (CnCode)
84733020
Interface (Thunderbolt)
Yes
4711377286572
