Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|

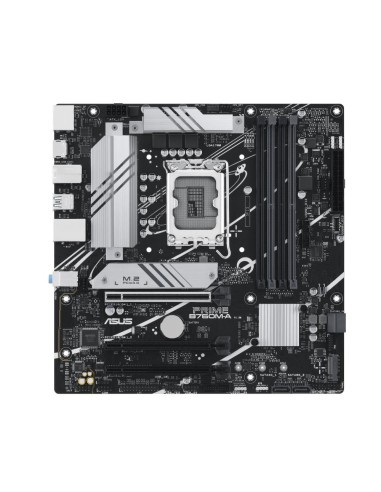

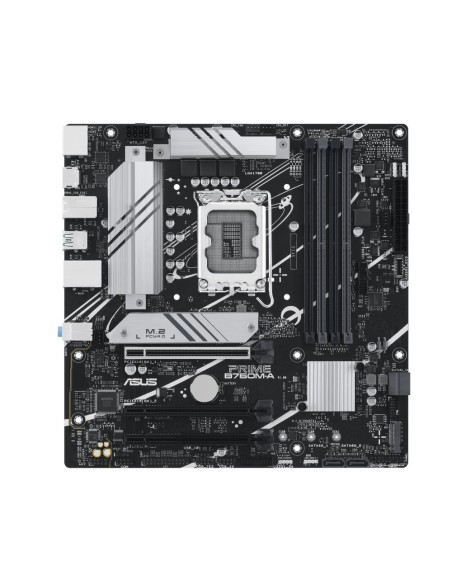

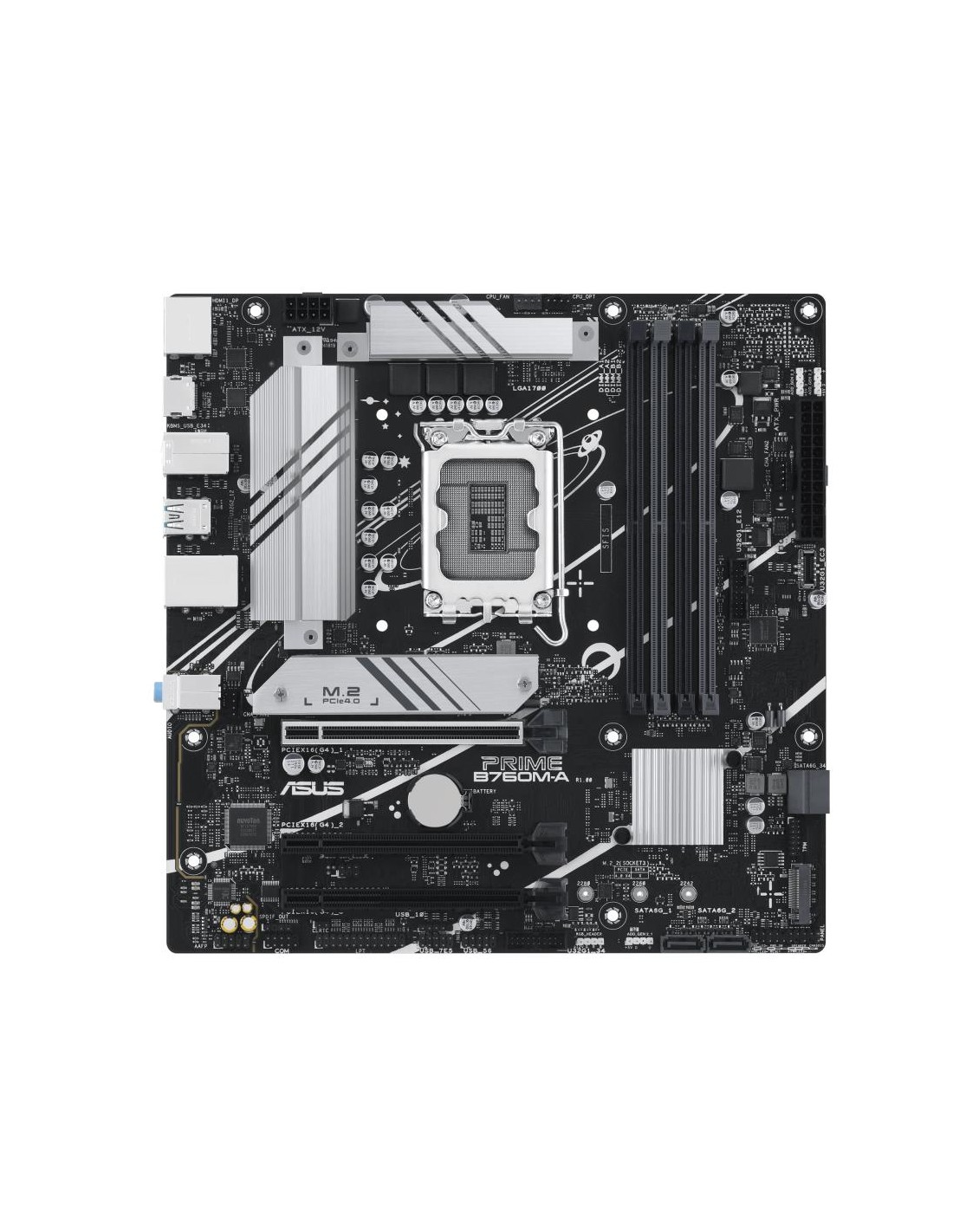

PRIME B760M-A-CSM
Yra sandėlyje
118,83 €
Nėra mokesčio
Intel B760 Express|LGA1700|Micro-ATX|DDR5|7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (DisplayPort)
- 2
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 4
- Vendor Homepage
- www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/
- Form Factor
- Micro-ATX
- Frequency speed
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz
- Memory type
- DDR5
- Model
- PRIME B760M-A-CSM
- Socket
- LGA1700
- Included Accessories
- Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 2
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Chipset
- Intel B760 Express
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 2
- Expansion slots (PCI-Express 4.0 16x)
- 2
- Input/Output connectors (PS/2)
- 1
- Integrated audio
- Yes
- RAID
- SATA 0, 1, 5, 10
- CnCode (CnCode)
- 84733020
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004548 cubm
- Product Net Weight
- 0.8 kg
- Unit Calculated Weight
- 1.18 kg
4711387140710
