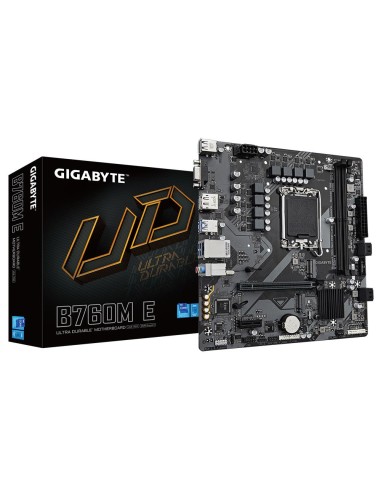

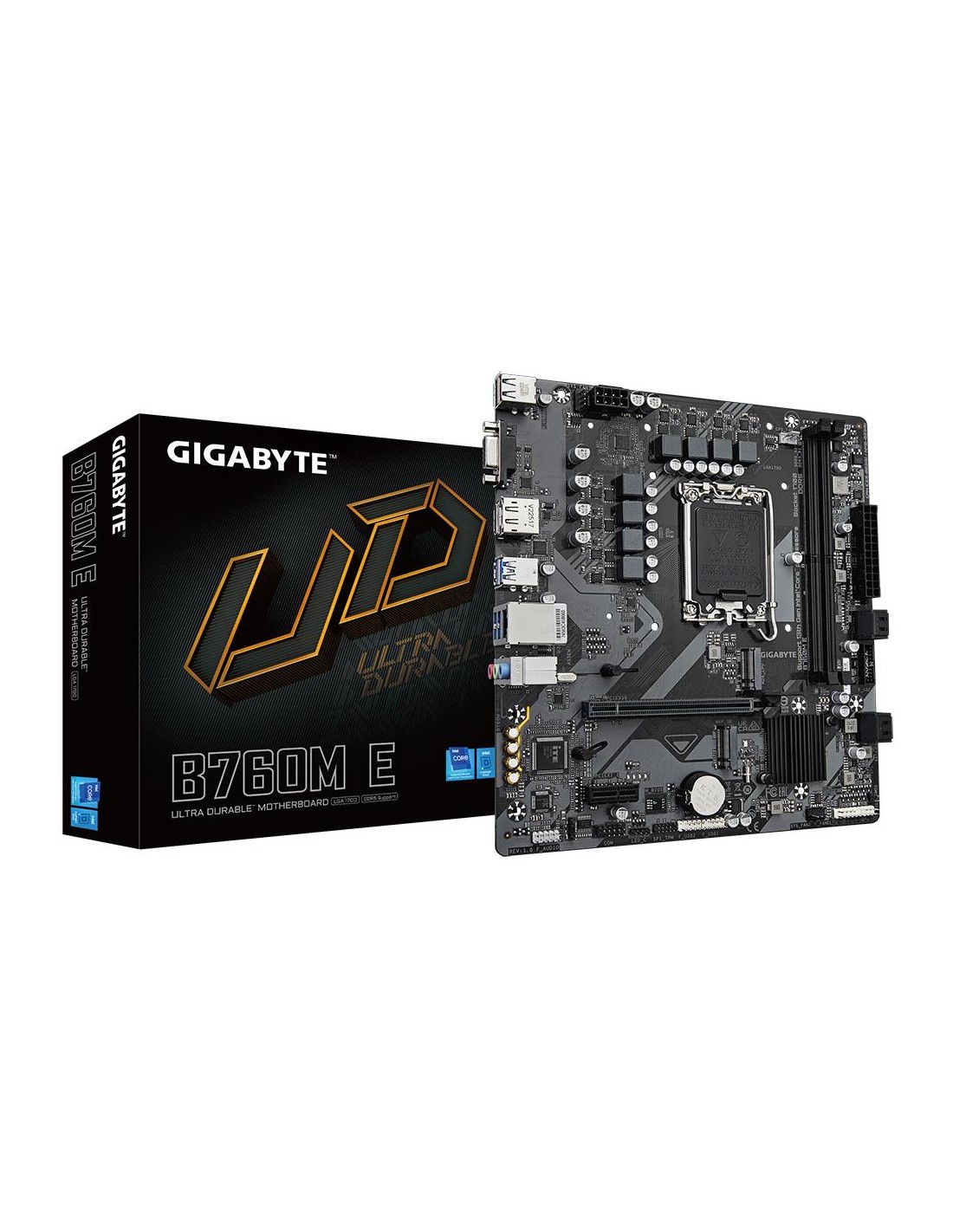

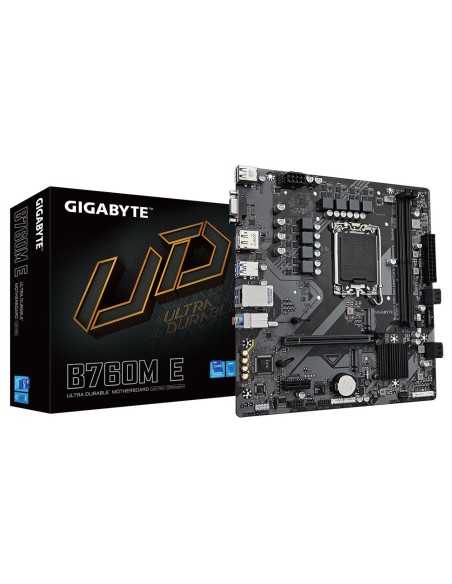

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|B760ME1.0

Kodas B760M E 1.0

Yra sandėlyje

92,63 €

Nėra mokesčio

B760M E (rev. 1.0)

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
Dual Channel DDR5：2*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：Display Port, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Garantija: 36
Category Code: MBI
Input/Output connectors (DisplayPort): 1
Input/Output connectors (HDMI): 1
Input/Output connectors (USB 2.0): 2
Vendor Homepage: www.gigabyte.com/Motherboard/B760M-E-rev-10
Form Factor: Micro-ATX
Frequency speed: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Memory type: DDR5
Model: B760M E 1.0
Socket: LGA1700
Unit Box Height: 0.055
Unit Box Length: 0.27
Unit Box Width: 0.265
Input/Output connectors (USB 3.2): 4
Input/Output connectors (RJ45): 1
Input/Output connectors (Audio port): 3
Input/Output connectors (15pin D-sub): 1
Interface (SATA): Yes
Memory slots: 2
Integrated LAN: Gigabit
Chipset: Intel B760 Express
Integrated video: Depending on CPU
Expansion slots (M.2): 2
Expansion slots (PCI-Express 3.0 1x): 1
Expansion slots (PCI-Express 4.0 16x): 1
Integrated audio: Yes
RAID: SATA 0, 1, 5, 10
TPM: Header
Units per Shipping Box: 10
Unit Calculated Volume: 0.004628 cubm
Product Net Weight: 0.7 kg
Unit Calculated Weight: 0.85 kg

ean13 889523038659
