Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|3xM.

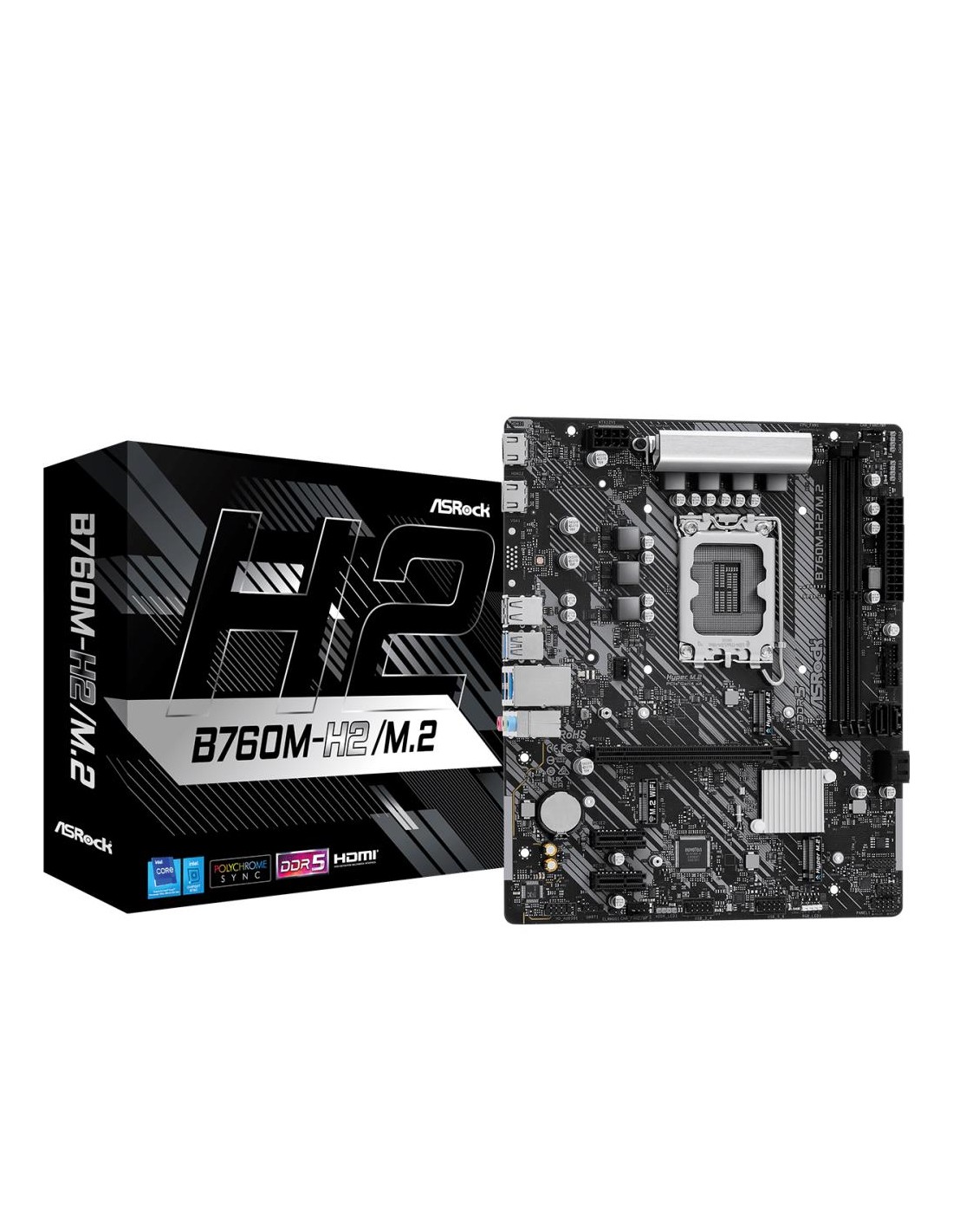

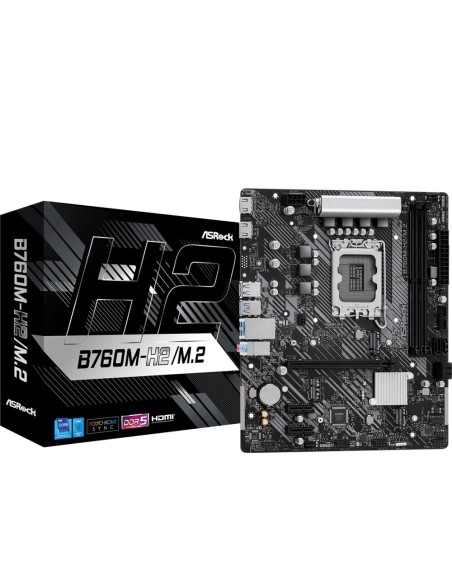

B760M-H2/M.2
Yra sandėlyje
88,16 €
Nėra mokesčio
Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 7200 MHz | Memory slots 2 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header
B760M-H2/M.2
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR5 7200+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
- 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (HDMI)
- 2
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.asrock.com/MB/Intel/B760M-H2M.2/index.asp
- Form Factor
- Micro-ATX
- Interface (SATA 3.0)
- Yes
- Frequency speed
- 7200 MHz
- Memory type
- DDR5
- Model
- B760M-H2/M.2
- Socket
- LGA1700
- Unit Box Height
- 0.24
- Unit Box Length
- 0.275
- Unit Box Width
- 0.065
- Interface (USB 2.0)
- Yes
- Input/Output connectors (USB 3.2)
- 4
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Audio port)
- 3
- Memory slots
- 2
- Integrated LAN
- 2.5 Gigabit
- Chipset
- Intel B760 Express
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 3
- Expansion slots (PCI-Express 3.0 1x)
- 2
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Integrated audio
- Realtek ALC897
- RAID
- SATA 0, 1, 5, 10
- TPM
- Header
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004299 cubm
- Product Net Weight
- 0.5 kg
- Unit Calculated Weight
- 0.862 kg
- CnCode
- 84733020
4710483944215
