Mainboard|ASROCK|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1x

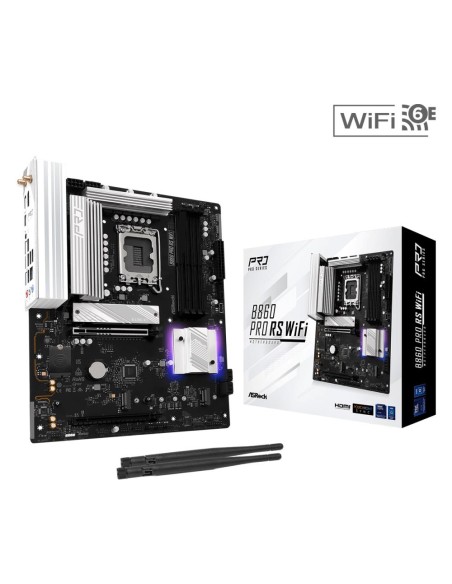

B860 PRO RS WIFI
Yra sandėlyje
162,29 €
Nėra mokesčio
DDR5 | 8666 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
8 USB 3.2 Gen1 (6 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, M.2 Bottom Heatsink
- Garantija
- 36
- Category Code
- MBI
- Input/Output connectors (DisplayPort)
- 1
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (USB 2.0)
- 2
- Vendor Homepage
- www.asrock.com/MB/Intel/B860%20Pro%20RS%20WiFi/index.asp
- Interface (SATA 3.0)
- Yes
- Frequency speed
- 8666 MHz
- Memory type
- DDR5
- Model
- B860 Pro RS WiFi
- Unit Box Height
- 0.075
- Unit Box Length
- 0.35
- Unit Box Width
- 0.28
- Input/Output connectors (USB-C)
- 1
- Interface (Bluetooth)
- Yes
- Interface (USB 2.0)
- Yes
- Interface (USB-C)
- Yes
- Input/Output connectors (USB 3.2)
- 6
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (Microphone)
- 1
- Interface (SATA)
- Yes
- Memory slots
- 4
- Integrated LAN
- 2.5 Gigabit
- Input/Output connectors (Audio-In)
- 1
- Interface (USB 3.2)
- Yes
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 1
- Expansion slots (PCI-Express 4.0 16x)
- 1
- Integrated audio
- Realtek ALC897
- RAID
- SATA 0, 1, 5, 10
- TPM
- Header
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Interface (WiFi)
- Yes
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.008784 cubm
- Product Net Weight
- 1.3 kg
- Unit Calculated Weight
- 1.97 kg
- CnCode
- 84733020
4711581490239
